Customizable CCD industrial camera low angle detection dome lighting machine

Dongguan Yijiaming Technology Co., Ltd., established in June 2020, is a manufacturer specializing in the research and development, design, and production of machine vision light sources. In machine vision, the company provides visual defect services for numerous large-scale projects. The company mainly produces circular light sources, shadowless light sources, AOI light sources, spherical integration light sources, strip light sources, strip combination light sources, coaxial light sources, side light sources, surface light sources, backlight light sources, point light sources, prisms Linear light sources, analog controllers, digital controllers, linear light controllers, and other products can be customized according to the situation.

Product features:

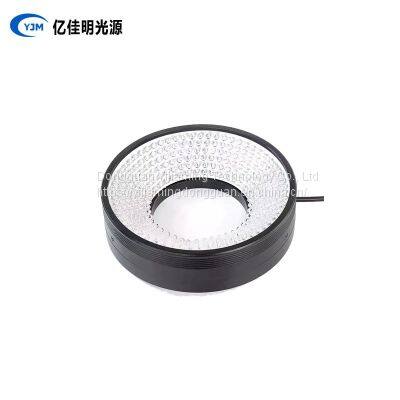

The circular light source is composed of a high brightness LED array designed through structural optimization, with stable performance and convenient installation. Directly applying different illumination angles and color combinations to the tested object can avoid the phenomenon of shadow exposure,

Detailed description: This product has the advantages of low heat generation, soft and natural lighting without flicker, no distortion of light color, long service life, energy conservation, compact and beautiful appearance, easy installation, etc. It uses a new imported plastic injection molded power shell, which is aging resistant, flame retardant, and has anti-static treatment for the lampshade. This product has a total of 96 LEDs evenly distributed on three circles

Product parameters:

Ring light power supply housing size: (length 110 X width 60 X height 32) mm

Outer diameter size of circular lamp cover: Φ 68mm

Inner diameter size of circular lamp cover: Φ 50mm

Thickness dimension of circular lamp cover: 35mm

Ring lamp power: 4W

Input voltage: 90V-264V

Output voltage: DC12V

Brightness adjustment: 0-100

Brightness: 100mm

Above 15000LUX in height

Working distance: 30-250mm

LED light emitting tubes: 96 pieces

Luminous color: determined according to user needs, conventional white light 6400K

Application scope:

● Detect printed characters on the IC chip;

● Detect components on the circuit board;

● Check the bottom of the pigment container;

● Detection labels;

● Detection of markings on liquid crystal glass substrates;

● Detection of missing tablets and particle damage in board loading;

● Detection of bearing surface damage, etc;

We can customize circular light sources with different specifications, sizes, and colors according to customer requirements.
