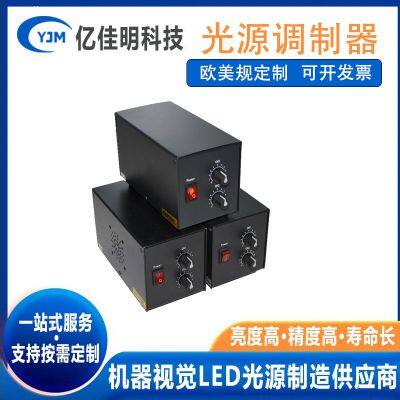

Visual light source controller, one output, one detection dedicated dimming controller, single channel

Dongguan Yijiaming Technology Co., Ltd., established in June 2020, is a manufacturer specializing in the research and development, design, and production of machine vision light sources. In machine vision, the company provides visual defect services for numerous large-scale projects. The company mainly produces circular light sources, shadowless light sources, AOI light sources, spherical integration light sources, strip light sources, strip combination light sources, coaxial light sources, side light sources, surface light sources, backlight light sources, point light sources, prisms Linear light sources, analog controllers, digital controllers, linear light controllers, and other products can be customized according to the situation.

Four sided adjustable LED light source model and specifications

Model Specification Power Specification Power Specification Description

FH-FBL4080W 12V/160mA * 4 24V/80mA * 4 External dimensions Inner diameter: 58 * 58 (mm) Outer diameter 104 * 104 (mm) Color: R/B/W/P/O/Y/IR

FH-FBL8080W 12V/320mA * 4 24V/160mA * 4 Boundary dimensions Inner diameter: 98 * 98 (mm) Outer diameter 150 * 150 (mm) Color: R/B/W/P/O/Y/IR

Note ①: R is red, B is blue, W is white, P is purple, O is orange, Y is yellow, and IR is infrared. There are 850 and 940

It's the unit price of four long strip light sources * 4+180 yuan for a shelf

All strip light sources can be made like this

Product features:

1. Composed of four sets of strip lights, shining from all sides;

2. Each group of angles can be freely adjusted, with wide applicability;

3. Each group of brightness can be independently controlled;

4. The aluminum shell is efficient in heat dissipation and has a long service life.

Application field:

1. PCB substrate and IC component inspection and soldering inspection;

2. Packaging barcode and spherical object lighting;

3. Mark point positioning;

4. Microscope illumination.
