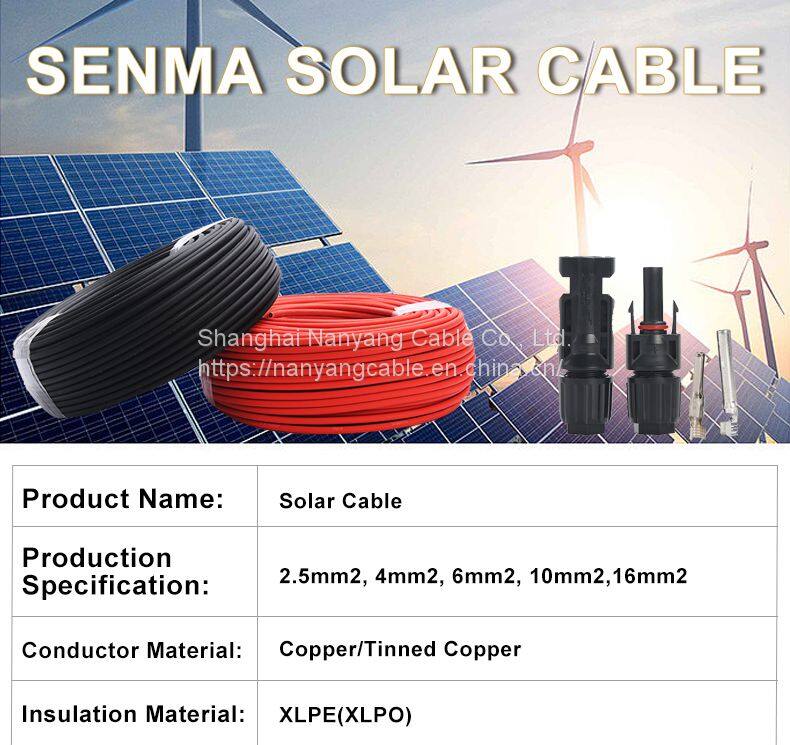

Solar Photovoltaic (PV) Wire Cable 600V Solar Power Cable

TUV Single Core PV1-F Solar Photovoltaic Cable ManufacturerProduct Introduction

2PfG Photovoltaic Wire & Solar Power Cables TUV Approval

Solar Photovoltaic (PV) Wire Cable 600V Solar Power Cable

2PFG1169 standard for PV1-F 1 * 4 photovoltaic cables

Used for wiring and connection of solar power plants or facilities and equipment

Cross linked low smoke halogen-free flame retardant polyolefin double layer insulation

Product Introduction

PV1-F 1 × 4 Photovoltaic cables 2PfG 1169 standard

PV1-F SOLER CABLE

● Used for wiring and connection of solar power plants or facilities, equipment

Crosslinked low smoke halogen-free flame retardant polyolefin double layer insulation

Five types of stranded tinned copper wire

Maximum working temperature of conductor: 120 ℃

Product Characteristics

Low smoke, halogen-free, flame retardant, UV resistant, ozone resistant, weather resistant, anti-aging.

Product model:

PV1-F solar photovoltaic cable

Application standards:

2PFG-1169/08.2007

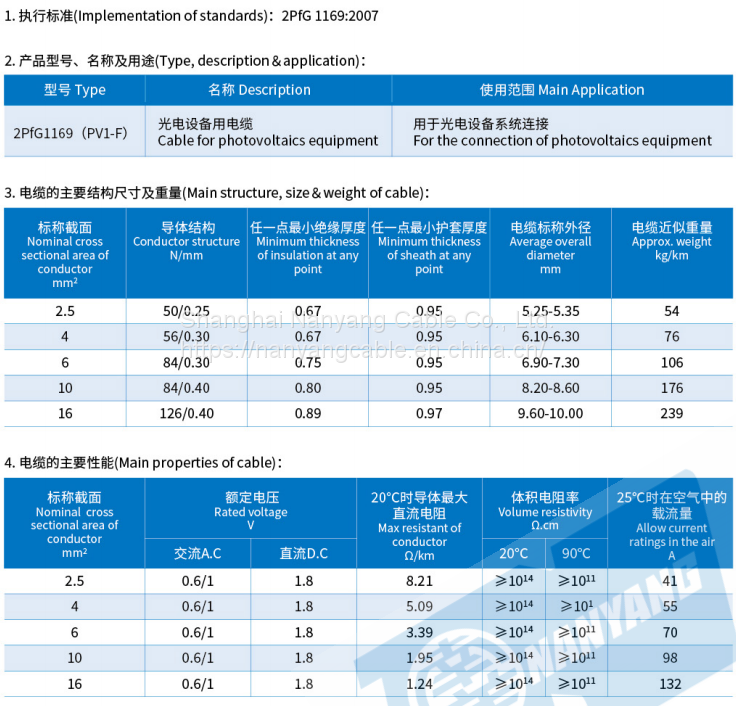

Cable Structure

Conductor: Class 5 stranded tinned copper wire conductor

Insulation: cross-linked low smoke halogen-free flame retardant polyolefin

Sheath: cross-linked low smoke halogen-free flame retardant polyolefin

Colors: black, red, black and white

Rated voltage: AC 0.6/1kV; DC Max 1.8kV

Temperature range: -40 ℃~+90 ℃

Maximum working temperature of conductor: 120 ℃
