Product Details

NSGAFOU 1.8/3KV rubber sheathed European standard cable

NSGAFOU 1.8/3KV rubber-sheathed Eurocable: short-circuit-proof cables for railway and public transport vehicles as well as for use in dry rooms.

The cables with a rated voltage of more than 1,7/3 kV are short-circuit and earth-short-circuit proof in switchgear and distributors up to 1000 V.

The cables are available in a wide range of sizes, from 1,7/3 kV to 1,8/3 kV.

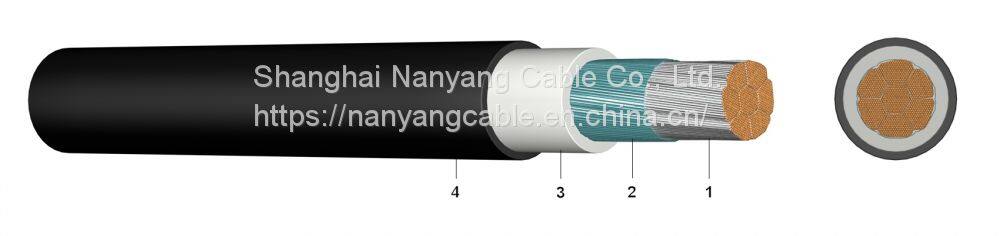

European standard rubber cable construction.

Tinned copper wire multi-stranded fine stranded, rubber insulation. Rubber sheath, oil resistant and flame retardant (according to VDE 0482,

part 265-2-1, corresponding to EN and IEC 60332-1). Sheath colour black NSGAFOU rubber cable.

Technical data.

1. Rated voltage:1,8/3 kV

peal test voltage:6000V

3. Conductor stranding: pure copper stranded; in accordance with VDE 0295, category 5 standard

4. Temperature range: fixed installation: -40°C to +80°C

Mobile installation: -25°C to +80°C

5. Bend radius: Fixed installation: 6x cable diameter Mobile installation: 10x cable diameter

6.Conformity:Conformity to DIN VDE 0250, part 602 standard (design) NSGAFOU, rubber sheathed cables, European standard rubber cables,

VDE approved rubber cables
