Cooper Rope Strander Equipment Bearing Z-531636.ZL

Cooper rope strander equipment bearing Z-531636.ZL

cylindrical roller bearing Z-531636.ZL with a single rib on one side of the outer rings and a single rib on the other side can withstand a certain degree of axial load in one direction. They will need to lathe process, heat treatment process and grinding process to finish themSteel stamping cages or copper alloy solid cages are generally used.

Bearing description: cylindrical roller bearing

Row number:one row

Bearing factory items:Z-531636.ZL

Special Bearing type: 531636

The special bearing z-527458.zl for tubular stranding machines running at high speeds have increased accuracy to tolerance class P6 or P5.

Bearing boundary Dimension:

Standard size,offer drawing to confirm

ID(inner diameter)/Bore:

Standard size,offer drawing to confirm

OD(outer diameter):

Standard size,offer drawing to confirm

Width/Height/thickness:

Standard size,offer drawing to confirm

Clearance:C3 C0 available

Quality standard:GB307 Rolling bearing technical requirement

Outer Ring and Inner Ring heat treatment:HRC55-62

The heat treatment is queching heat treatment

Feature:Quiet operations, Low noise

ISO standard interchangeable dimensions

The seaport name:Shanghai or Tianjin or qingdao seaport

HS code:8482500090

Payment term:T/T or L/C at sight

Lubrication:Oil or Grease oil hole and oil groove in the outer ring

Outer Ring material:GCr15SiMn code

Inner Ring material:Steel GCr15SiMn

Roller shape:cylindrical roller

Basic dynamic load rating, Radial Cr:290KN

Basic static load rating, Radial Cor：550KN

Bearing weight:19KGS

The bearing manufacture time:60 days

Service:offer drawing and technical support

Shipping term By sea or by air

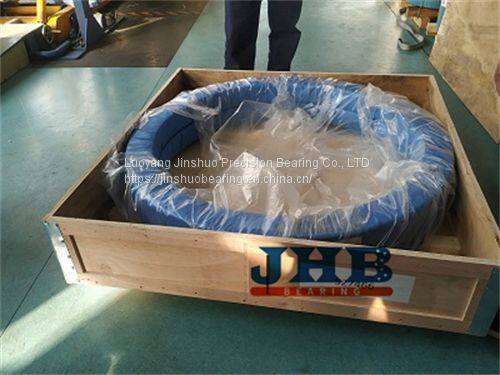

Bearing package:strong wooden case
