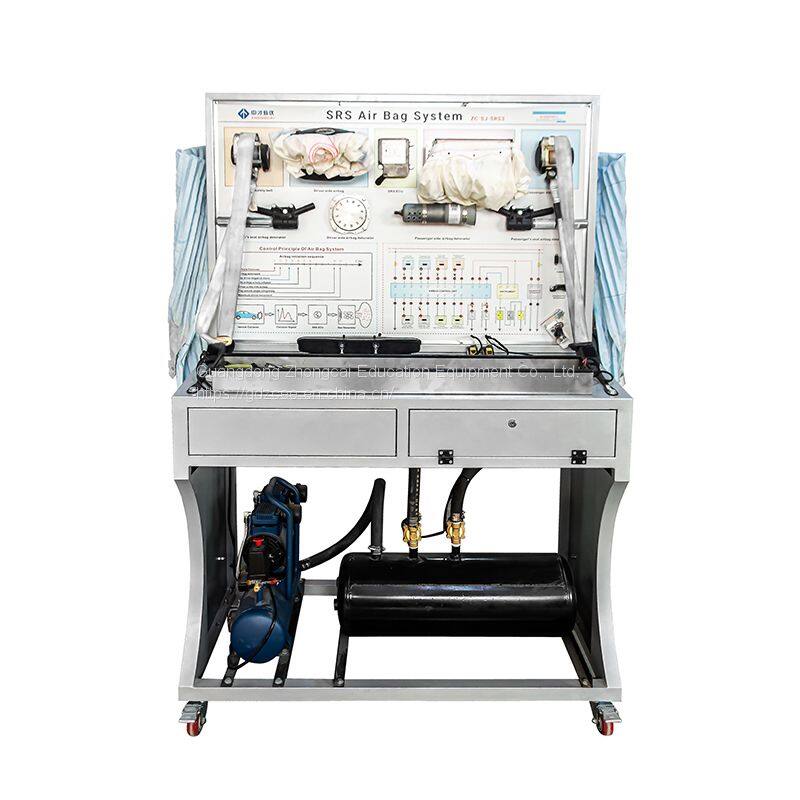

Volkswagen Passat Airbag System Teaching Board

Product introduction

1)Adopt the car airbag and seat belt tightener system as the basis, fully display the composition structure and working process of the car airbag and seat belt tightener system.

2)The teaching board of automobile airbag and seat belt tightener system is suitable for teaching needs of theory and maintenance practical training of automobile airbag and seat belt tightener system in school.

2. Functional characteristics

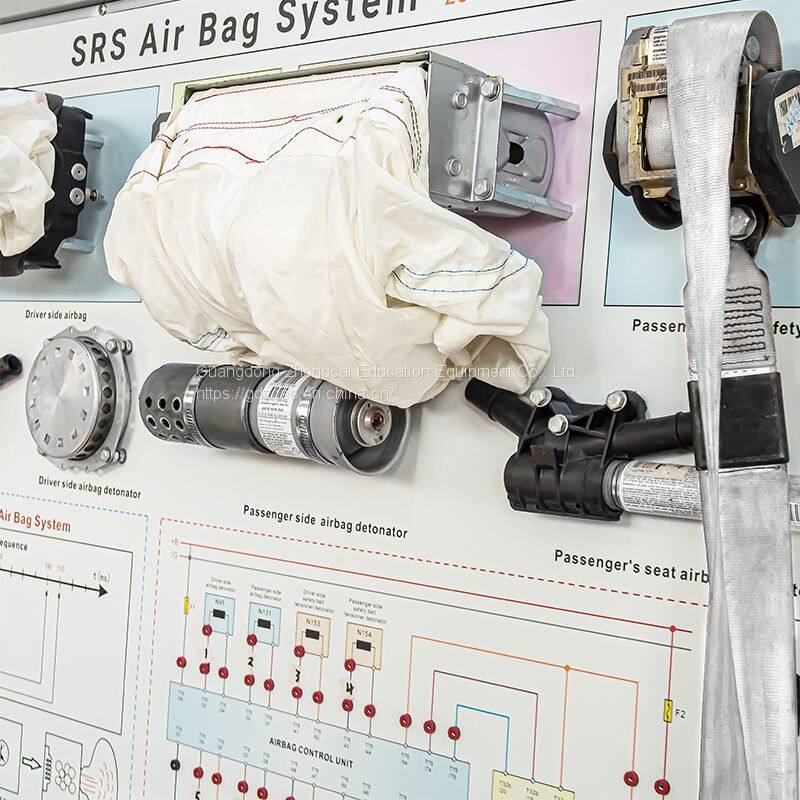

1)The stand is equipped with a functional car safety system SRS that includes four air bags, crash sensors, mechanism of air bag steering wheel module and spiral cable, front seat belts with igniters and tensioners, rear seat belts and two control units.

2) Manipulate the collision trolley, simulate the car collision process, left and right simulation airbag rapid inflation and expansion, real demonstration of the work process of the car airbag system.

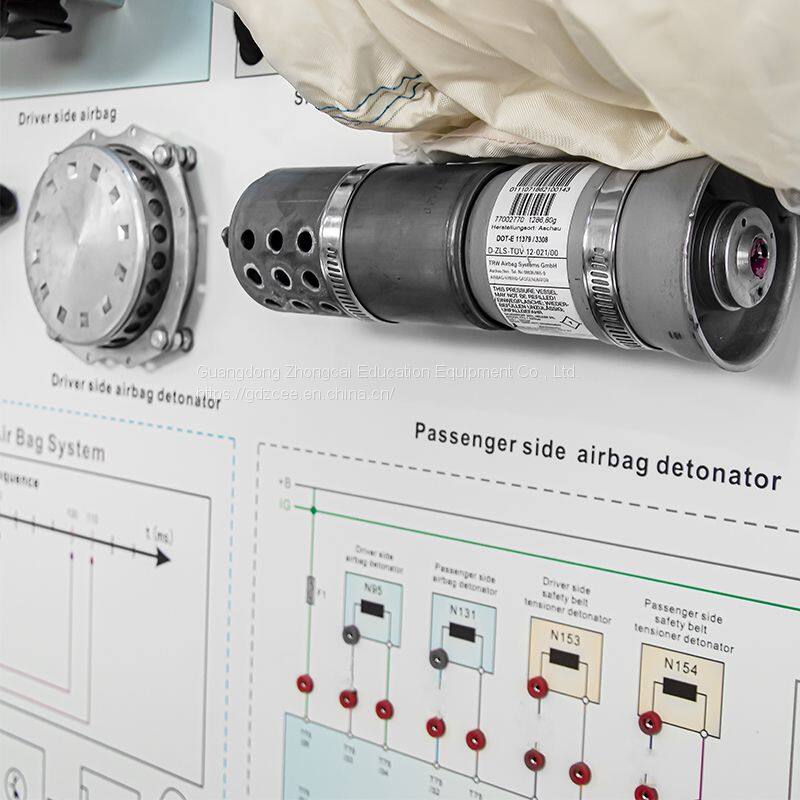

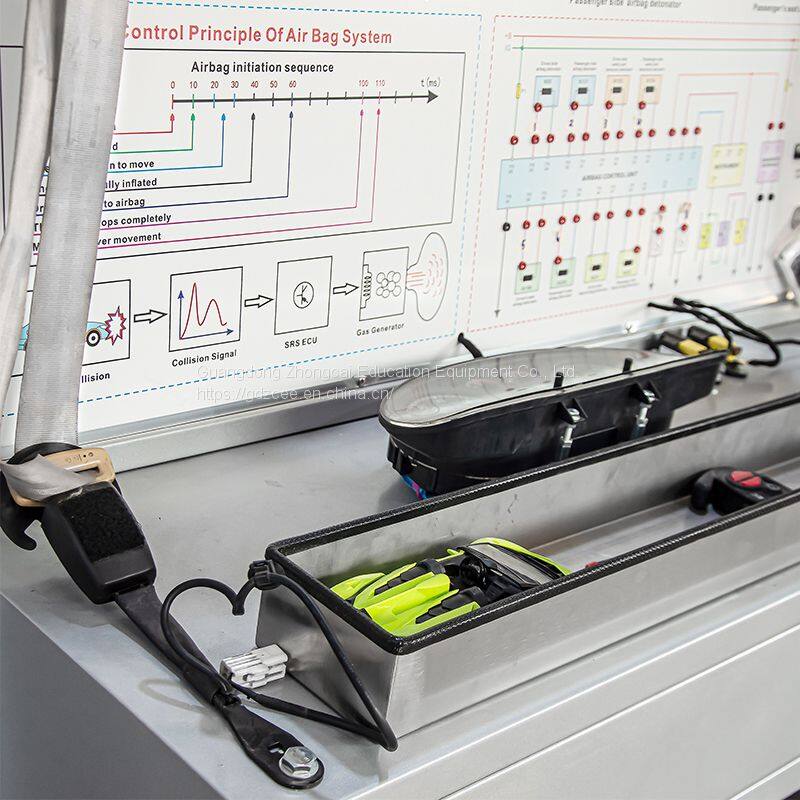

3)The panel of the teaching board adopts 4mm thick corrosion-resistant, trauma-resistant, pollution-resistant, fireproof and moisture-proof senior aluminum plastic board, and the surface is treated by special process of spraying primer; the panel is printed with colorful circuit diagrams that never fade; the students can intuitively compare the circuit diagrams and the physical objects to recognize and analyze the working principle of the automobile airbag system.

4) There are detection terminals installed on the panel of the teaching board, which can directly detect the electrical signals of each circuit component of the airbag system, such as resistance, voltage, current, frequency signal, etc. on the panel.

5) There is a diagnostic socket installed on the panel of the teaching board, which can be connected with special or general-purpose auto decoder to read fault codes, clear fault codes and other self-diagnostic functions for airbag control unit.

6)The panel part of the teaching board adopts 1.5mm cold plate stamping and forming structure, with beautiful appearance; the bottom frame part adopts steel structure welding, the surface adopts spraying process treatment, with self-locking castor device, moving flexible, safe, reliable, solid and durable.

7) The work of the teaching board using ordinary 220V AC power supply, converted into 12V DC power supply by internal circuit voltage rectification, no battery, reducing the trouble of charging, 12V DC power supply with anti-short circuit function.

8) Configured with fault insertion, evaluation, and data acquisition system.

9)Training board is integrated with two safety system control units. one functional one with diagnostic possibilities, second one after activation, with recorded crash data.

3. Technical specifications

  Dimension (L×W×H): 1600×800×1700mm

  External power supply: AC 220V±10% 50Hz

  Working voltage: DC 12V

  Operating temperature: -40℃～+50℃

  Color：7032

  Steel tube: 40*40*3mm

  Cabinet: 1.5mm cold plate stamping and forming.

  Mobile casters: 100*60mm
