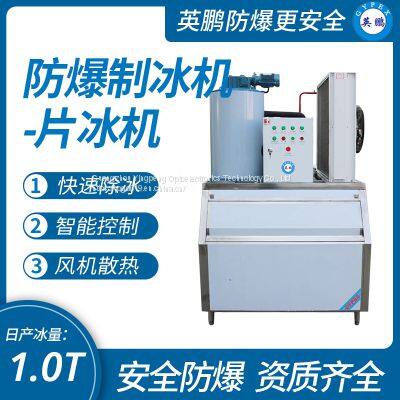

Gansu Yingpeng Aerospace Explosion-proof Ice Machine, with a daily output of 1000 kilograms

This product can be customized non-standard. For more models, please consult customer service!

1、 Product parameters

Model: BL-400EX1000

Ice production (kg/24h): 1000

Ice storage capacity (kg): 400

Refrigeration capacity (kcal/h): 5603

Total power (kW): 4.3

Evaporation temperature: -22 ℃

Power supply: 3P/380V/50Hz

Refrigerant: R22/R404A

Cooling method: air cooling

Weight (excluding freezer): 320kg

Unit size L * W * H (mm): 1270 * 900 * 1000

Size of ice storage cabinet (warehouse) L * W * H (mm): 1100 * 1140 * 1050

Explosion proof grade: Ex d ib mb IIC T4 Gb

Standard operating conditions of explosion-proof ice machine:

1. The ambient temperature is 25 ℃, and the water temperature is 25 ℃

2. Water supply pressure: 0.15~0.5Mpa, pipe diameter 1/2 ″

3. Cold capacity working condition: condensation temperature is 40 degrees Celsius, evaporation temperature is -22 degrees Celsius

4. Ice thickness: 1.5-3.0mm, ice temperature: -8 degrees Celsius

model

BL-400EX200 BL-400EX300 BL-400EX400 BL-400EX500 BL-400EX800 BL-400EX1000 BL-400EX1500 BL-400EX2T

Ice production (kg/24h) 200 300 400 500 800 1000 1500 2000

Ice storage capacity (kg) 150 150 150 300 400 450 600

Refrigeration capacity (kcal/h) 1120

1680 2200 2801 4480 5603

8405 11206

Evaporation temperature -22 ℃

Total power (kW) 1.6

1.7 2 2.6 4 4.3 6.6 8.6

Power supply 1P/220V/50Hz 3N/380V/50Hz

Refrigerant R22/R404A

Cooling method: air cooling

Weight (excluding freezer)

one hundred and seventy

180 200 240 300 320 380 560

Unit size

Length * Width * Height (mm)

1020*740*650

1020*740*650 1020*740*680 1100*750*800 1100*750*950 1270*900*1000 1270*970*1120 1500*1100*1150

Dimensions of ice storage cabinets (warehouses)

Length * Width * Height (mm)

1020*970*900 1020*970*900 1020*970*900 1100*970*900 1100*970*900 1270*1140*1050 1270*1290*1050 1500*1500*1300

2、 Application field of Yingpeng ice machine:

Widely used in industries such as water conservancy and hydropower, chemical cooling, biopharmaceuticals, scientific research experiments, mine cooling and freezing, concrete mixing, ocean fishing, preservation and transportation of meat, vegetables and fruits, and fresh food processing; Ice sheets have no sharp edges and corners, and will not puncture frozen objects. It can enter the gap between the cooled objects, reduce heat exchange, maintain the temperature of the ice, and have a good moisturizing effect. It has the characteristics of large cooling capacity and fast cooling speed.

3、 Advantages of Yingpeng Ice Machine:

1: Evaporator: The evaporator of the ice maker adopts a fixed and stationary vertical design, which is an internal scraping ice making device. The evaporator does not move, and the ice knife rotates on the inner wall to scrape the ice. This design reduces wear, has high sealing performance, and effectively prevents refrigerant leakage. We use high-quality 304 stainless steel material and fully automatic fluorine welding technology to comprehensively improve its strength and accuracy.

2: Ice cutter: Spiral roller cutter, with low resistance, low loss, no noise, and uniform ice production.

3: Refrigeration unit: The main components come from countries with advanced refrigeration technology such as the United States, Germany, and Japan.

4: Microcomputer intelligent control: The refrigeration and ice making systems all adopt microcomputer fully automatic control. Alarm information such as water shortage, reverse rotation, full ice, high and low pressure will be displayed on the screen. Effectively preventing abnormal operation and reducing machine damage rate.

5: It can be widely used in hazardous areas within Zone 1 (or Zone 2) of explosive gas mixtures with Class IIB, IIC, temperature group T4 in petroleum, chemical, pharmaceutical, laboratory, storage and other departments. The ice maker adopts integrated explosion-proof technology and is designed with explosion-proof systems according to industrial environmental requirements.

The entire machine adopts ultra weak current technology to isolate intrinsically reliable circuits. After special manufacturing processes and explosion-proof treatment, the design and manufacturing of the product strictly follow the relevant national standards:

GB 3836.1-2000 "Electrical Equipment for Explosive Gas Atmospheres - Part 1: General Requirements"

GB 3836.2-2000 "Electrical Equipment for Explosive Gas Atmospheres - Part 2: Flameproof Type" d "

GB 3836.3-2000 "Electrical Equipment for Explosive Gas Atmospheres - Part 3: Increased Safety" e "

GB 3836.4-2000 "Electrical Equipment for Explosive Gas Atmospheres - Part 4: Intrinsically Safe" i "

GB 3836.9-2006 "Electrical Equipment for Explosive Gas Atmospheres - Part 9: Encapsulated" m "
