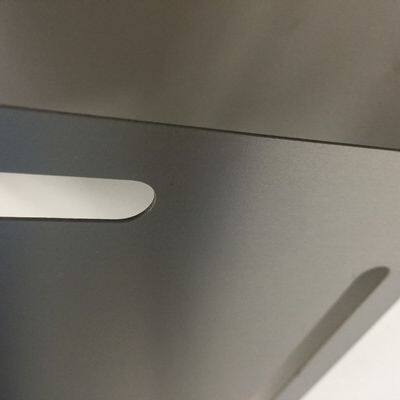

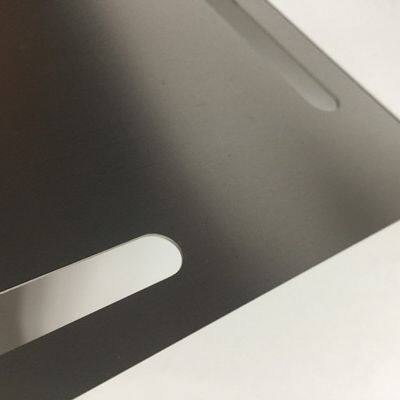

DSA titanium electrode for watertreatment

Product Introduction

Titanium electrode is a kind of electrode that uses metal titanium as the substrate and finally forms an oxide coating with electrocatalytic activity on the titanium substrate by sintering and oxidation. It is also known as a Dimensionally Stable Anode(DSA for short) due to its physical dimension stability when in use.

Features

1. Strong corrosion resistance, durability, and high temperature resistance, high stability, can be used in various media;

2. Lower cost than pure gold and pure platinum anodes, but has similar electrochemical performance;

3. The overpotential for the oxygen evolution reaction is very high, and the overpotential for the hydrogen evolution reaction is very low;

4. It is appropriate for DSA insoluble anodes and has the properties of high output current density, uniform conduction, and low loss.

The preparation methods of titanium electrodes are as follows:

Thermochemical decay

The thermal decomposition process typically involves dissolving metal salt compounds in organic solvents or aqueous solutions, coating the solution on a titanium substrate, heating to volatilize the solvent, and then sintering at a high temperature to decompose and oxidize the salts to produce an oxide coating. Coating techniques include rolling, brushing, and spraying.

Sol-gel technique

In the sol-gel process, metal organic compounds (such as metal alkoxides) or inorganic compounds are dissolved in a solvent to produce active monomers, which are then polymerized to form sol and coated on the titanium substrate. The film is sintered at a specific temperature after being dried to create a gel film in order to provide a coating.

Electrodeposition

Coated titanium electrodes are created using the electrodeposition process. Typically, a titanium cathode is used as opposed to an insoluble electrode as an anode. The appropriate metal ions are present in the solution during electrolysis, which is then deposited on the titanium cathode. following drying, high temperature: The coated titanium electrode is produced by sintering.

Sputtering process

The sputtering process produces a dense coating that has a powerful bonding force with the substrate. However, this approach is unsuitable for industrialized large-scale manufacturing because it necessitates the use of specialized equipment, the preparation procedure is very challenging, and the mother liquor is squandered considerably.

Package and Shipment

1. Sintered Filters are usually packed in cartons, wrapped in soft film, and fixed in a box filled with industrial foam cotton, and the outer baler is packed with plastic bags with no damage during transportation.

2. Wooden box export packaging can also be customized. The foam cotton can be filled and fixed, the external box is sealed, the bottom is specified, the whole packaging is processed, and the goods can be delivered to the designated place of the customer without damage.
