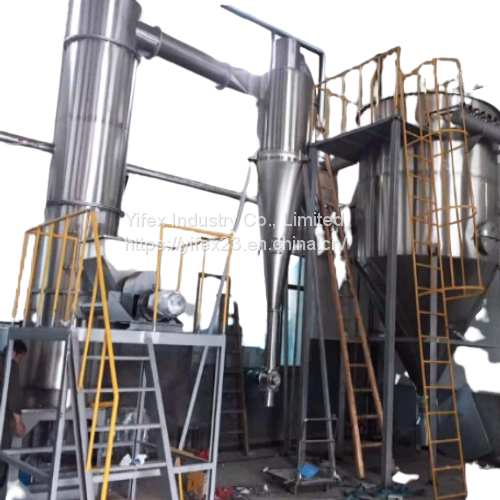

XSG Series Spin Flash Dryer

XSG Series Spin Flash Dryer

Descriptions

XSG series revolving flash vaporization dryer is a new-type dry equipment developed and introduced by our company, by absorbing the advanced technology abroad. This machine is with modern techniques, the design is rational, the structure is compact, suitable and in extensive range, production capacity is big, the products are of high quality, with high efficiency, low energy. The drying, crushing, sieving can be completed in one equipment, dispelling the environmental pollution, the performance of the complete machine reaches the advanced technology of the world.

Principle

Hot air enters into stirring and crushing and drying chamber from the bottom of dryer with suitable atomizing speed. It exerts strong, shearing, blowing. floating and rotating effect to raw material. Therefore raw material is granulated through centrifugating, shearing, impacting and friction effect. It strengthens the process of heat exchange. At the bottom of dryer, the large and damp granule is crushed under the action of stirrer and the granule that is small in partical and contain less moisture will lift accompainied with revolving air stream. During the period of lift, it is dried further. Because gas and soild two phases flow in heat exchange, so the machine as strong drying capacity.

Features

Many kinds of feeding equipment for choosing, and feeding is continue and static.

Set up the special cooling device in the dryer bottom, has prevented raw material to turn carbonized and chang color in the high temperature district of the bottom.

Special atmospheric pressure seal installation and bearing cool the device, the service life of the running part is extended effectively.

Special points of wind device, has reduced the obstruction of the equipment, and has offered the wind amount of treatment of the dryer effectively.

Dry room equip with hierarchical ring and swirl slice, supplies detailed degree and final moisture content adjustable. (Such as calcium carbonate the final moisture can adjust to less than 0.1%

Compared to other dry methods, it can increase the specific gravity of raw material effectively.

Because gas speed at circle inside the drying chamber is high, the staying time of raw material is short, it prevents the materials stay on the wall of the dyer chamber and the material turn deteriorate effectively, reach high-efficient, fast, little equipment, great production.

Material

Inorganic: boric acid, calcium carbonate, hydroxide, copper sulphate, iron oxide, carbonic acid barium, antimony trioxide, various kinds of metal caustics, various kinds of heavy metal salt, formating the ice crystal, etc.

Organic: Atrazine (agriculture chemical insecticide), cadmium laurate, benzoic acid, monosultap sodium oxalate, cellulose acetate Pottery: Kaolin, oxidizing silicon, clay.

The dyestuffs: Anthracene quinone, black iron oxide rust, indigo pigment, butyric acid, hydrogen oxidize the titanium, zinc sulfide, various kinds of azo dyes intermedia .

Food: Soy protein, gelatinized starch, distiller's grains, wheat candy, wheat starch .

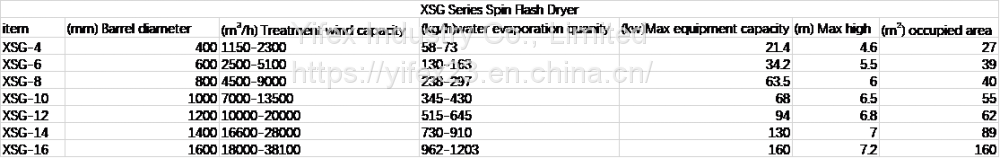

Technical parameters

As different country ,the shipping cost is not same, so,after you chosen the products,
please tell us the model,quantity and your country .
We will help you calculate the machine price and shipping cost ,Our Email: info@yifex.com
