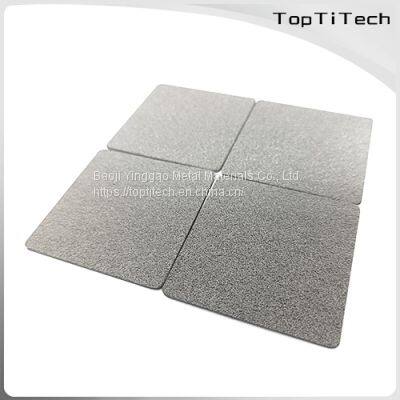

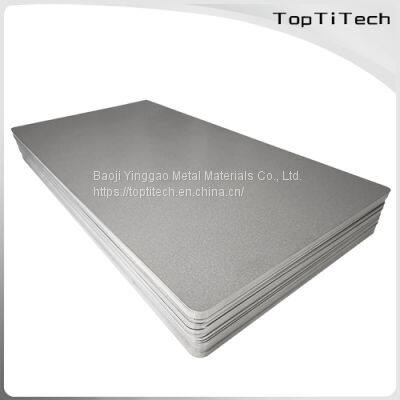

New Energy PEM Hydrogen Production Porous Titanium Plate

New Energy PEM Hydrogen Production Porous Titanium Plate

The raw material of the porous titanium plate for hydrogen production by PEM water electrolysis is pure titanium powder, which is formed by pressing the mold and sintered at high temperature in vacuum.

Hydrogen production by water electrolysis is a new energy pillar sunrise industry. The micropore diameter of the porous titanium plate is used to fully react with the medium to produce hydrogen energy. The surface is coated to prevent oxidation and increase the efficiency of hydrogen production. Porous titanium plates are widely used in hydrogen energy, petrochemical, and pharmaceutical filtration, with obvious advantages, and are indispensable products.

Product Parameters

Filtration accuracy: 0.5um-50um

Porosity: 30-40%

Permeability: 3-800m³/m²hkPa

Compressive strength: 2-3Mpa

Temperature resistance: 300℃

Maximum working pressure difference: 0.6Mpa

Features

1. Strong temperature resistance, typical application at temperatures below 300 °C;High filtration precision, stable pores, can effectively remove suspended solids and particles, etc., and the purification effect is good;

2. Good air permeability and low pressure loss. High porosity, uniform pore size, low initial resistance;

3. Easy to blow back, can be regenerated online, easy to clean, strong regeneration ability, long service life;

4. High mechanical strength, good rigidity, good plasticity, no need for additional skeleton support protection, easy to install and use;

5. Easy maintenance, good assembly, can be welded, bonded and machined;

6. Uniform pores, especially suitable for occasions requiring high uniformity such as fluid distribution and homogenization treatment;

7. Good corrosion resistance, can be used in nitric acid, sulfuric acid, acetic acid, oxalic acid, phosphoric acid, 5% hydrochloric acid, molten sodium. Stable use in liquid hydrogen, liquid nitrogen, hydrogen sulfide, acetylene, water vapor, hydrogen, carbon dioxide gas and other environments.

Applications

The porous titanium plate is used as the GDL (gas diffusion layer) of the anode for hydrogen production by water electrolysis in PEM water electrolysis. The pores are uniform and the porosity can be controlled at 30%-40%. Good electrical conductivity and strong corrosion resistance. It can be coated with platinum group metals to enhance its catalytic performance. The cost is relatively high, but the hydrogen production efficiency is high and the purity is high, which is suitable for industrial hydrogen production.

Every kind of filter material will be blocked, so it is very important to choose the pore size. If you choose the right pore size, you will have a good filtration efficiency, and the blocking situation will be alleviated. If the blockage is serious, regular replacement can solve this problem.
