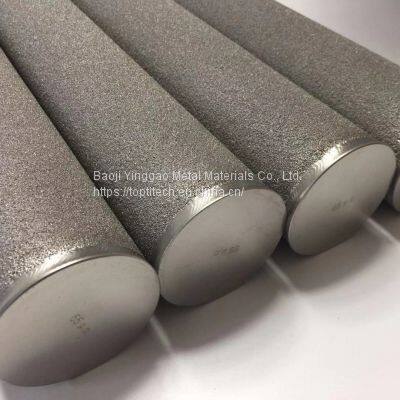

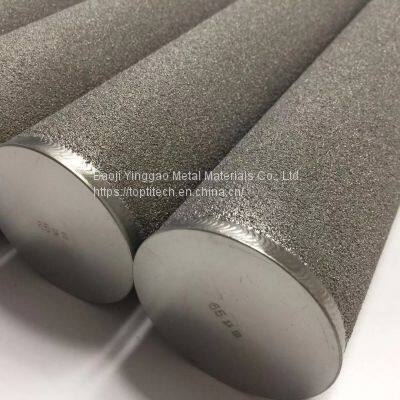

Sintered Porous Titanium Filter Cylindrical Bar

Sintered Porous Titanium Filter Cylindrical Bar

Sintered porous titanium filter cylindrical bars are unique because of their exceptional strength, durability, and resistance to corrosion. These filters are made by compressing and sintering titanium powder to form a solid tube with a precisely controlled pore structure. The resulting material is highly porous and provides excellent filtration efficiency and flow rate.

Sintered porous titanium filter cylindrical bars are designed to have a highly controlled pore structure, which allows for precise filtration of contaminants based on their size and shape.

Parameters

Material: metal titanium powder

Outer diameter: Ф10 20 30 40 50 60 mm

Length: 10” 20” 30” 40”

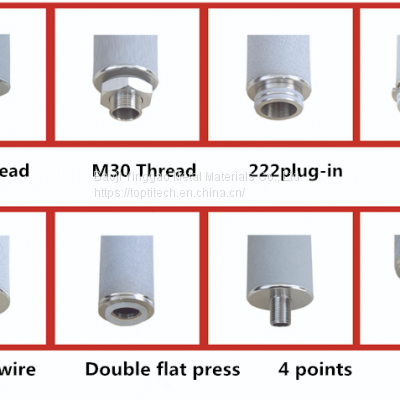

Filter connector: M20 M30 222 226

Filtration accuracy: 0.5um, 1um, 3um, 5um, 10um, 20um, 50um

Working pressure: 0.1MPa～0.6MPa

Working temperature: ≤300°

Flow rate: 0.5m3/h～200m3/h

Features

1. High efficiency: Sintered porous titanium filter cylindrical bars have a high filtration efficiency, meaning they can effectively remove particles and contaminants of various sizes and shapes.

2. High flow rate: Sintered porous titanium filter tubes can handle high flow rates without clogging, which is important in applications where a high filtration rate is required.

3. High dirt holding capacity: Sintered porous titanium filter tubes have a high dirt holding capacity, meaning they can hold a large amount of contaminants before needing to be cleaned or replaced.

Applications in harsh environment

Sintered porous titanium filter tubes can be useful in harsh environments where other filters may fail due to extreme temperatures, pressures, or corrosive substances.

For example, in the oil and gas industry, drilling operations often produce fluids that contain abrasive particles, corrosive chemicals, and high temperatures and pressures. Sintered porous titanium filter tubes can be used to filter out these contaminants and protect downstream equipment, such as pumps and valves, from damage.

In the chemical processing industry, sintered porous titanium filter tubes can be used to filter out corrosive substances and maintain the purity of chemical products. These filters can withstand the harsh chemical environments and high temperatures and pressures that are common in chemical processing applications.

Overall, sintered porous titanium filter tubes are suitable for use in a wide range of harsh environments, where they offer excellent filtration performance and durability.
