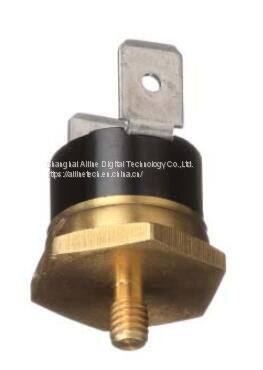

Therm-O-Disc(T-O-D) Brass Temperature Controller 36T series, 240V&120V, UL certification

The 36T Series of 1/2”bimetal temperature controls from Therm-O-Disc provides high-speed contact separation resulting in excellent life cycle characteristics at electrical loads up to 15 amps at 120VAC and 10 amps at 250VAC (100,000 cycles) and 16 amps at 250VAC (30,000 cycles).

 Agency Recognition:

36T Automatic Reset Thermostat：

UL (File E19279)------ 120VAC 15A (100,000cycles) / 240VAC 10A (100,000cycles)

CSA (File LR77886/LR109556)------ 120VAC 15A (100,000cycles) / 240VAC 10A (100,000cycles)

VDE License 118631------ 250VAC 10A (100,000cycles) / 250VAC 16A (30,000cycles) / 400VAC 10A (10,000cycles)

MITI (Japan)------ 250VAC 15A  (10000cycles)

36T Manual Reset  Circuit Breaker：

UL(File E19279)------ 120VAC 15A (6000cycles) / 240VAC 10A (6000cycles)

VDE License 118631------ 250VAC 16A (300cycles) / 400VAC 10A (300cycles)

 MITI (Japan)------ 250VAC 10A (5000cycles) / 250VAC 5A (10000cycles) / 120VAC 10A (10000cycles)

Switch Actions

The 36T is available in three single pole, single throw (SPST) switch actions:

Automatic Reset – Can be built to either open or close its contacts on temperature rise.

Manual Reset – Available with contacts that open on temperature rise. The contacts can be reset by depressing the button after the control has cooled down.

Single Operation Fuse Disc – Available with contacts that open on temperature rise, and which never reclose unless the ambient temperature drops below +32°F (0°C) or below -31°F (-35°C).

Mounting Confi gurations

M4*0.7mm Stud Mount

Types:

T-O-D 36T31，T-O-D 36T32，T-O-D 36T36；

T-O-D 36TE31，T-O-D 36TE32，T-O-D 36TE36；

T-O-D 36TH31，T-O-D 36TH32，T-O-D 36TH36；

T-O-D 36TX31，T-O-D 36TX32，T-O-D 36TX36；

T-O-D 36TXH31，T-O-D 36TXH32，T-O-D 36TXH36；

T-O-D 36TXE31，T-O-D 36TXE32，T-O-D 36TXE36；

T-O-D 36THE31，T-O-D 36THE32，T-O-D 36THE36；

T-O-D 36THXE31，T-O-D 36THXE32，T-O-D 36THXE36；

T-O-D 36TM31，T-O-D 36TM32，T-O-D 36TM36；

T-O-D 36TME31，T-O-D 36TME32，T-O-D 36TME36；

T-O-D 36TMH31，T-O-D 36TMH32，T-O-D 36TMH36；

T-O-D 36TMHE31，T-O-D 36TMHE32，T-O-D 36TMHE36；

T-O-D 36F31，T-O-D 36F34，T-O-D 36F36;

T-O-D 36FE31，T-O-D 36FE34，T-O-D 36FE36；

T-O-D 36FH26，T-O-D 36FH31，T-O-D 36FH34，T-O-D 36FH36；

T-O-D 36FX31，T-O-D 36FX34，T-O-D 36FX36；

T-O-D 36FXH31，T-O-D 36FXH34，T-O-D 36FXH36；

T-O-D 36FXE31，T-O-D 36FXE34，T-O-D 36FXE36；

T-O-D 36FHE31，T-O-D 36FHE34，T-O-D 36FHE36；

T-O-D 36FTHXE31，T-O-D 36FHXE34，T-O-D 36FHXE36；

T-O-D 36FM31，T-O-D 36FM34，T-O-D 36FM36；

T-O-D 36FME31，T-O-D 36FME34，T-O-D 36FME36；

T-O-D 36FMH31，T-O-D 36FMH34，T-O-D 36FMH36；

T-O-D 36FMHE26，T-O-D 36FMHE31，T-O-D 36FMHE34，T-O-D 36FMHE36

For Examples:

36TXE36  561569   L110C
