roduction Processes and Description of Palm Oil Processing Machine:

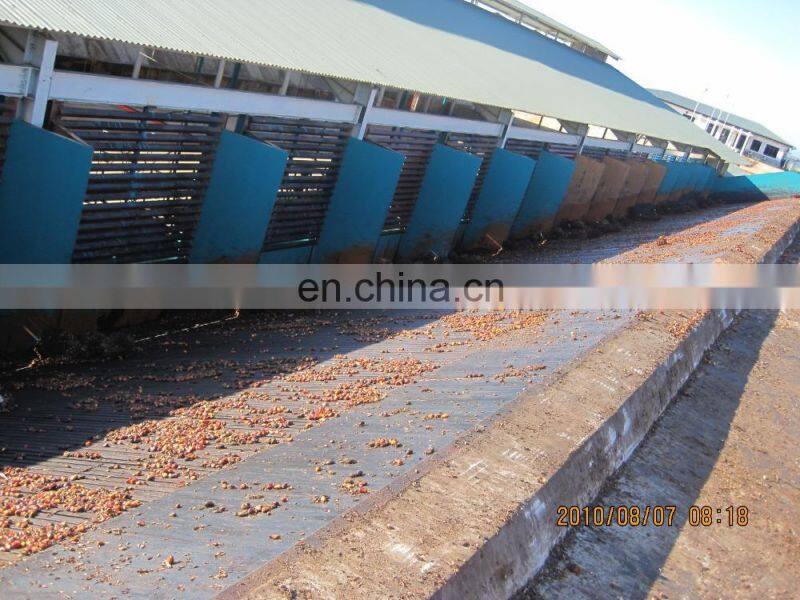

1. Palm Fruit Reception Station
The FFB gets into the factory through the weighbridge to weight the raw materials to calculate the production cost. Palm bunch reception process is finished at loading ramp. This loading ramp makes palm fruit unloading, cleaning, storage platforms, adopting all hydraulic segmented discharge.

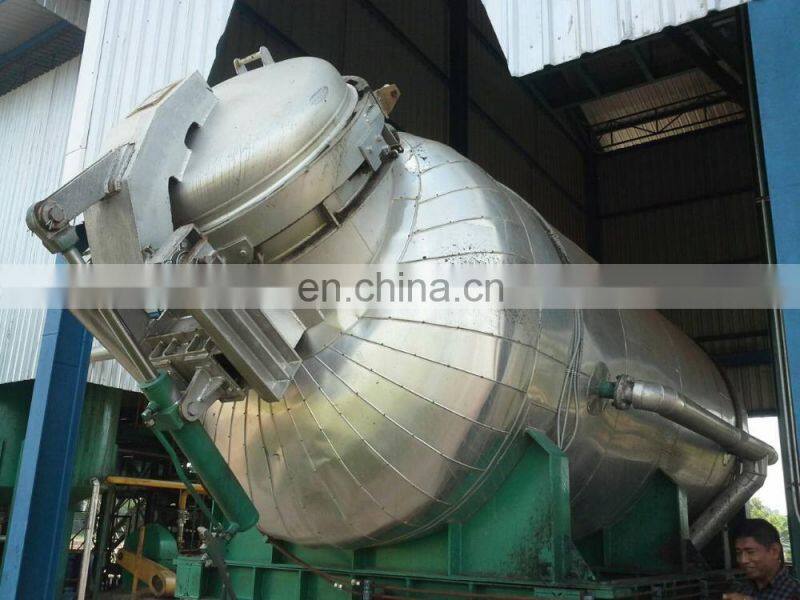

2. Sterilizing Station
The FFB are discharged into the loading ramp, then transported to sterilizer for sterilization. It uses high temperature to softening the fruit and kill the bacteria, this will increase the moisture content of fruit and separate the fruits easily, so finally it will easy to get oil and separate palm kernel, also avoid the raising of free fatty acid. From picking to sterilization, the time shall not over 24 hours.

3. Threshing Station
In the sterilizing process, the palm fruits are softening, through the threshing and screening of thresher to separate the palm fruits and empty fruit bunches(EFB).

4. Empty Bunch Treatment Station
The EFB are stored to be use as fuel or fertilizer, also can be used for other functions.

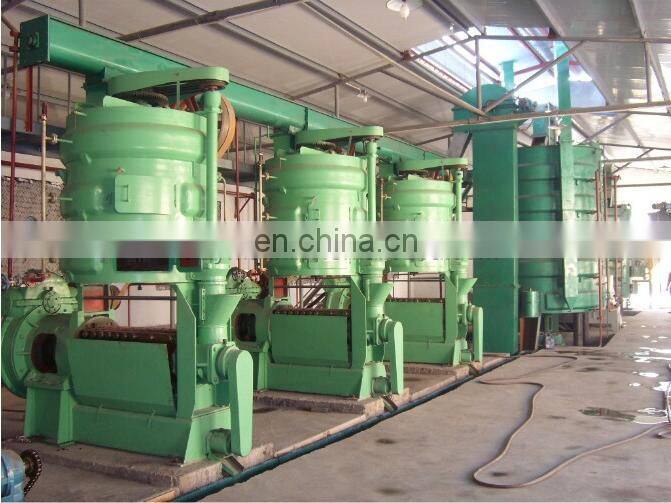

5. Pressing Station of Palm Oil Processing Machine
Transport the palm fruits to the digester to mixed and cooked again to separate the palm pulp and nut, then use double screw hydraulic presser to get crude palm oil, which improved the production efficiency greatly.

7. Oil Tank and Oil Loading Shed
Store the crude palm oil and ready to load the oil to other places.

8. Depericarping Station
The pressed palm fiber cake gets into the cake breaker then get into the winnowing system to separate the fiber and nut.
9. Kernel Recovery System
Then nut will be crushed to get shell and kernel. Through winnowing system and washing system to separate the shell and kernel. The shell can be used as fuel for boiler, the kernel will be dried for storage.

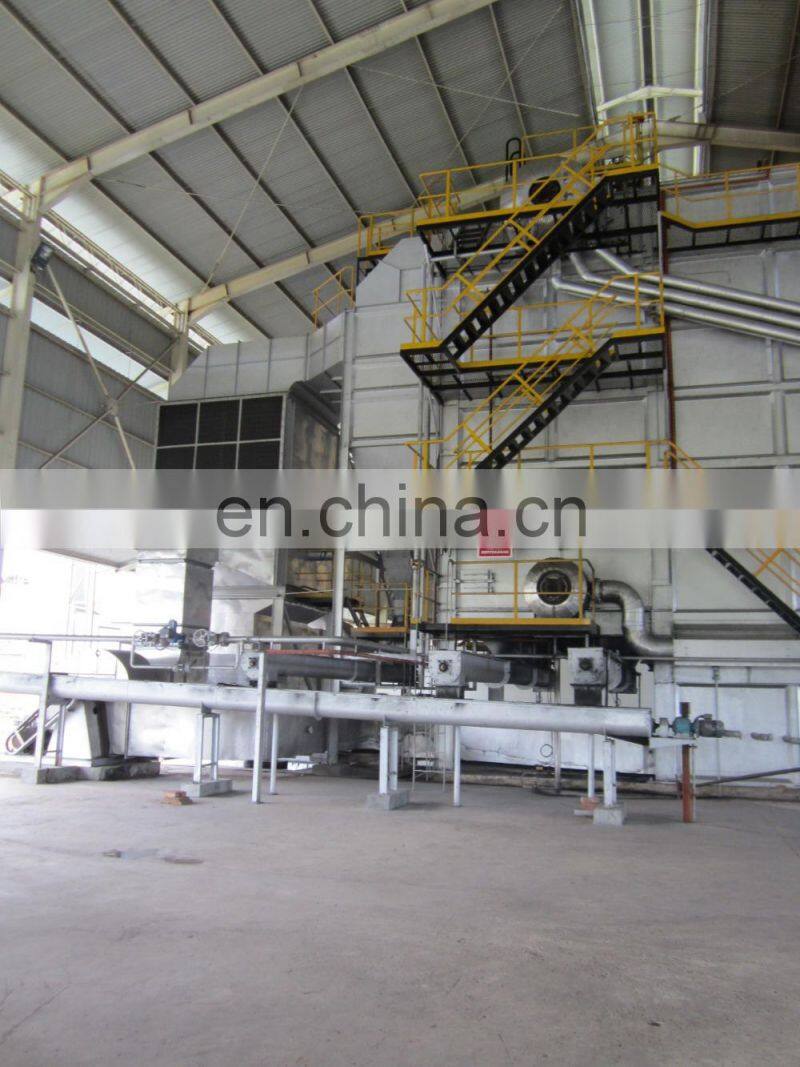

10. Boiler House
In the whole production process, it will need much steam to cooking and softening the palm fruits. The boiler has features of high heat efficiency, reliable working, high over-load capacity, wide application, etc.

11. Power House of Palm Oil Processing Machine
Adopts diesel engine generator and steam-turbine generator to provide power to production and life using electricity.
12. Water Supply and Treatment (Including boiler water treatment)
Through the processes of settling, filtration, medicals feeding, to ensure the quality of water, and also the quality of oil.
13. Effluent Treatment Plant
The effluent has high content organic matters, BOD (biochemical oxygen demand) is about 25000PPM, it needs to be processed into qualified water then can discharge. Now the impounding reservoir effluent processing system is the most using and effective method. This kind processing system is very economic.
