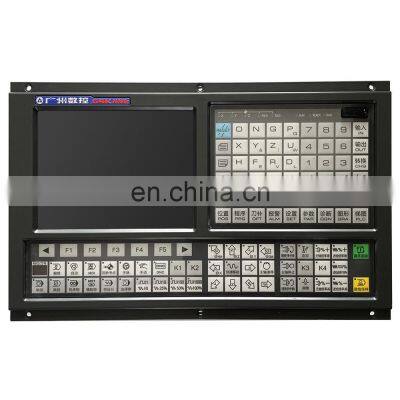

5 Axis cnc machining center cnc machine woodworking CNC Controller GSK 980MDc-PM

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

GSK 980MDc-PM Woodworking copying machine

(Be careful：For detailed specifications, models and inquiries, contact customer service for negotiation)

Product features

● minimum control accuracy 1 μ m. The maximum moving speed is 60m/min; ● online can programming design, without manual programming by users; ● simple post-processing setting, easy to operate; ● multi channel program processing to meet users' diverse processing needs; ● support machining path simulation; ● built in PLC, ladder diagram online display and real-time monitoring; ● USB for file transmission; ● 40m program storage space, 10000 part programs; ● level 6 operation authority management, 32 time limited shutdown settings; ● 8.4-inch true color LCD, supporting Chinese, English and other multilingual display; ● gs2000t-n series strong overload servo unit is equipped as standard, and 5000 line encoder is used for servo motor position feedback;

Specification

project	Specifications
Proprietary software version	V 3.01PM
essential information	Coordinate plane selection
		Position command range: ± 9999999 × Minimum input unit
		Absolute / incremental programming, English / metric conversion, linear axis / rotary axis
Preparation function	Fast positioning, line / arc interpolation, metric and imperial system input, sentence macro instruction, macro program call,jump, cycle instruction, etc
Feed function	Fast movement speed: μ Class (is-b) 0 mm/min ~60000 mm/min
		Fast magnification: F0, 25%, 50% and 100% four levels of real-time adjustment
		Cutting feed rate: μ Class (is-b) 0 mm/min ~30000 mm/min
		Feed rate: 0 ~ 150%, 16 levels of real-time adjustment
		Fast moving acceleration and deceleration: linear type; Cutting feed acceleration and deceleration: exponential type and linear type; The start speed, end speed and acceleration / deceleration time of acceleration / deceleration are set by parameters
Graphic fill in processing	Various types of tenons are available for users to choose from
		After filling in the blank, the mortise can be processed
Spindle function	Spindle speed: it can be given by s code or PLC signal, and the speed range is 0RPM ~ 999rpm
		Spindle magnification: 50% ~ 120%, a total of 8 levels of real-time adjustment
		2 channels of 0V ~ 10V analog voltage output
		One channel of spindle encoder feedback, and the number of spindle encoder lines can be set (0 or 100p/r ~ 5000p/r)
Accessibility	Special m codes (M00, M01, M02, M30, M98, M99), and other m codes are defined by PLC
PLC functions	Two level PLC program, 5000 steps at most, and the refresh cycle of the first level program is 8ms
		13 basic commands and 31 functional commands
		PLC program online display and real-time monitoring; Support PLC warning and PLC alarm
		Multiple PLC programs can be stored, and the currently running PLC program is selected by parameters
		Basic i/o:41 input /36 output
		Expandable serial i/o unit (optional): ioa-01t: 24 point input, 16 point output, 4-channel analog voltage output
		IOA-02T：40point input, 24 point output, 8-Channel analog voltage output, 4-channel analog voltage input
Program storage and editing	Program capacity: 40m, 10000 programs (including subroutines and macro programs)
		MDI allows you to input and run 8 program segments
		Support macro program / subroutine calling, and allow 4-fold subroutine nesting
Program check function	Graphic simulation, idle operation, machine tool lock, auxiliary function lock, single section operation
interface	8.4 "true color LCD, 7 soft function keys
		Support display in Chinese, English and other languages
		Display of machining path, real-time enlargement, reduction, translation and angle switching of machining path
		Position, program, tool compensation, alarm, parameter, setting, graph, diagnosis, ladder diagram
Operation management	Operation mode: edit, automatic, input, mechanical zero return, manual pulse / single step, manual, DNC
		Level 6 operation authority management, program switch and parameter switch
		32 time limited shutdown
Communication function	USB: USB disk file operation, support PLC program and system software USB disk upgrade
		RS232: bidirectional transmission of part programs, parameters and other files, supporting PLC program update
Safety function	Emergency stop, hardware travel limit, software travel check, data backup and recovery
Electrical interface	5 control axes (including axis C), 2 analog voltage outputs, 1 encoder feedback input, 1 electronic handwheel input (supporting handheld electronic handwheel), 1 RS232, 1 usb-h, 41 input /36 output
外形尺寸	GSK980MDc（width × high × Deep）	420×260×150㎜

Packing & Delivery

FAQ

Q: Do you support customized manufacturing?
A: Yes,we can customized manufacturing according to customer's requirment. We support to OEM your own company display interface
and logo.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 5-10 days if the goods are not in stock, it is according to
quantity.10-20 days if customized manufacturing.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample with sample price.
Q: What is your terms of payment ?
A: Payment<=2000USD, 100% in advance. Payment>=1000USD, 70% T/T in advance ,balance before shippment.
