GSK 920D-E NEW 5 Axis CNC controller Woodworking CNC system
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
Woodworking CNC system Factory original GSK 920D-E NEW CNC controller 5 Axis cnc machine controller
-
GSK 920D-E 5 Axis cnc machine controller Woodworking CNC system Popular original CNC controller
-
GSK 218MC CNC system of milling machine machining center Numerical control system
-
GSK 218MC CNC system of milling machine machining center Guangzhou CNC Numerical control system
-
GSK 218MC CNC system of milling machine machining center CNC machining center
-
GSK 208D CNC system of milling machine CNC controller Machining Centre
Product Description
Product Description

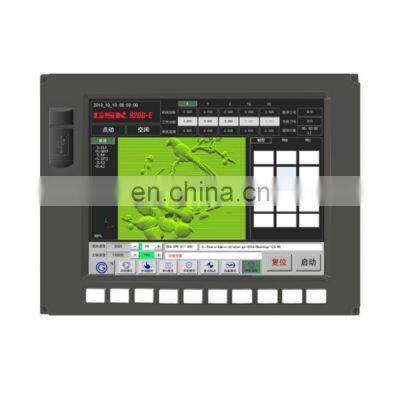

GSK 920D-E Numerical Control System
(Be careful：For detailed specifications, models and inquiries, contact customer service for negotiation)
GSK920D-E CNC system is a five axis embedded CNC system developed by our company for the woodworking industry. This system is suitable for most woodworking industries in the market; The system has the advantages of fast processing speed, high precision of repeated processing, supporting graphics editing, track following, G code online editing, simulation processing preview, PLC online programming, function button customization and other functions; The system adopts an integrated touch screen design, which has the characteristics of simple and convenient installation, beautiful appearance and anti-interference.
Specification
Project | Specifications |
Position control | Pulse + direction; Maximum pulse frequency 1MHz |
Precision control | Interpolation period: 1ms; Minimum control accuracy: 1um |
speed control | Maximum speed: 100000mm/min |
Interpolation algorithm | 1. trapezoidal algorithm 2 S-shape algorithm |
Spindle control | Support multi row cutter, multi Z axis spindle analog output control and multi frequency converter output control |
Number of axis | Five axis and five linkage control are supported at most, and the capacity expansion synchronous axis is supported |
PLC control | PLC online editing and debugging; Multiple PLC programs can be stored, and the currently running PLC program is selected by parameters |
IO | Expansion O module with maximum 128 inputs and 128 outputs; Freely assigned o, customized and named |
task management | Level 10 task priority setting, supporting preemptive task scheduling |
Time limited shutdown | Multi level downtime task to solve the collection difficulty caused by installment payment |
Zero return | Support automatic return to the mechanical origin, customize the return to zero direction and return to zero sequence, and synchronize all axes together |
Handwheel equipment | Support handwheel control and handwheel simulation operation |
3D simulation | 3D trajectory simulation and estimated processing time |
parameter | Support parameter backup, parameter comparison and parameter restore |
Tool compensation | Support length and diameter compensation and wear compensation |
Advanced features | Support single segment execution, breakpoint continuation and customized line number processing methods |
Tool magazine | Magazine types compatible with tool arrangement, drill arrangement, turret, disc magazine and mixed magazine |
error compensation | Support screw rod reverse clearance compensation |
Machining task | It supports the number of processing tasks, multi station, array, code scanning and other processing methods |
Mounting screws | Grounding screw | L(mm) | H(mm) | W(mm) | Hole L(mm) | Hole W(mm) |
4 | 5 | 290 | 87 | 220 | 280 | 210 |
Product features
●High speed: the maximum moving speed is 100mmin;
●Convenience: the embedded touch screen integrated machine design makes the system more stable and the operation more convenient;
●High efficiency: adopt intelligent forward-looking and accurate motion control algorithm to ensure processing efficiency and quality;
●Safety: dust, oil, steam, damage, system disk write protection, maintenance free;
●Beautiful: the closed box design can better protect the hardware circuit, reduce the number of connecting wires, and make the wiring simple;
●Stable: the system has high stability, fast response time, and no fault cycle test in industrial environment;
●Functions: built in multi station, scanner, array processing and other functions;
●Wizard: built in wizard function, providing wizard settings for axis parameters and tool parameters;
●Customization: the built-in PLC function is convenient for users to customize new functions;
●Track: track following, preview processing track and budget processing time;
●Button: the function and button user-defined operation are universal;
●Development: the required functions and configurations of the system can be selected according to customer requirements.
Touch operation / wizard settings
The gsk920d-e CNC system is factory equipped with a 104 inch touch screen to match the compatible scheme for users; It supports external large screen, USB touch screen drive, multi touch calibration and other functions. Touch screen technology facilitates the flexibility of human-computer interaction to a great extent.
With the built-in wizard function, the user can simply set the parameters of each axis according to the wizard steps. Machine tool structure, axis direction, pulse equivalent, tool magazine, tool and other parameters.
Support customized content function buttons
Support the execution of G code, macro program, M code, port output reset, port input judgment, jump instruction, C language, internal function and other function instructions; Internal function code: such as returning to zero, scanning code, program call out, returning to workpiece origin, etc.
Wizard operation process
●One key wizard function (optional)
●Set workpiece origin (machining starting point of workpiece)
●Simulation run (preview track and budget processing time)
●One key zero return (after breakpoint)
●PLC programming startup mode of loading machining program (code scanning startup or loading startup)
●Automatic operation (optimization of parameters and processing efficiency)
Simple operation
Built in slot milling module: the user only needs to fill in the slot milling parameters. After saving, the system automatically generates the processing program file, which greatly saves the user's programming time. The programming function is specially customized for the slot milling tenon machine.
product application
Glass synchronous trimming machine
Multi station gantry cutting machine
Six position synchronous engraving and milling machine
Gate leaf slot and frame milling machine
Woodworking band sawing machine
Multi function engraving and milling machine with tool arrangement and tool magazine
Crystal grinder
Two position five axis multifunctional engraving and milling machine
Four axis a-axis follow milling machine
Packing & Delivery
FAQ
Q: Do you support customized manufacturing?
A: Yes,we can customized manufacturing according to customer's requirment. We support to OEM your own company display interface
and logo.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 5-10 days if the goods are not in stock, it is according to
quantity.10-20 days if customized manufacturing.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample with sample price.
Q: What is your terms of payment ?
A: Payment<=2000USD, 100% in advance. Payment>=1000USD, 70% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below
A: Yes,we can customized manufacturing according to customer's requirment. We support to OEM your own company display interface
and logo.
Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 5-10 days if the goods are not in stock, it is according to
quantity.10-20 days if customized manufacturing.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample with sample price.
Q: What is your terms of payment ?
A: Payment<=2000USD, 100% in advance. Payment>=1000USD, 70% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below
