HVS-1000ZT Digital Display Touch Screen Auto-Turret Microhardness tester

FOB Price

Negotiable

1 (Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

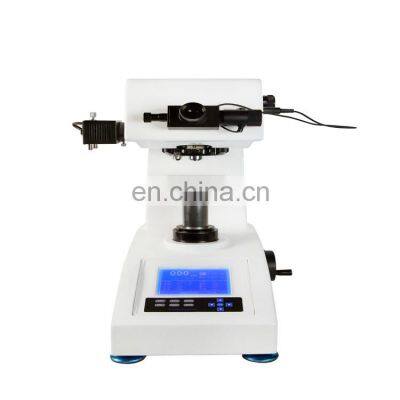

HVS-1000ZT Digital Display Touch Screen Auto-Turret Microhardness tester

Mobile/whatsapp: + 86-15866781190 Skype: hstbetty009

Product Description

Production Introduction:

Heat treatment, carbonization, hardening layer, surface coating, steel, nonferrous metals, small and thin parts, etc.

Technical Parameters

Model	HV-1000Z	HVS-1000Z	HVS-1000ZT
Display model	Small LCD digital display	Big LCD digital display	touch screen Digita Display
Hardness values	Input D1,D2	Direct display	Direct Display
Exchange Scales	HRA,HRB,HRC,HRD,HRF,HV,HK,HBW,HR15N,HR30N,HR45N,HR15T,HR30T,HR45T
Test force	10gf (0.098N),25gf (0.245N),50gf (0.49N),100gf (0.98N), 200gf (1.96N),300gf (2.94N),500gf(4.9N),1kgf (9.8N)
Turret Type	Automatic
Loading and unloading mode	Automatic
Dwell Time	Adjustable 0 to 60 seconds
Micrometer eyepiece multiple	10X(optional 15X)
Me measurement resolution	0.25µm (drum reading)
Objective magnification	10X 40X
Total magnification	100X(objective)400X(measurement)
measurement range	150µm
light source	Halogen lamp (brightness adjustable)
