Low Temperature Liquid Nitrogen Cooling Machine/Impact Test Cooling Cryostat
- T/T Credit Card
You May Like
-
Impact Sample Notch Broaching Machine
-
DWC-100 Charpy Impact Test Low Temperature Cooling Bath
-
DWC-60 Impact Testing Low Temperature Cooling Chamber
-
DWC-60 Impact Testing Low Temperature Cooling Bath
-
VU-1S Manual Charpy Impact Testing Sample Prepare Notch Broaching Machine
-
XJ-50D Microcomputer Controlled Charpy Izod Combined Impact Strength Testing Machine For Plastic
Product Description

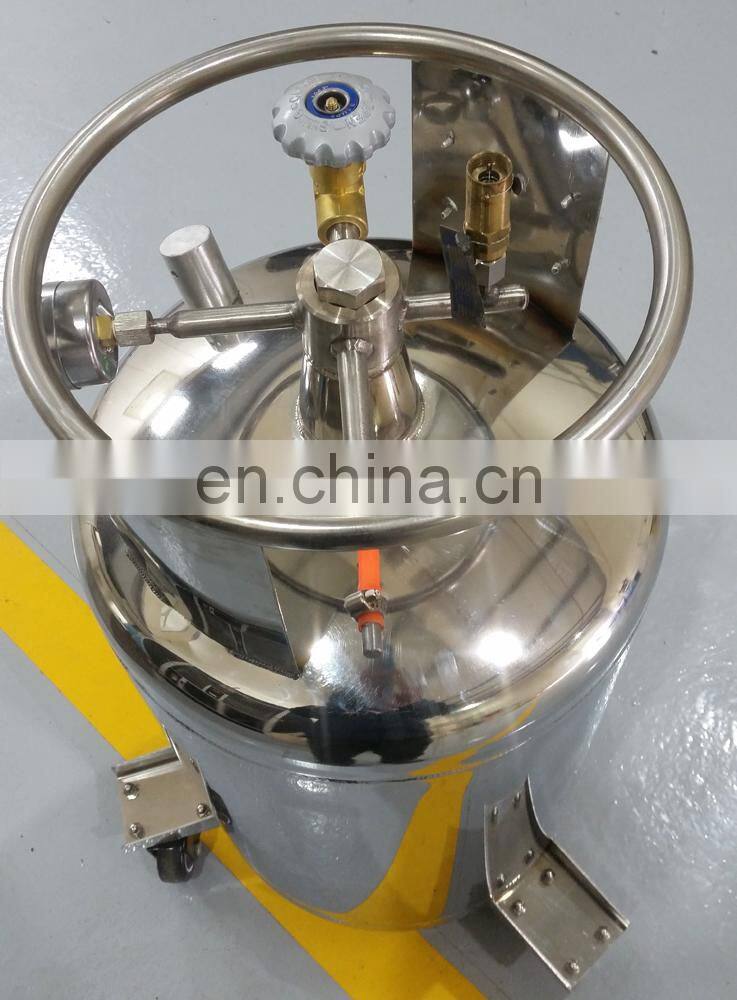

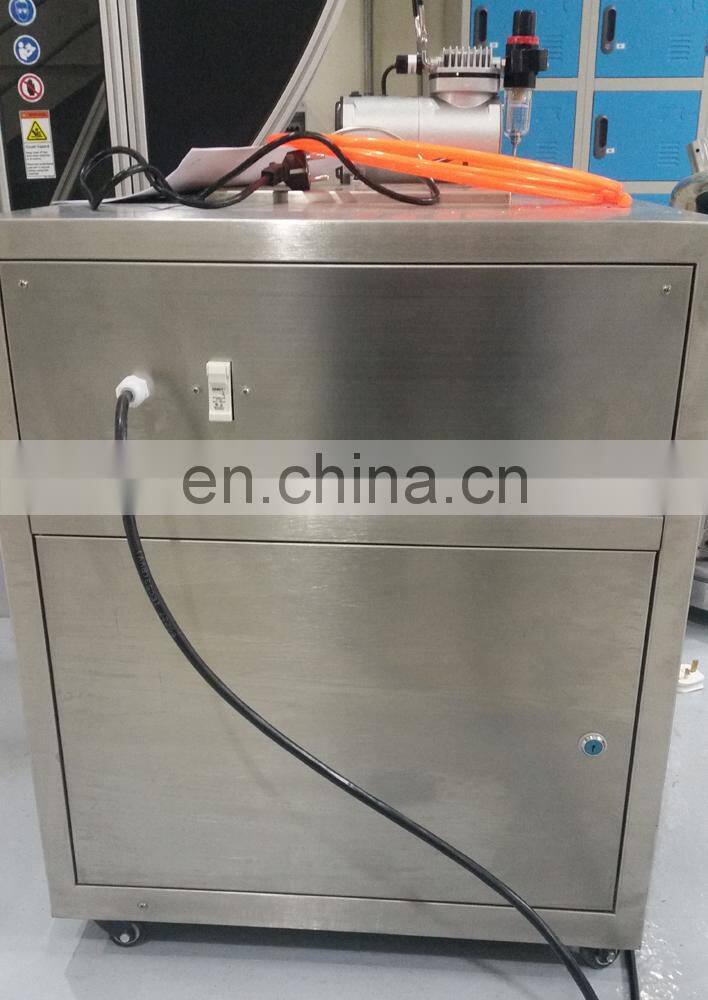

Low Temperature Liquid Nitrogen Cooling Machine/Impact Test Cooling Cryostat
1.Application:
This equipment used liquid nitrogen refrigeration technology, the use of the principle of heat balance
and mixing method of circulation to achieve uniformity of the sample auto-cooling and temperature, to
fully meet the temperature indicators of national standard GB229-2007 of the provisions.
The equipment is simple,convenient and efficient for working,which is the ideal equipment of specimen
cooling and insulation for low-temperature impact testing.
At the same time, it can also be used for other low-temperature detection and testing.
2.Standards:
ASTM, E23-02a, En10045, ISO83,GB/T229-2009
3.Main Specifications:
| Model | DWC-196 | |
|
Cooling range |
+30°C ~ -196°C |
|
|
Constant temperature accuracy |
±2°C |
|
|
Temperature dropping speed |
2°C ~5°C / min |
|
|
Max. Dimension |
900×660×650 mm |
|
|
Dimension of the liquid nitrogen tank |
1000×600×600 mm |
|
|
Effective working space |
240×150×150mm |
|
|
Specimens amount |
60 PCS |
|
|
Digital timer |
1min~9999min(Resolution:1min) |
|
|
Cooling medium |
Liquid nitrogen |
|
5.The Realistic Pictures Of Our Factory:
6.Our Cooperative Partners:
7.Our company can also produce the customized testing machines as clients' requirements.
