Home > Products > Impact Testing Machine > NDT-4000 4000J ASTM E-208 Metal Drop Weight Impact Tester

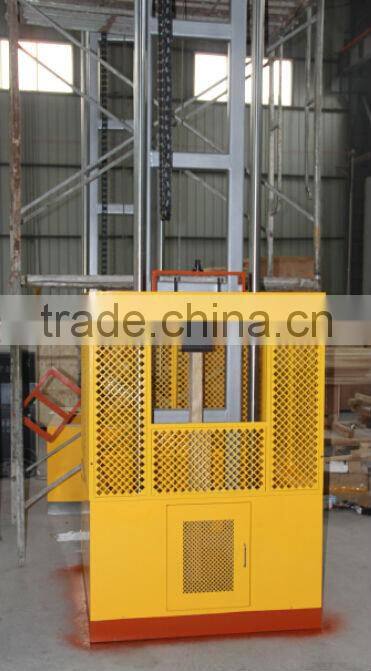

NDT-4000 4000J ASTM E-208 Metal Drop Weight Impact Tester
- T/T Credit Card
You May Like
-
JL-4000 ASTM E-208 Drop Hammer Impact NDT Test Equipment Impact Testing Machine Digital Display Metal Material Electronic CN;SHN
-
NDT-6000 ASTM E-208 NDT Metal Material Drop Hammer Impact Test Equipment/Testing Machine
-
Factory!!!!20000J DWTT Drop Weight Impact Lab Test Machine / Drop Hammer Impact Test
-
New Design a Range of Pendulum Impact Testers -196 Low Temperature Chamber Charpy Chiller Made in China
-
Multifunctional 300j Charpy Testing Machine 500j Pendulum Impact Tester -60c Cooling Bath With High Quality
-
Charpy Chamber Cantilever Beam Izod Impact Test Strength Testing Instruments
Product Description
NDT-4000 4000J ASTM E-208 Metal Drop Weight Impact Tester Price
1. Application:
Drop Weight Impact Tester Price is specially for conducting drop-weight test to determine nil-ductility transition temperature of ferritic steels.
2.Standard:
GB/T6803-86,ASTM E208-95A
3.Main Technical Parameters:
|
Model |
NDT-2000 |
NDT-3000 |
NDT-4000 |
NDT-6000 |
|
Maximum Energy(J) |
2000 |
3000 |
4000 |
6000 |
|
Minimum Energy(J) |
300 |
300 |
500 |
750 |
|
Maximum Tup Mass(kg) |
60 |
90 |
120 |
204 |
|
Tup Mass Accuracy |
±1% |
|||
|
Drop Height(mm) |
750~3400 |
750~3000 |
||
|
Velocity Of Drop(m/s) |
3.8~7.6 |
|||
|
Hammer Lifting Speed(m/min) |
3 |
|||
|
Height Resolution |
0.1 |
|||
|
Height Accuracy(mm) |
≤±10 |
|||
|
Hardness Of Tup Nose |
HRC58-62 |
|||
|
Radius Of Tup Nose(mm) |
R25.4±2.5 |
|||
|
Sample Centered Error(mm) |
±1 |
|||
|
Support Anvil Span |
P-1,P-2,P-3 |
|||
|
Specimen Dimension |
P-1:(360±1)×(90±2)×(25±2.5)P-2:(130±1)×(50±1)×(20±1)P-3:(130±1)×(50±1)×(16±0.5) |
|||
|
Power Supply |
380v±10%,50/60Hz |
|||
4.Feature:
4.1 SIMENS PLC controls and touch screen provide high reliability and versatility.
4.2 Automatic specimen feeding and automatic posting.
4.3 Frame structure is made of solid steel plate with high stability under impact.
4.4 Special design tools for support change.
4.5 Tup body is made of high strength steel plate with high impact resistance.
4.6 Use chain to lift striker with high precision in height.
4.7 Self-lock design for striker clamping.
4.8 Full-closed safety shield.

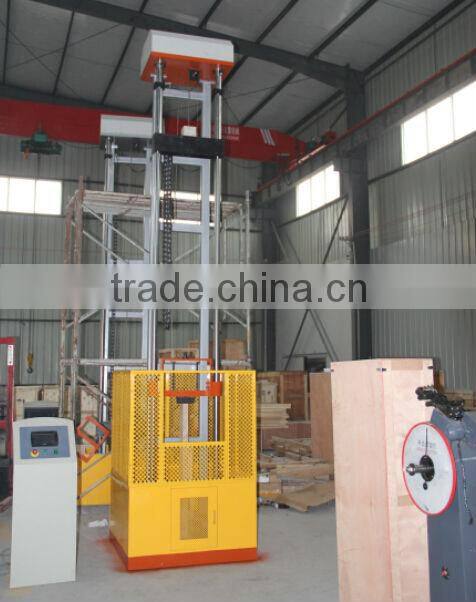

Drop Weight Impact Tester Price
detail show:
