XJJ-5 5 J Dial Display Charpy Impact Testing Machine With Electric Hammer
- T/T Credit Card
You May Like
-
JBW-300B Semi-automati Steel Metal Impact Test Equipment/Plastic Izod & Charpy Impact Machine
-
JBD-500D Dial Display Ultra Low Temperature Automatic Impact Testing Machine
-
Low Temperature Liquid Nitrogen Cooling Machine/Impact Test Cooling Cryostat
-
Impact Sample Notch Broaching Machine
-
DWC-100 Charpy Impact Test Low Temperature Cooling Bath
-
DWC-60 Impact Testing Low Temperature Cooling Chamber
Product Description

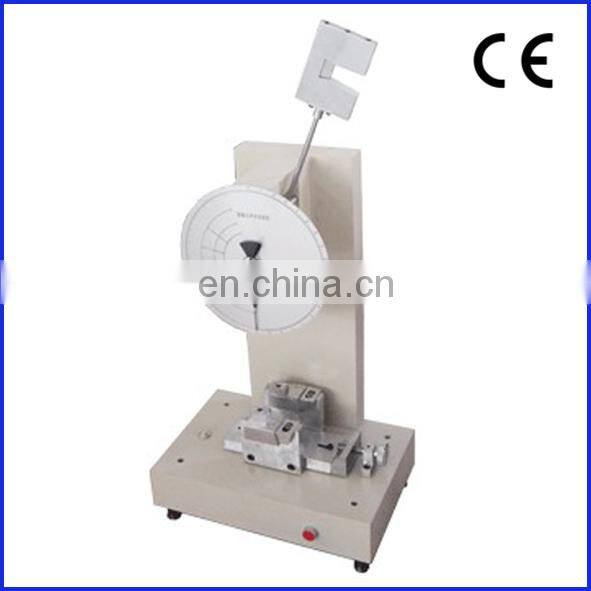

XJJ-5 5 J Dial Display Charpy Impact Testing Machine with electric hammer
skype:kason004 whatsapp:+86 18253185736
1.Applications:
XJJ-5 Dial Display Charpy Impact Testing Machine is pointer dial, electric hammer block release.
Application: hard plastic, fiber reinforced composite materials, glass fiber reinforced plastic,
ceramic, asbestos etc. Nonmetal materials for impact test.
2.Standard:
JB/T8761,GB/T1043,ISO179 and so on.
3.Main Specifications:
Model | XJJ-5 | |||
Impact Energy | 5 J | |||
Pendulum Torque (Standard Configuration Is One Pendulum) | 1 J Pendulum PL=0.5155Nm | 2 J Pendulum PL=1.0311Nm | 4 J Pendulum PL=2.0622Nm | 5 J Pendulum PL=2.5777Nm |
Impact Speed | 2.9m/s | |||
Pendulum Angle | 160° | |||
Span Of Support(mm) | 40mm | 60mm | 70mm | 95mm |
Round Angle Of The Jaw | R=1±0.1mm | |||
Round Angle Of Impact Cutting Edge | R=2±0.5mm | |||
Impact Blade Angle | 30±l° | |||
The Distance Between Pendulum Center And Sample Center | 221mm | |||
we major in testing machine more than 10 years,has exported to USA ,Germany,
The foreign customers visit our factory
