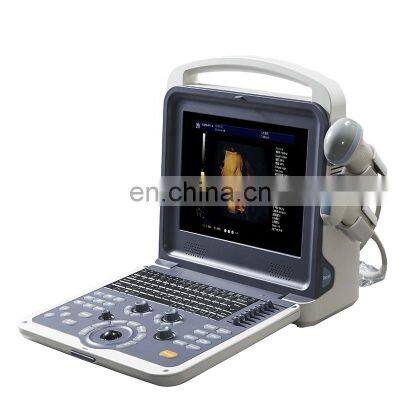

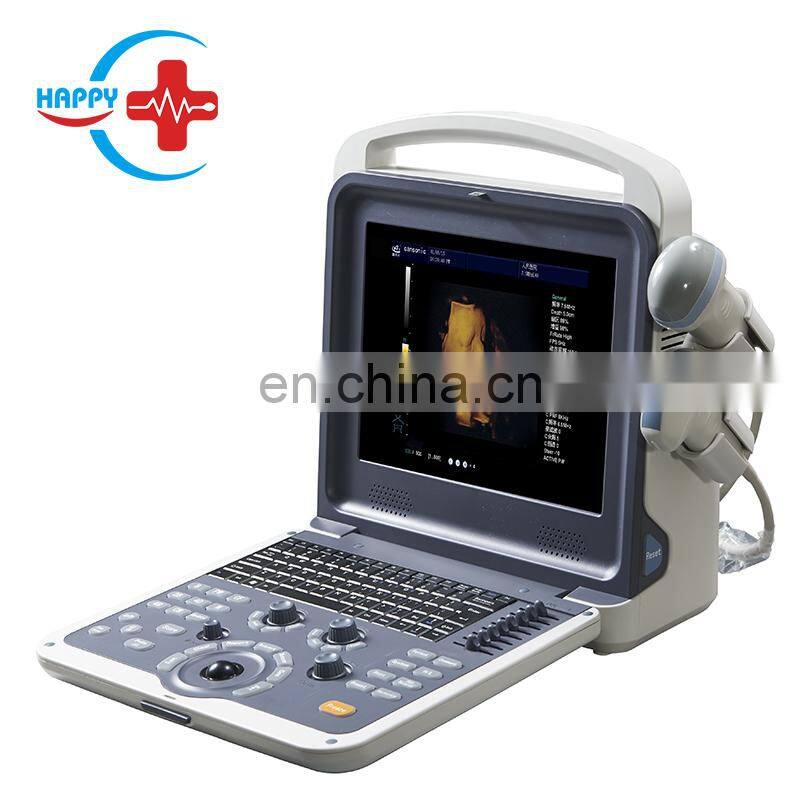

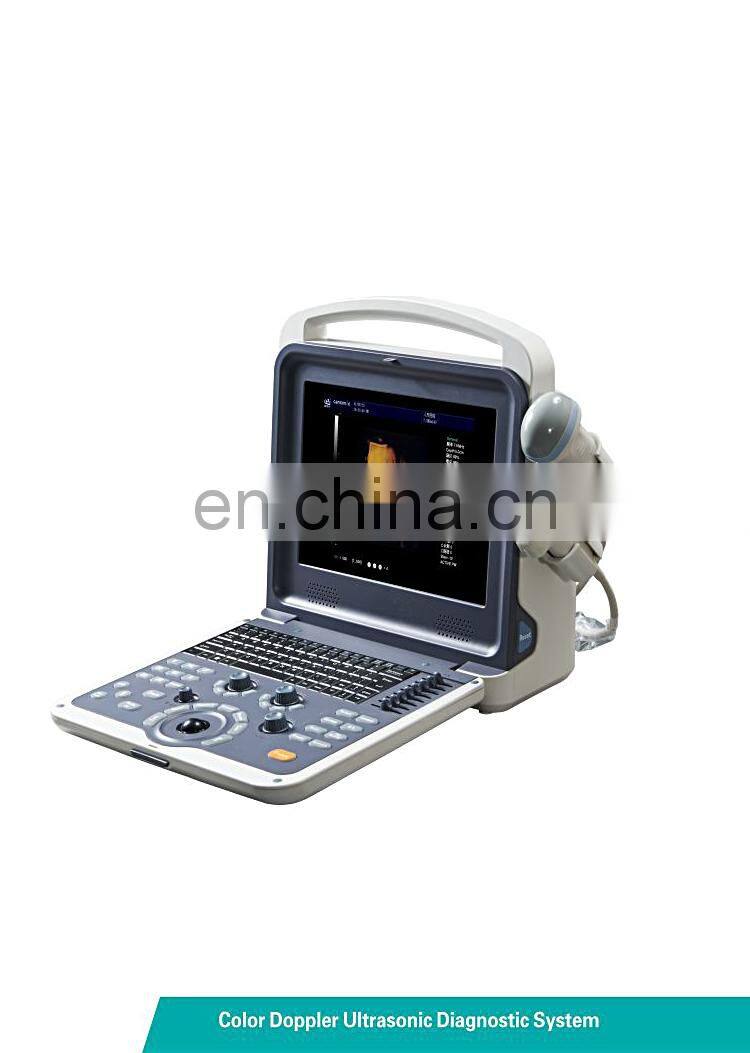

HC-A011 Newest Portable 4D Color Doppler Ultrasound System

Displaying mode

B,B/B,4B,B/M,M,PW,B/C,B/C/D,B/D, duplex, triplex, CFM,4D

Signal processing:

Full-digital beam forming, dynamic filter, dynamic real time receiving focusing, RDA, spectral processing, CFM processing, real-time dynamic focusing, dynamic aperture in all fields

Image processing:

THI

PSHI TM broadband multi-frequency harmonic image

Speckle-reduction

Power adjustable

Smoothing function

iBeam TM intelligent space image technology

iZoom TM undistorted full screen image

Free Xros M

Engineer control technology with low power consumption

Edge enhancement Image optimizing disposal

One-key optimization

Image conversion

Doppler Sound output volume adjustable

Wall filter adjustable

Base line adjustable

Sampling frame adjustable

Spectrum sampling volume adjustable

Spectrum sampling volume angle adjustable

PRF adjustable

General measurement

B mode-distance, circumference, area, volume, angle, area Red, Diam Red

M mode- distance, time, velocity, heart rate

Abdomen measurement

Liver, GB, Aorta, GBWT, CBD, Portal Vein, Spleen

OB packages

EDD table :GS ,BPD, CRL,FL,YS,TAD,LV,OFD,NT,AC,HC, APAD, Cxlength.

Gynecological packages

Uterine measurement (Uterine diameter, uterine endometrial); left/right ovary measurement; left/right sacculus measurement; Cervix; Uterine depth

Urology packages

Left/right kidney measurement, Volume, Cortex

Small parts Measurement

Left/ right thyroid, volume, Isthnus and calculating report

Cardiac Measurement Package

Heart rate, Valve speed, LV, aortic, mitral, ventricular

Skeletal & Muscles

Skeletal & Muscles, distance, area, Hip angle

Vascular

Senosis D, senosis A, Lt/Rt VVA, Lt/Rt Rulb, Lt/Rt ICA

Scanning depth

300mm

Body mark

Abdominal ,Cardiology, Gynecology, Obstetrics, Small parts

Cine loop

Automatically & manually, speed control

Image storage format

BMP, JPEG, PNG

Input/output ports

VGA, USB port, DICOM port

Standard Configuration

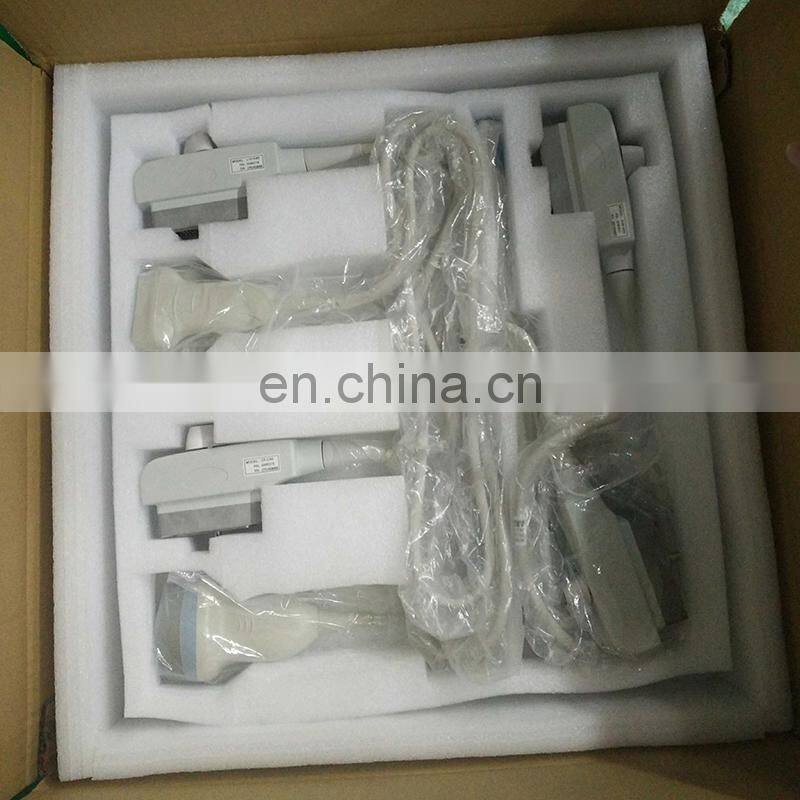

Main unit, 12 inch LED monitor, 3.5Mhz convex probe, 7.5Mhz linear probe,2 probe connectors, hard disk,battery,DICOM 3.0

Options

6.5Mhz transvaginal probe, 3.5Mhz micro-convex probe, 3.5Mhz phased array probe, 4D volume probe, trolley, USB laser printer and Video printer
