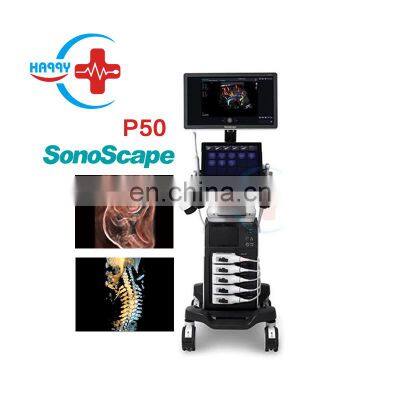

Sonoscape P50 Portable echography color ultrasound device 3D Color doppler ultrasound machine

Platform

  Pc-based

Probes

  3.5MHz R60/R50 convex probe; multi-frequency from 2.0MHz to 5.0MHz

  7.5MHz L40 linear probe; multi-frequency from 5.0MHz to 10.0MHz

  6.5MHz R10/R13 transvaginal probe; multi-frequency from 5.0MHz to       8.0MHz

  3.5MHz R20 cardiac probe; multi-frequency from 2.0MHz to 5.0MHz

Beam forming

  DBF, RDA, DRA, DRF

DFS

  Dynamic frequency scanning from 2.0 to 12.0MHz, 4 multi-frequency scanning

THI

  yes

Display mode

  B, 2B, 4B, B/M, M

Dynamic range

  ≥100dB, 4 steps of switching functions

Image process
 technologies

  controllable frame correlation, Gamma correction, edge enhancement, image smoothing, image denoisiong, automatical gain adjustment, up/down, left/right and black/white conversation.

Image magnification

  stepless magnification, dynamic real-time PIP local zoom functions

Cine loop

  512 frame auto/manual cine loop; multi screens cine loop (4B, 9B);     auto/manual cine loop under B/M and M mode.

Image management system

  the functions of pigeonholing, browsing, comparing, saving, printing and transferring images; as many as hundreds of thousands of images and thousands of cine loop could be saved; saved images could be operated by full-screen browse under slide mode.

   Measurement and calculation

  measure perimeter and area by distance or ellipse method; measure perimeter and area by track method; measure body surface area and volume by ellipse method. 4 measure sticks; rate measure; linear stenosis ratio, area stenosis ratio, angle measure. All calculations are automatic.

Assist tools

  puncture guide, histogram, sectional drawing.

Menu manage interface

  real time online support and navigation clew system, image fore-set and one-key optimization functions.

Body marks

  Multi-tens

Patient cases database system

  All the data could be saved, searched and managed.

  Multiple kinds of OB. measurement reports, fetus physiological grades and reports and fetus growth curve.

Presetting Formulas

  Presetting system for diagnosis and measurement formulas. Different formulas could be set according to different races.

Auto-measure software of OB., Gyn., small organs, cardiac, urology and others

  OB.: BPD, CRL, GS, HA, AC, HC, FL, APAD, TAD, FTA, HUMERUS, OFD, THD, TIBIA, ULNA, AFI, LIMP, BBT, FBP

  Gyn.: uterus diameter, intima thickness, ovary colume, regnant ovarian follicle, length of cervix long-diameter, uterine.

  Small organs: thyroid gland, hip joint.

  Cardiac: AOD, LAD, IVSTd, LVIDd, AA, LAD/AOD, LVPWd, LVIDs, EF, EF SLP, CA/CE, MVCF, CO, CI, LVMWI, AVSV, FS, ACV, ET, SV, SI, LVMW, QMV

  Urology: remained urine sample, prostate,PSAD.

  Patient cases database systems. All the data could be saved, searched and managed.

  Multiple kinds of OB. measurement reports, fetus physiological grades and reports and fetus growth curve.

3D software

  yes

4D software

  yes, optional

Relative extended ports

  VGA, S-Video, TV video port

  USB2.0 port, 2G saving card

  RJ-45 network port

  Multiple kinds of saving modes are all supported, containing soft disk, hard disk, flash disk, CF card, SD card and others.

  Compatible of jet printer, laser printer, video printer and video recorder
