EC25-EU Mini PCIe for EMEA/Thailand, EC25 4G/LTE Module Wireless Network Card
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
EC25-A 4G LTE Module LTE Cat.4 EC25 EC25AFA-512-STD
-
EC25-EUX Mini PCIe Wireless Module for EMEA/Thailand, EC25 Network Module
-
EC25 4G Module LTE Cat 4 IoT module EC25-E, EC25-EU/A/AU/V/J M2M Communication Wireless Module
-
EC20 CE HCLG 4G LTE Module EC20CEHCLG EC20CE EC20CEHCLG-128-AUD
-
EC21 LTE Series Cat-1 Module Optimized Specially 4G Module for M2M and IoT Applications EC21-X, EC21-E, EC21-A
-
EC21 4G LTE Module for IoT/M2M Application EC21-A EC21-E Mini PCIe
Product Description
Description

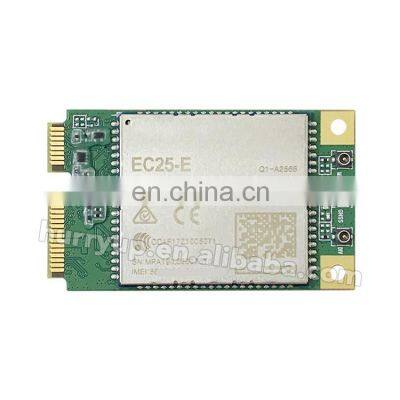

EC25-X Mini PCIe
EC25 Mini PCIe is a series of LTE category 4 module adopting standard PCI Express® Mini Card form factor (Mini PCIe). It is optimized specially for M2M and IoT applications, and delivers 150Mbps downlink and 50Mbps uplink data rates.
EC25 Mini PCIe contains 11 variants:
EC25-E Mini PCIe, EC25-EU Mini PCIe, EC25-EUX Mini PCIe, EC25-J Mini PCIe, EC25-A Mini PCIe, EC25-V Mini PCIe, EC25-AF Mini PCIe, EC25-AFX Mini PCIe, EC25-MX Mini PCIe, EC25-AU Mini PCIe and EC25-AUX Mini PCIe.
This makes it backward-compatible with existing EDGE and GSM/GPRS networks, ensuring that it can be connected even in remote areas devoid of 4G or 3G coverage.
EC25 Mini PCIe supports Qualcomm® IZat™ location technology Gen8C Lite (GPS, GLONASS, BeiDou/Compass, Galileo and QZSS). The integrated GNSS greatly simplifies product design, and provides quicker, more accurate and more dependable positioning.
A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB serial drivers for Windows 7/8/8.1/10, Linux, Android/eCall*) extend the applicability of the module to a wide range of M2M applications such as industrial router, industrial PDA, rugged tablet PC, video surveillance and digital signage.
Key Benefits
● LTE category 4 module optimized for broadband IoT applications
● Worldwide LTE, UMTS/HSPA(+) and GSM/GPRS/EDGE coverage
● Standard PCI Express® Mini Card form factor (Mini PCIe) ideal for manufacturers to easily integrate wireless connectivity into their devices
● MIMO technology meets demands for data rate and link reliability in modem wireless communication systems
● Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment
Frequency | EC25-E Mini PCIe | EC25-EU Mini PCIe | EC25-EUX Mini PCIe | EC25-J Mini PCIe | EC25-A Mini PCIe | EC25-V Mini PCIe | EC25-AF Mini PCIe | |||||||
LTE | ||||||||||||||
LTE-FDD | B1/B3/B5/B7/B8/B20 | B1/B3/B7/B8/B20/B28A | B1/B3/B7/B8/B20/B28A | B1/B3/B8/B18/B19/B26 | B2/B4/B12 | B4/B13 | B2/B4/B5/B12/B13/B14/B66/B71 | |||||||
LTE-TDD | B38/B40/B41 | B38/B40/B41 | B38/B40/B41 | B41 | ||||||||||
WCDMA | B1/B5/B8 | B1/B8 | B1/B8 | B1/B6/B8/B19 | B2/B4/B5 | B2/B4/B5 | ||||||||
GSM/EDGE | B3/B8 | B3/B8 | B3/B8 | |||||||||||
Embedded GNSS | Optional | Optional | Optional | Optional | Optional | Optional | Optional | |||||||
Region | EMEA/South Korea/ Thailand/India | EMEA/Thailand | EMEA/Thailand | Japan | North America | Verizon | North America FirstNet | |||||||
Certification | Carrier: Vodafone/ Deutsche Telekom/ SKT/ Telefónica/ KT*/ LGU+* Regulatory: GCF/ CE/ KC/ NCC/ RCM/ FAC/ NBTC/ ICASA Others: WHQL | Carrier: Deutsche Telekom/ British Telecom Regulatory: GCF/ CE/ NCC/ RCM Others: WHQL | Regulatory: GCF/ CE/ NCC/ RCM Others: WHQL | Carrier: NTT DOCOMO/ SoftBank/ KDDI Regulatory: JATE/ TELEC Others: WHQL | Carrier: AT&T/ T-Mobile/ Rogers/ Telus Regulatory: FCC/ IC/ PTCRB Others: WHQL | Carrier: Verizon Regulatory: GCF/ FCC Others: WHQL | Carrier: Verizon/ AT&T/ T-Mobile/ U.S. Cellular/ Rogers/ Telus Regulatory: GCF/ FCC/ PTCRB/ IC Others: WHQL | |||||||
Frequency | EC25-AFX Mini PCIe | EC25-MX Mini PCIe | EC25-AU Mini PCIe | EC25-AUX Mini PCIe | ||||
LTE | ||||||||
LTE-FDD | B2/B4/B5/B12/B13/B14/B66/B71 | B2/B4/B5/B7/B28/B66 | B1/B2①/B3/B4/B5/B7/B8/B28 | B1/B2①/B3/B4/B5/B7/B8/B28 | ||||
LTE-TDD | B40 | B40 | ||||||
WCDMA | B2/B4/B5 | B2/B4/B5 | B1/B2/B5/B8 | B1/B2/B5/B8/B4 | ||||
GSM/EDGE | Quad-band | Quad-band | ||||||
Embedded GNSS | Optional | N | Optional | Optional | ||||
Region | North America FirstNet | Mexico | Latin America/Australia/New Zealand | Latin America/Australia/New Zealand | ||||
Certification | Carrier: Verizon*/ AT&T*/ T-Mobile*/ U.S. Cellular*/ Rogers*/ Bell*/ Telus* Regulatory: GCF/ FCC/ PTCRB/ IC Others: WHQL | Regulatory: FCC/ PTCRB/ IFETEL Others: WHQL | Carrier: Telstra* Regulatory: GCF/ FCC/ Anatel/ NCC/ RCM Others: WHQL | Regulatory: CE/ NCC/ Anatel/ RCM Others: WHQL | ||||
Notes:
① LTE-FDD B2 of EC25-AU Mini PCIe and EC25-AUX Mini PCIe does not support Rx-diversity.
* Under development
