YFMC-720A/920A/1100A Advanced Hot Thermal Film Laminator With CE Standard
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
YFMA-800 Automatic Paper & Aluminum BOPP PET Film Laminating Machine
-
YFMA-920/1080 Fully Automatic High-speed Thermal Film Laminator Machine
-
YFMA-540 Hot Press Machine for Laminates
-
YFMA-1200/1300 Automatic Paper BOPP PET Film Laminating Machine with Round Knife
-
YFMA-1080 Automatic Paper Bag Film Laminating Machine with Round Knife
-
YFMA-1200/1300 Automatic Paper BOPP PET Film Laminating Machine with Round Knife
Product Description
Product Overview

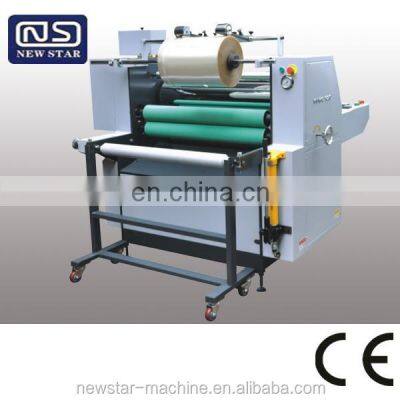

YFMC-720B/920B/1200B Manual Hot Melt Laminating Machine
Applications: To suit two kinds of film:pre-glued film and glueless film
FEATURES AT A GLANCE
• High Speed
• Easy to operate
• Manual feeding paper
• 216mm roller
• Oil heating
• Stable and precise
• 1 year warranty
PRODUCT SPECIFICATIONS
Item | Data | Data | Data |
Model | YFMC-720B | YFMC-920B | YFMC-1200B |
Max laminating width | 620mm | 820mm | 1100mm |
Speed of Laminating | 0-30m/min | 0-30m/min | 0-30m/min |
Temperature of laminating | 60-130ºC | 60-130ºC | 60-130ºC |
Total power | 10kw | 12kw | 15kw |
Voltage | 380V | 380V | 380V |
Total weight | 600kg | 700kg | 900kg |
Overall dimension | 2100*1300*1600mm | 2100*1500*1600mm | 2100*1700*1600mm |
PRODUCT CONFIGURATION
·SCHNEIDER frequency converter is equipped for infinitely variable speed, and the operator can change the machine's speed easily and guarantee the machine's running stable.
·One-piece construction design makes the machine run more stably, and lengthens the machine's lifetime.
·Manual paper feeding.
·Magnetic regulating plate can be adjusted easily to regulate manual paper feeding.
·High precision of chrome plated heating roller is equipped with built-in oil heating system, which has excellent performance to temperature control. The laminating temperature is adjustable upon applications.
·Hydraulic pressuring system provides big and steady pressure to guarantee good laminating quality.
·Film cutter cuts film width to make it meet paper size. The cut film is left on the film release spindle.
·Film perforating wheel perforates film edge to make the separation of laminated paper easy.
·Laminated paper is rolled up automatically by the winding spindle. Winding speed is adjustable upon.
·One-piece construction design makes the machine run more stably, and lengthens the machine's lifetime.
·Manual paper feeding.
·Magnetic regulating plate can be adjusted easily to regulate manual paper feeding.
·High precision of chrome plated heating roller is equipped with built-in oil heating system, which has excellent performance to temperature control. The laminating temperature is adjustable upon applications.
·Hydraulic pressuring system provides big and steady pressure to guarantee good laminating quality.
·Film cutter cuts film width to make it meet paper size. The cut film is left on the film release spindle.
·Film perforating wheel perforates film edge to make the separation of laminated paper easy.
·Laminated paper is rolled up automatically by the winding spindle. Winding speed is adjustable upon.
Automatic Overlap Regulator
Corrugated Delivery
320mm Large Heating Roller
Company Profile
Why Choose Us?
2. Having ISO 9001-Certified Factory
3. Strong R&D capability
4. High Quality Guaranteed
5. First Class Service And Best Prices
New Star Machinery international Limited And glory packing material produce kinds of laminating machine and uv coating machine and BOPP Thermal film metallizde PET And 3D , Soft touch film . With the development and innovation of post-press equipments, our company has carried on deep research and development to post-press equipments combining the features of printing & packing industry home and abroad. The products occupy sizable market at home and also have been expanded to all over the world.
Exhibition
FAQ
Q1: What it is advantage of your products?
A1: Easily operation and simply maintenance. Also coat effective in market.
Q2: How long for the guarantee?
A2: 12 month free warranty.
Q3: The engineer is available for overseas services?
A3: Yes, we supply engineer who is good at communication and understand English.
Q4: Why your price is nice than other supplier. (May you was received our machine's quotation but you still can't decided make order now or latter, hope there I not yet miss you.)
A4: We are manufacture and our engineer and worker is local. Furthermore. we are more forcus on developing products not advertisement only.
Q5: What is the brands for the electrical system?
A5: We are using Schneider PLC inverter, Omron and other international brand's parts that ensure the machine could run smoothly.
Q6: Which level of your products in market?
A6: High and mid grade quality with nice price.
Q7: Where are you?
A7: We are located in Machine's city Wenzhou, Zhejiang,China, welcome to visit us while you visit China.
Q8: Will you supply for OEM or ODM orders?
A8: Yes, we are, if you have any advise please let us know that we could make unique machine for you only.
A1: Easily operation and simply maintenance. Also coat effective in market.
Q2: How long for the guarantee?
A2: 12 month free warranty.
Q3: The engineer is available for overseas services?
A3: Yes, we supply engineer who is good at communication and understand English.
Q4: Why your price is nice than other supplier. (May you was received our machine's quotation but you still can't decided make order now or latter, hope there I not yet miss you.)
A4: We are manufacture and our engineer and worker is local. Furthermore. we are more forcus on developing products not advertisement only.
Q5: What is the brands for the electrical system?
A5: We are using Schneider PLC inverter, Omron and other international brand's parts that ensure the machine could run smoothly.
Q6: Which level of your products in market?
A6: High and mid grade quality with nice price.
Q7: Where are you?
A7: We are located in Machine's city Wenzhou, Zhejiang,China, welcome to visit us while you visit China.
Q8: Will you supply for OEM or ODM orders?
A8: Yes, we are, if you have any advise please let us know that we could make unique machine for you only.
