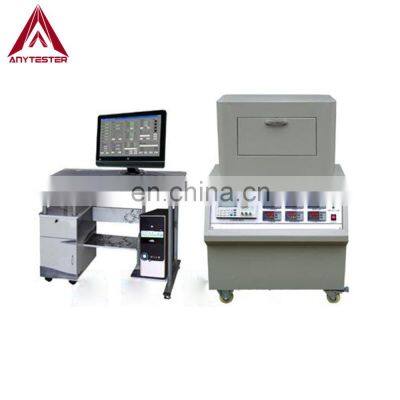

Automatic Plastic Concrete Rubber Thermal Conductivity Tester with Guarded Hot Plate Method
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Horizontal Style Electro-Thermostatic Blast Oven up to 250
-
Plastics Fabric Round Sample Cutter
-
AATCC Textile Electronic Digital Crockmeter
-
high quality hydrostatic pressure tester plastic pipe end cap
-
lab salt spray test chamber price
-
ASTM Plastic Pipe Pressure Testing Hydrostatic Pressure Tester with 6 Positions
Product Description
Product Description
DRH-V Automatic Thermal Conductivity Tester (Guarded Hot Plate) is used to measure the steady-state heat transfer through flat slab specimens by using the guarded hot plate method and calculate its heat conductivity of plastic, rubber, glass, fiber plate, polystyrene board, extruded sheet, foamed concrete, hollow glass, wood board and various thermal insulation materials. The slab specimen is placed between two flat parallel isothermal hot plates. Measure the heat flux through the effective area on the specimen, the temperature difference of two surfaces of the specimen and the thickness of the specimen to calculate the thermal conductivity.
Standard
GB/T 10294 | ISO 8302 | ASTM C177 | ||
Note: For more standards, please contact us. | ||||
Specification
Model | DRH-V |
Thermal conductivity measuring range | 0.001~3.000W/m.K |
Thermal conductivity measuring accuracy | ±2% |
Thermal conductivity repeatability | ±1% |
Surface temperature range of hot surface | Room temperature~150℃ Resolution: 0.01℃ Fluctuation: ±0.01℃ |
Surface temperature range of cool surface | 0~60℃ (-5~60℃ and -30~60℃ can be customized) Resolution: 0.01℃ Fluctuation: ±0.01℃ |
Thickness measuring range | 0~100mm Resolution: 0.001mm |
Pressure measuring range | 0~500N Resolution: 0.1N |
Specimen size | Basic configuration: 300×300×(5~80)mm Other optional sizes: 100×100×(5~80)mm 200×200×(5~80)mm 600×600×(5~80)mm |
Test time of whole procedure | 60min |
Power supply | AC220V 50Hz, single-phase, 500W |
Details & Features
★ Professional test software for automatically controlling the test procedure.
★ Automatic measurement of specimen thickness and automatic pressurization, suitable to measure the thermal conductivity under different pressures.
★ Automatic data acquisition, data process, print-out of form and report and data-saving.
★ Short measurement time, accurate test result, good repeatability and high automation.
Our Company
History
Since 1982 with more than 20 years’ experience
Warranty
Two Year Warranty for whole product
Training
Video and user manual for training
Onsite service
Installation and training service is available
Testing service
Free sample testing before order is available
Lead time
15 working days lead time for most product
Packing & Delivery
Packaging | ||
Dimensions | 1160x510x1050mm | |
Weight | Approx. 80kg | |
Packaging Details | 1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. | |
Payment
Payment Term | T/T | EXW | 30% T/T in advance, paid the balance before shipment | ||
FOB | |||||
CFR(C&F) | |||||
CIF | |||||
L/C | L/C amount above 50,000 usd, we can accept L/C at sight | ||||
West Union | Amount lower than 5000usd | ||||
West Union | |||||
Delivery Time | 7~10days after receiving payment for one container | ||||
