Series Constant Temperature & Humidity Chamber

FOB Price

Negotiable

1 (Min.Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

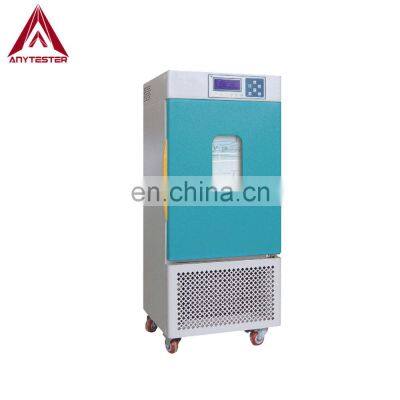

Series Constant Temperature & Humidity Chamber

HY3751A Series Constant Temperature & Humidity Chamber is suitable for compatibility test of rubber, plastic, leather, home appliances, instrument, meter, component and other product on the condition of high temperature, low temperature and humid environment. This machine conforms to GB/T 2423.1, GB/T 2423.2, GB/T 2423.4, etc.

Details and Features

Structure ★ Internal chamber is made of 1.2mm thick 304 SUS stainless steel wire drawing board, external chamber is made of 1.5mm thick high quality cold-rolled steel board with spraying treatment ★ Imported sealing material and unique silicone sealing structure between door and doorframe, good sealing effect and ageing resistanceII ★ Adopts international popular light pressure type door lock, good sealing effect of chamber door ★ Chamber door has hollow glass observation window and lighting device, can clearly observe the internal test specimen ★ With Swivel caster on the bottom of equipment, can adjust the height of equipment, easy to move Heating system ★ Thermal insulation material adopts high quality superfine glass fiber insulation cotton, long service life, good thermal insulation effect ★ Heater adopts stainless steel stents and rack type electric heater, fast to heat, long service life, high sensitivity Cooling system ★ Imported refrigeration compressor, large cooling capacity, low noise, low energy consumption, high efficiency ★ Finned evaporator, fast to transfer heat ★ Adopts imported oil separator ★ Adopts R404A and R23 Environmental protection refrigerants Electrical control system ★ Temperature and humidity controller adopts PLC control ★ Level A Pt100 platinum resistance sensor, high accuracy and sensitivity ★ Control mode: thermal equilibrium temperature adjusting mode ★ Executive components, AC contactor, thermal relay and solid-state relay use French “Schneider” brand, reliable quality ★ Simple operation, easy to maintain

Technical specification

Model	HY3751A Series
Temperature range	4~60℃, -8~60℃, -5/-20/-40/R.T +10℃ ~ +85℃
Temperature fluctuation	±0.5℃
Temperature uniformity	±2℃
Heating rate	2～3℃/min
Humidity range	50%~95% RH @ 4℃ ~ +60℃ 60%~85% RH @ R.T +10℃ ~ +85℃
Humidity uniformity	+2% /-3% @ <75%R.H ± 2% ~ 5% @ >75%R.H
Noise	≤65 dB
Power supply	AC220/380V 50Hz

Model	Working chamber size	Ove Size
HY3751-50	350360400mm	4756301135mm
HY3571-70	400350500mm	5256201235mm
HY3751-100	450450505mm	4756301335mm
HY3751-150	500370800mm	6205901465mm
HY3751-250	5504451100mm	6806751720mm

Our Company

Payment

Payment term	T/T	EXW	30% T/T in advance, paid the balance before shipment
			30% T/T in advance, paid the balance before shipment		FOB
				CFR(C&F)	30% T/T in advance, paid the balance against copy of B/L
				CIF	30% T/T in advance, paid the balance against copy of B/L
		L/C	L/C amount above 50,000 usd, we can accept L/C at sight
		West Union	Amount lower than 5000usd
Delivery Time	7~10days after receiving payment for one container

Contacting Us

Packing & Delivery

Packaging
Packaging Details	1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated.
