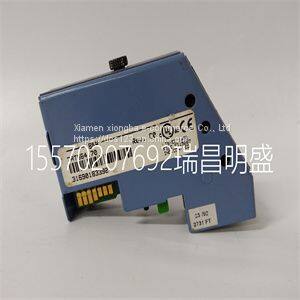

Module spare parts 7AT664.70

Focus on DCS, PLC, robot control system and large servo system.

Main products: various modules / cards, controllers, touch screens, servo drivers.

Advantages: supply of imported original products, professional production parts,

Fast delivery, accurate delivery time,

The main brands include ABB Bailey, Ge / fuanc, Foxboro, Invensys Triconex, Bently, A-B Rockwell, Emerson, ovation, Motorola, xyvom, Honeywell, Rexroth, KUKA, Ni, Deif, Yokogawa, Woodward, Ryan, Schneider, Yaskawa, Moog, prosoft and other brands

The following figure shows the block diagram and an example for the terminal assignment of the digital output module DQ 16×24VDC/0.5A ST on the BaseUnit BU type A0 (1-wire connection). ① 1-wire connection DQn Output signal, channel n ② Backplane bus interface 24 V DC Supply voltage L+ (infeed for light-colored BaseUnit only) ③ Output electronics M Ground ④ Polarity reversal protection P1, P2, AUX Internal self-assembling voltage buses Connection to left (dark-colored BaseUnit) Connection to left interrupted (light-colored BaseUnit) ⑤ Supply voltage filter circuit (only available with light BaseUnit ) DIAG Diagnostics LED (green, red) ⑥ Color-coded label with color code CC00 (optional) .0 to .15 Channel status LED (green) PWR Power LED (green) Figure 3-1 Wiring and block diagram for 1-wire connection of actuators Digital output module DQ 16x24VDC/0.5A ST (6ES7132-6BH01-0BA0) 14 Manual, 02/2019, A5E03574420-AF Parameters/address space 4 4.1 Parameters Parameters for DQ 16x24VDC/0.5A ST Specify the module properties with the various parameters in the course of your STEP 7 configuration. The following table lists the configurable parameters. The effective range of the configurable parameters depends on the type of configuration. The following configurations are possible: ● Central operation with an ET 200SP CPU ● Distributed operation on PROFINET IO in an ET 200SP system ● Distributed operation with PROFIBUS DP in an ET 200SP system When assigning parameters in the user program, use the "WRREC" instruction to transfer the parameters to the module using the data records; refer to section Parameter assignment and structure of parameter data record (Page 29). The following parameter settings are possible: Table 4- 1 Configurable parameters and their defaults (GSD file) Parameters Range of values Default Parameter reassignment in RUN Scope with configuration software, e.g. STEP 7 (TIA Portal) GSD file PROFINET IO GSD file PROFIBUS DP 1 Diagnostics: No supply voltage L+ ? Disable ? Enable Disable Yes Module Module Diagnostics: Short-circuit to ground ? Disable ? Enable Disable Yes Module Module Diagnostics: Short-circuit to L+ ? Disable ? Enable Disable Yes Module Module Diagnostics: Wire break ? Disable ? Enable Disable Yes Module Module Channel activated ? Disable ? Enable Enable Yes Channel Chann
