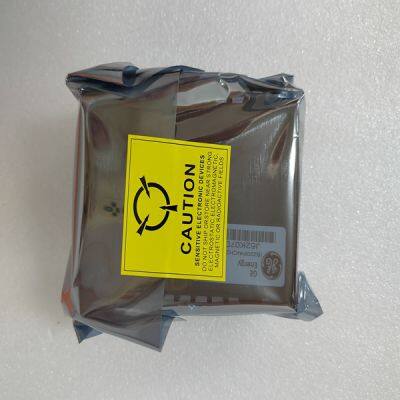

IS220PAICH2A 336A4940CSP11

Brand: GE

Type: IS220PAICH2A 336A4940CSP11

Origin: the United States

Warranty: 365 days

Colour: new/used

Shipping method: Courier delivery

Module of PLC, DCS, ESD system card, the card is a vibration monitoring system, steam turbine control system module, the advantages of the gas generator spare parts brand: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts of our products are widely used in metallurgy, petroleum, glass, aluminum manufacturing, petrochemical industry, coal mine, papermaking, printing, textile printing and dyeing, mechanical, electronic manufacturing, automobile manufacturing, plastic machinery, electric power, water conservancy, water treatment/environmental protection, boiler heating, energy, power transmission and distribution and so on.

Manually Adjust—Enabld, Stroke LP Valve XXX.XX—Press the ADJ UP, ADJ DOWN keys from this screen to move the LP valve’s output current between 0-100% at a 5%/second rate. This allows both the actuator and valve to be tested for binding, play, resolution, linearity, and repeatability. Press the “YES” key at any time to allow a setting to be directly Entered. The message will display ‘Manual’ when the ENTER mode is allowed. When in the ‘Manual’ mode, select “ENTER” followed by the setting desired then press the “ENTER” key. This will step the actuator output to a specific position instantly. Press the “ADJ UP/DOWN” or “No” keys at any time to switch back to the “Enabld” mode. When calibration is complete, 0 to 100% valve position as displayed by the 505E must equal 0 to 100% actual valve travel. Press the SCROLL DOWN ARROW to step the next desired mode, or the “CLEAR” key twice to save changes and exit Calibration mode. 7. Press the CLEAR key twice to permanently save any minimum or maximum actuator settings into the 505E. If variables are tuned or changed but not stored in EEPROM by pressing CLEAR twice, then those changes will be lost if power is removed from the control or if the control receives a CPU reset. If changes are made to the minimum or maximum current values, they can be recorded on the Program Mode worksheets under the ‘Driver Configurations’ block. Pressing any available Run Mode key will exit the STROKE ACTUATORS/VALVE mode.

Exiting the STROKE ACTUATORS/VALVE mode by a RUN MODE key will not permanently save any calibration changes. CAUTION Press the CLEAR key twice to permanently save any minimum or maximum actuator settings into the 505E. If variables are tuned or changed but not stored in EEPROM by pressing CLEAR twice, then those changes will be lost if power is removed from the control or if the control receives a CPU reset. STROKE ACTUATOR/VALVE MESSAGES MESSAGE 7 MEANING Dsbld Stroke actuator/valve function is disabled Enabld Stroke actuator/valve function is enabled At Min Actuator output is set to the minimum value ( 0% ) At Max Actuator output is set to the maximum value ( 100% ) Manual Actuator output is in manual mode CAUTION Press the CLEAR key twice to permanently save any minimum or maximum actuator settings into the 505E. If variables are tuned or changed but not stored in EEPROM by pressing CLEAR twice, then those changes will be lost if power is removed from the control or if the control receives a CPU reset.
