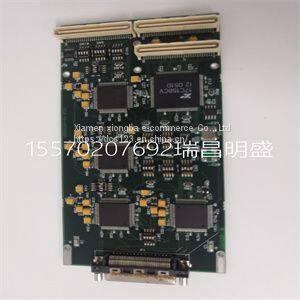

Module spare parts PMC422FP

Focus on DCS, PLC, robot control system and large servo system.

Main products: various modules / cards, controllers, touch screens, servo drivers.

Advantages: supply of imported original products, professional production parts,

Fast delivery, accurate delivery time,

The main brands include ABB Bailey, Ge / fuanc, Foxboro, Invensys Triconex, Bently, A-B Rockwell, Emerson, ovation, Motorola, xyvom, Honeywell, Rexroth, KUKA, Ni, Deif, Yokogawa, Woodward, Ryan, Schneider, Yaskawa, Moog, prosoft and other brands

No. controllers per control projects 32 No. of applications per control project 1024 No. of applications per controller 32 No. of programs per application 64 No. of tasks per controller 32 Number of different cycle times 32 Cycle time per application programs Down to 1 ms Flash PROM for firmware storage 2 MB 4 MB 4 MB 16 MB Power supply 24 V DC (19.2-30 V DC) max 5 % ripple acc. to IEC 61131-2 Power consumption +24 V typ/max 180/300 mA typ/max 180/300 mA typ/max 180/300 mA typ/max 250/430 mA typ/max 287/487 mA typ/max 287/487 mA typ/max 287/487 mA typ/max 660/750 mA Power dissipation typ 5.0 W typ 5.0 W typ 5.0 W typ 6.0 W typ 6.9 W typ 6.9 W typ 6.9 W typ 15.8 W Power Reservoir Internal 5 ms power reservoir, sufficient for the CPU to make a controlled power down Power supply connector Detachable 4-pole screw terminal block Redundant power supply status inputs Yes: 2 inputs designated SA, SB (Max 30 V, high level >15 V, low level <8 V) Built-in back-up battery Type: Lithium, 3.6 V, 0.95 Ah, size 1/2 AA, 0.3 g Lithium content No Real-time clock stability 100 ppm (approx. 1 h/year) 50 ppm Clock synchronization 1 ms between AC 800M controllers by CNCP protocol OPC Server subscriptions Five (5) OPC clients with five (5) OPC groups each can be connected to the OPC Server and have subscriptions on 40,000 different dintvariables with a cycle time of 500 ms OPC Server update rate 0.1 s - 1 hour (1 s default) OPC Servers per controller Max 3 OPC clients per OPC server Max 5 Event queue in controller per OPC client Up to 3000 events AC 800M transm. speed to OPC server 36-86 events/sec ,113-143 data messages/sec (PM864, 50 % load, 1 500 subscription queue) Comm. modules on CEX bus 1 12 12 12 12 12 12 12 Supply current on CEX bus Supply current: Max 24 V - 2.4 A (fuse 3.15 A fast, PM891 has an embedded auto fuse) I/O clusters on Modulebus with non-redundant CPU 1 el. + 1 opt. 1 el. + 7 opt. 1 el. + 7 opt. 1 el. + 7 opt. 1 el. + 7 opt. 1 el. + 7 opt. 1 el. + 7 opt. 0 el. + 7 opt. I/O clusters on Modulebus with redundant CPU NA NA NA 0 el. + 7 opt. 0 el. + 7 opt. 0 el. + 7 opt. 0 el. + 7 opt. 0 el. + 7 opt. I/O capacity on Modulebus with non-redundant/redundant CPU max 24/NA I/O modules max 96/NA I/O modules max 96/NA I/O modules max 96/84 I/O modules max 96/84 I/O modules max 96/84 I/O modules max 96/84 I/O modules max 84/84 I/O modules Modulebus scan rate 0 - 100 ms (actual time depending on number of I/O modules) Supply current on Electrical Modulebus Supply current: Max 24 V - 1.0 A (short circuit proof, fuse 2.0 A), Max 5 V - 1.5 A (short circuit proof) Not supported I/O capacity on PROFIBUS (remote I/O) Max 99 I/O stations (max 62 redundant I/O stations), max 24 I/O modules per I/O station (max 12 redundant I/O pairs) Ethernet channels 1 2 2 2 2 2 2 2 Ethernet interface Ethernet (IEEE 802.3), 10 Mbit/s, RJ-45, female (8-pole) 10/100 Mbit/s Control Network protocol MMS (Manufacturing Message Service) and IAC (Inter Application Communication) Control Network capacity Up to 23 000 Boolean/s (<475 boolean/message) with 50 % CPU application load Up to 140 000 Boolean/s (<475 boolean/message) with <5 % CPU application load
