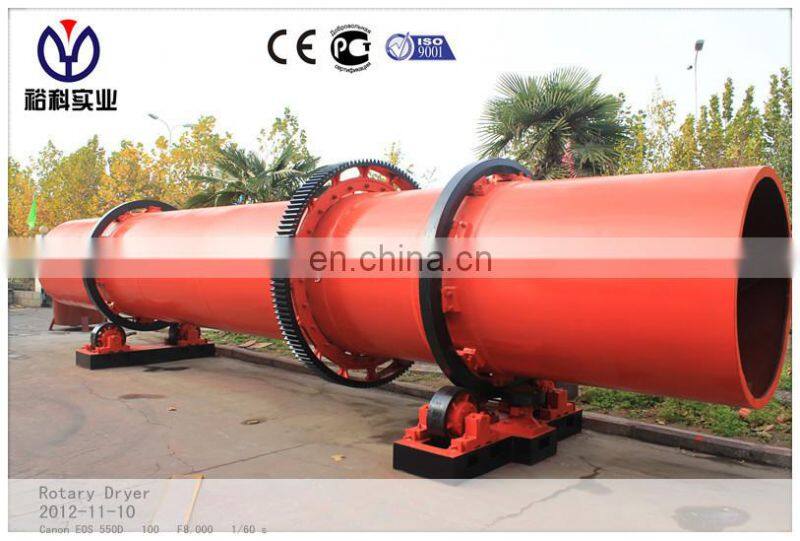

Shanghai Yuke Industrial Rotary Dryer for Cocoa Beans

         Shanghai Yuke Direct Industrial Rotary Dryer for Cocoa Beans

Introduction

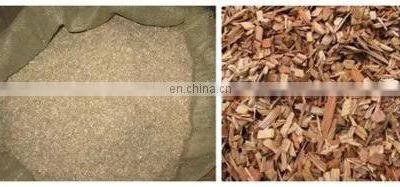

The drum dryer,also called horizontal dryer,is a kind of drying equipment used to minimize the moisture content of the material it is processing.Thanks to reliable running,flexible operation,strong suitability and high handling capacity,this rotary dryer is perfect for drying all kinds of mineral,chemical and biological materials such as coal slime,gypsum,mineral powder,sludge,coal ash,iron powder,fluorite powder,mill scale,iron powder,sand,wood chip,sawdust,chicken manure,fertilizer,palm slag,etc.It has been extensively used in metallurgy,building material,food,grain,chemical,coal,pharmaceutical and mining industry as well as other industries.

The materials handled by this drum drying machine contain little moisture of less than 5%(the moisture content is adjustable),hence showing convenience for transportation and improving waste utilization ratio.The drym dryer has been widely used in large and medium size enterprises at home and abroad.For example,Shandong Laiwu steel plant uses this industrial dryer to dry coal slime;Oman Suiar steel plant employ it to dry iron powder;American Michigan Technological University adopts this equipment to dry wood chip;Australian Coal Mining LLC utilizes it to dry raw coal.

Approved by the General Administration of Quality Supervision,Inspection and Quarantine and certificated by ISO9001,CE and Gost authorities,YUKE rotary drum dryer boasts high and reliable quality.In addition,we have applied for many drum dryer patents.

Features

1.High Drying Efficiency and Great Drying Effect

YUKE industrial dryer is a kind of efficient drying equipment designed for continuously drying large bulks of material by means of feeding from one end and discharge from the other end.

For those materials with high moisture and viscosity,our drum dryer for animal manure comes with special design on internal construction,thus ensuring highe drying efficiency.In addition,moisture content of the dried material can be flexibly adjusted and controlled according to the requirements of customer.Hence,our drum dryer can present excellent drying effect.

2.No Pollution,No Repulsive Smell and No Noise

Our industrial rotary dryer is characterized by enclosed structure design,thus carsing no air pollution and noise pollution during process.In addition,the drum dryer is provided with multilevel dust removing device and deodorization device,thereby reducing environment pollution and eliminating repulsive smell from the exhausted gas.

3.Wide Application and low Environment Requirement

YUKE industrial drum dryer has been widely used in various countries around the world.It can perfectly adapt to different environments of each country by voltage and engineering design adjustment.It can also withstand various severe environments,including freezing cold and high temperature as well as highland weather.

4.Easy Installation

Our drum drying machine can be placed on the flat area for direct use,thus keeping easy instrallation as well as convenient transportation and transference.

5.Simple Operation and Low Maintenance

YUKE drum dryer features full automatic or semi-automatic design,so it can effieiently operate with a few labors.Additionallly,it needs very low maintenance.Regular maintenance according to instruction is the only thing you should do.

6.Definite Safety

Enclosed design of drive parts and specially designed observation unit will assure you definite safety during equipment running and inspection.

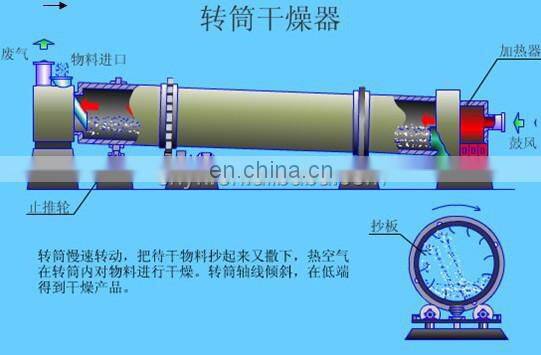

Working Principle

How does YUKE Drum Dryer work ?

The wet stock will be firstly conveyed to the hopper by belt conveyor or bucket elevator.Then,the materials will be fed into the feed end through feeding pipe.The slope angle of the feeding pipe is bigger than the natural angle of the material so that they can smoothly flow into the dryer drum.

The rotary drum slopes slightly.The materials fed into the drum from the higher end (feed end) will countercurrent contact with the heating carrying agent(heated gas or flue gas)blew into the drum from the lower end (discharge end).There is another situation that the material and heated gas enter the drum together from the lower end and implement co-current flow contact.

As the drum rotates,the material will move toward lower end under gravity.During the moving process,the material will be heated and dried directly or indirectly by the heat-carrying gas,and then conveyed our of the drum by belt conveyor or screw conveyor.

Specially,lifting plates are mounted on the internal wall,for the purpose of lifting the materials and scattering them,enabling the materials to fully contact with the heated gas so as to accelerate drying rate and facilitate material moving.

Before moving through the dryer drum,the heat-carrying gas will be processed by cyclone dust collector to separate the material blend in the gas.In addition,bag filter or dust washer can be used to further reduce dust content in the gas.

Technical Parameters

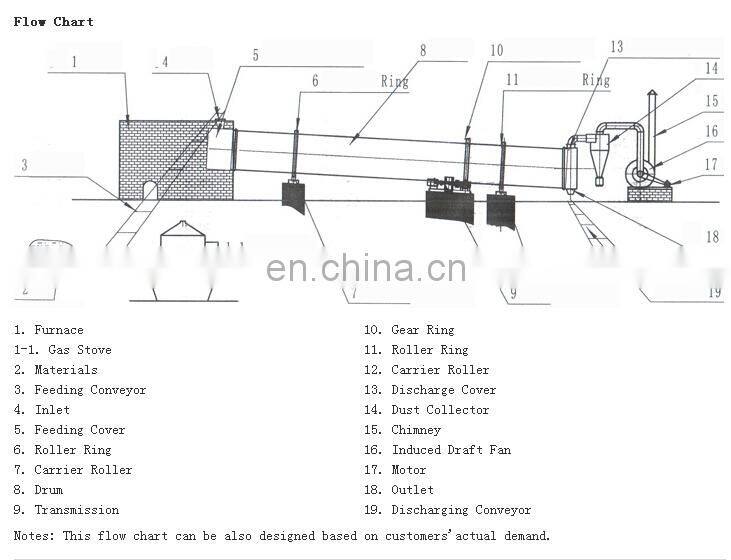

Flowchart

YUKE Profile

YUKE is a trustworthy and specialist designer and manufacture of briquetting machine,briquetting press,industrial dryer,etc.We can offer the optimal briquetting and drying solutions for processing industrial wastes.The industrial wastes and dust processed by our machines are convenient for recycling and transporting,thus improving wastes utilization ratio and enabling you to make full and effective use of resources.YUKE briquetting equipment and dryers are extensively used in all kinds of industrial enterprises,including coal briquette,steel plant,power plant,chemical plant,cement plant,to name a few.In metallurgy,chemical,refractory material,energy,transportation and heating industries,they are also greatly popular..

YUKE bosts complete processing equipment,great technology strength and scientific management method.Following strictly the standards of ISO9001,we have established a perfect quality test system for products and ourselves.Now,our products have optained the certificates of CE,GOST,and other international authority bodies.Additionally,our briquetting systems and drying equipment developed and manufactured by mutual efforts with National Electric Power Research Institute and Machinery Research Institute can better serve country construction and meed demand of customers.

Owing to our powerful sales team and overseas market development team,YUKE products have been a nationwide hot sale, and exported to various countries and regions around the world such as India,Malaysia,Vietnam,Philippines,Indonesia,Thailand,Ressia,Africa,South America,Europe,

Etc.In the industry,our products have won great popularity and recognition among users.

As a professional and responsible machinery manufacturing enterprise,YUKE adheres to concept that”Love our customers,Create wealth and fun to them”.Therefore,models and specifications of the machine are confirmed according to the actual demands of our customer.Furthermore,we also provide custom-made service,production line design and free training services.Our follow-up service and round-the-clock after-sale service will assure the equipment stable operation,minimizing your construction cost.

Cooperation with Domestic and Overseas

RFQ

place order or send inquiry we would like to know the following  information:

-What kind of material you are going to dry?

-Capacity per hour you need?

-Moisture before and after dry you required?

-Fuel available for the dryer?

Our Services

We can provide you the new way to use few fuel so that you will get low drying cost.
We can provide the dedusting equipment to ensure the wood chip rotary dryer won't harm our environment.
Drwaings Supply and Technical Guidance We could provice the equipment instralling drawing and technical guidance

         CHOOSE SHANGHAI YUKE ,YOU CAN'T GO WRONG!
