Gold Wash Machinery Mineral Gold Sand Submerged Spiral Separator Classifier Machine
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Gold Processing Washing Plant/Rotary Trommel Screen/mobile Drum Scrubber/sand,rock Gold Separator Wash Machine
-
Salt Washing Machine Including Sand Washer
-
Spiral Sand Washer Sand Washing Machine
-
Professional Manufacturer Supply Rotary Drum Ore Stone Sand Washer
-
Building Industry Concrete Aggregate /fine Sand Washing Machine
-
Rotary Drum Ore Washing Machine for Sand and Gravel Wash Plant
Product Description
Gold Wash Machinery Mineral Gold Sand Submerged Spiral Separator Classifier Machine

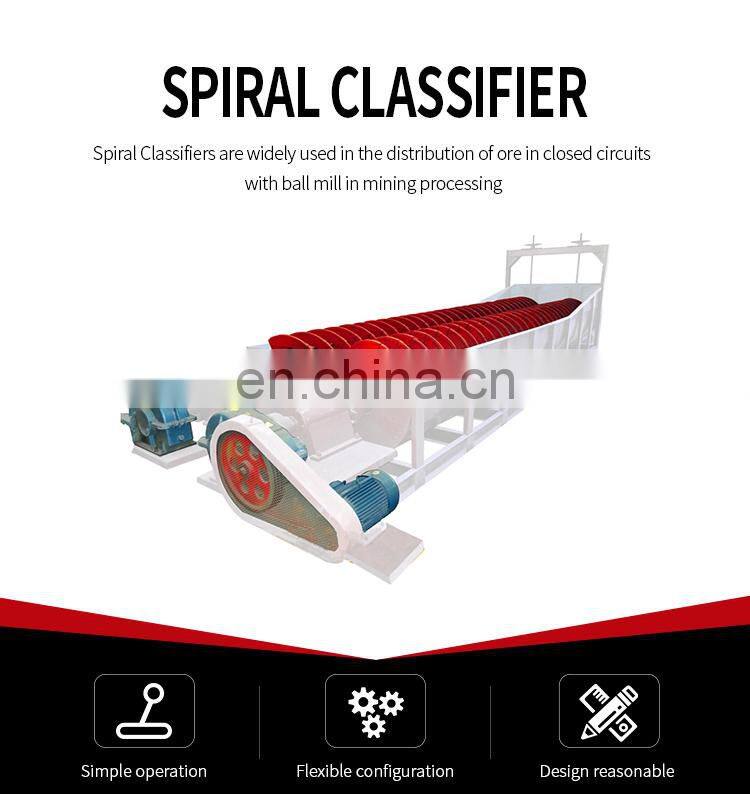

Spiral classifier is one of beneficiation equipment, based on user requirements, it can be divided into single and double spiral classifier. Depend on specific gravity of solid particles, so different sedimentation velocity in a liquid principle, spiral classifier is a mechanical grading equipment. Feed mill can grind the powder level in the filter, and then use the coarse material spiral piece rotary vane screwed mill feeder to filter out fine material discharged from the overflow tube.
According to the difference in sedimentation rate of mineral particles and mud, the particle sizes of ores with 1.5mm-0.03mm are classified. Waste mud or water for ore sand can be separated from the ores. It’s also usually applied to ore washing, desliming and dehydration and so on.
Advantage
1. Low power cosumption,high classifying efficiency
2. Heavy duty, long workinglife
3. Powerful manual control and electric control lifting device
4. Wide choice of weir height, rigid tank and substructure
1. Low power cosumption,high classifying efficiency
2. Heavy duty, long workinglife
3. Powerful manual control and electric control lifting device
4. Wide choice of weir height, rigid tank and substructure
spiral separator classifier / spiral sand wash machine / stone washer machine

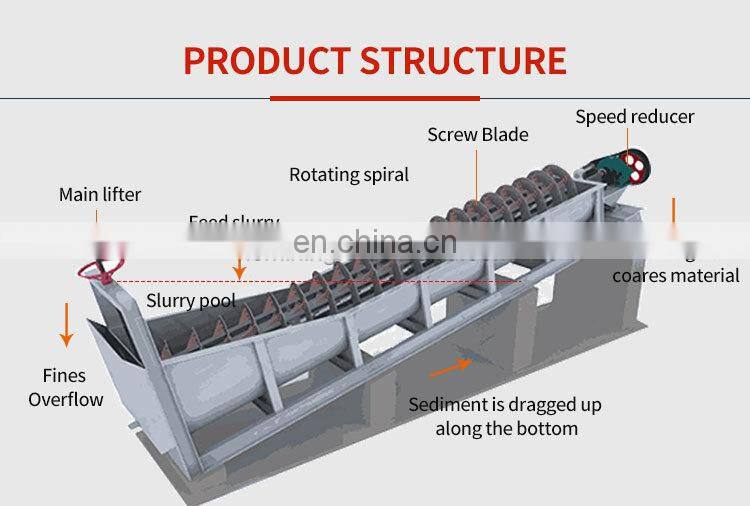

Working principle
Different solid granularities have different gravity and thus have different dropping speed. The fine ore granularities floating in the water will overflow and the big ones will sink to the bottom and discharge from the upper part by spiral pushing.
It can filter the granularities from the machine and then spin the rough particles to charging part by spiral vane and discharge the fine granularities from the overflow pipe. The base of the machine adopts a channel steel and the body adopts welded steel plate. The water inlet of spiral axle and axle head adopt pig iron cover for wear proofing and long life operation. The lifting equipment has two types, manual control and electric control.
Technical Parameter
Model | Spiral diameter(mm) | Speed of Spiral(r/min) | Power (kw) | Slope (°) | Power(KW) | ||
Sand Return (t/h) | Overflow (t/h) | ||||||
FG500 | 500 | 8-12.5 | 6-11 | 32 | 12-18 | 1.1 | |
FG750 | 750 | 6-10 | 11-24 | 65 | 12-18 | 3 | |
FG1000 | 1000 | 5-8 | 25-45 | 110 | 12-18 | 5.5 | |
FG1200 | 1200 | 4-6 | 50-80 | 155 | 12-18 | 7.5 | |
FG1500 | 1500 | 4-6 | 70-115 | 235 | 12-18 | 7.5 | |
FG1800 | 1800 | 2.5-6 | 100-190 | 310 | 12-18 | 11 | |
FG2000 | 2000 | 3.6-5.5 | 160-230 | 400 | 12-18 | 15 | |
spiral separator classifier / spiral sand wash machine / stone washer machine
spiral separator classifier / spiral sand wash machine / stone washer machine

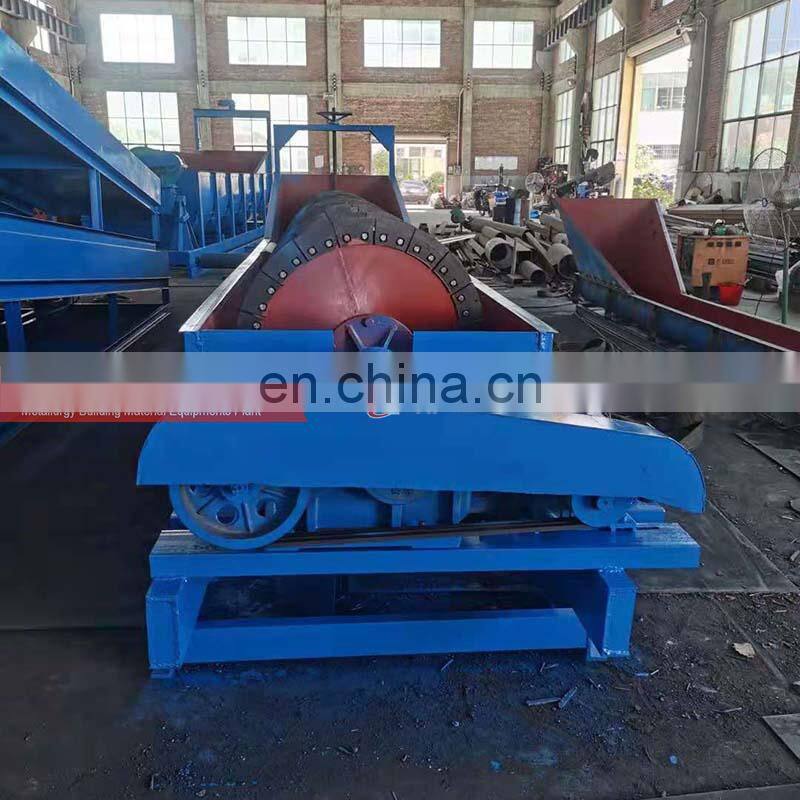

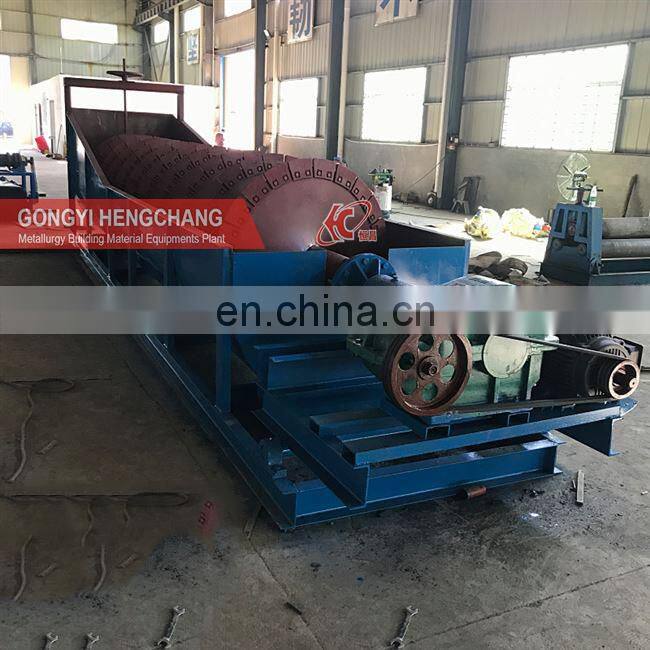

The spiral classifier tank is heavy plate with strong structural base. The extra heavy shaft has an improved submerged bearing.
The greatest improvements, however, are found in the drive-unit which has been strengthened and improved over all other classifiers. A specially designed classifier reducer eliminates the “over – hang” or cantilevered load normally found where the reducer shaft carries the pinion. The Classifier Reducer has an outboard bearing integral with the reducer base which provides positive alignment of the bevel gears.
Company Profile: About HENGCHANG
Hengchang headquarters is located in the industrial park in Gongyi City. It covers a total area of 150,000 square meters, including 100,000 square meters of standarized workshop. There are more than 200 sets of various large and medium-sized metal processing lathe, riveting machine, welding equipment and assembly equipment. We have more than 300 workers, including more than 20 middle and senior technicians. Hengchang is mainly focus on 4 series products: stone crusher machines, sand making equipment, powder grinding mills, mineral processing equipment and their spare parts. Every year, Hengchng can turn out 1,000 sets of crushers and 10,000 tons of crusher parts.
Customer Visit & Our Service
(A) Pre-sale services:
Act as a good adviser and assistant of clients, enable them to get rich and generous returns on their investments.
1. Select equipment model;
2. Design and manufacture products according to clients' special requirement;
3. Train technical personnel for clients;
4. Services during the sale;
(B)Provide considerate services to minimize clients' worries:
1. Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3. Train the first-line operators;
4. Examine the equipment;
5. Take initiative to eliminate the troubles rapidly;
6. Provide perfect service;
7. Provide technical exchanges...
(C).After-sale services:Provide considerate services to minimize clients' worries:
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3. Train the first-line operators;
4. Examine the equipment;
5. Take initiative to eliminate
the troubles rapidly;
6. Provide perfect service;
7. Provide technical exchanges..
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3. Train the first-line operators;
4. Examine the equipment;
5. Take initiative to eliminate
the troubles rapidly;
6. Provide perfect service;
7. Provide technical exchanges..

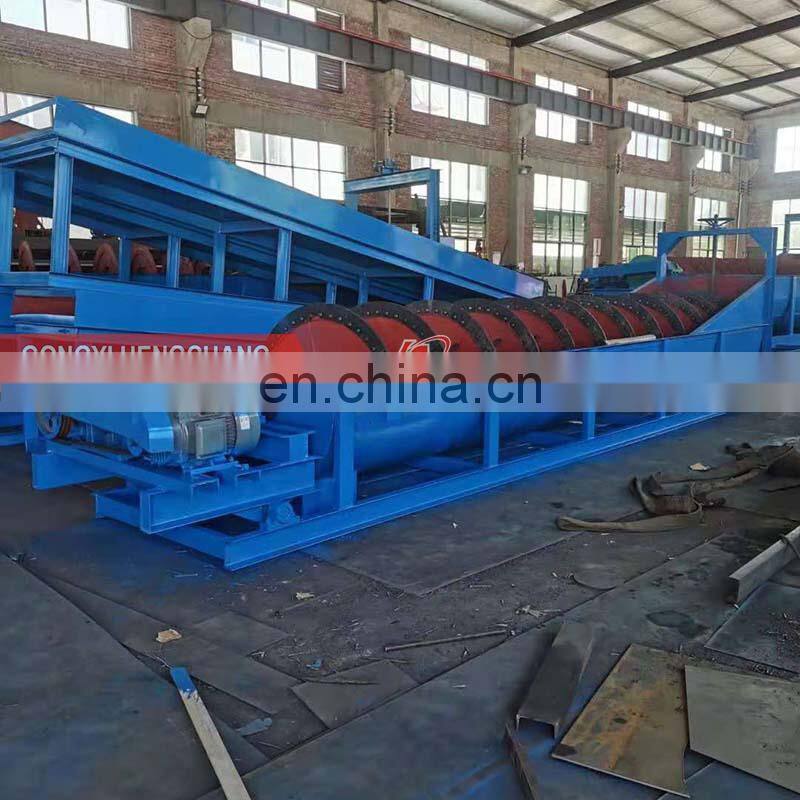

Our Workshop
1.We are factory and be able to give you the lowest price than market one;
2.Our products have been exported to over 80 countriesand widely used in global mining and construction industry;
3.We have a professional after-sale service team to promptly and thoroughly solve your problems;
4.Provide free process design.
4.Provide free process design.

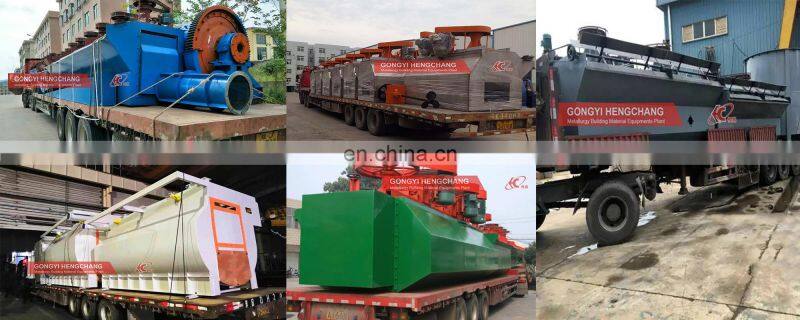

Packaging Details:
Standard export packing, Spare parts in wooden case, big machines loaded in
container,large machines use nude packing, cover with plastic cloth. We export through QingdaoPort, also can be nominated by customer. We have superior cargo agent to arrange thesea shipment for each client, competitive price, secure transportation.
Delivery Time:
We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 10 to 20
working days.
spiral separator classifier / spiral sand wash machine / stone washer machine
FAQ
Q: For providing you the suitable quotation we need to know the following information:
A:
1. What is the raw material?
2. What is the capacity per hour you required ?
3. What is the maximum input size of the raw material ?
4. What is the final briquettes size and shape you want? Once we get your answers, I can provide you the best quotation immediately.
Remarks: The price will depend on different models.
Q: What about Warranty of the products ?
A: Gongyi hengchang machinary grants our customers a twelve-month-period warranty from the date of delivery for machines exported from us. During the warranty period, in case any defect of material or workmanship occurred with spare parts in norma operation,we will at our discretion replace or repair the defective parts freely.
A:
1. What is the raw material?
2. What is the capacity per hour you required ?
3. What is the maximum input size of the raw material ?
4. What is the final briquettes size and shape you want? Once we get your answers, I can provide you the best quotation immediately.
Remarks: The price will depend on different models.
Q: What about Warranty of the products ?
A: Gongyi hengchang machinary grants our customers a twelve-month-period warranty from the date of delivery for machines exported from us. During the warranty period, in case any defect of material or workmanship occurred with spare parts in norma operation,we will at our discretion replace or repair the defective parts freely.
