Best Price Rotary Kiln for Cement/Lime/Limestone Plant
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Rotary Kilns Equipment for Small Cement Plant/Cement Kiln Good Price
-
Factory Price Rotary Kiln 400tpd 200-500tpd Lime Cement Plant Manufacturing Machine
-
Capacity 0.9-42 Tph Limestone Rotary Kiln Factory Rotary Kiln Price Lime Rotary Kiln
-
Lime Plant Making Machine Cement Production Machinery Line Prices Rotary Kiln in CHINA
-
Large Capacity 300-500 Ton Per Day Industry Cement Rotary Kiln for Cement Plant
-
Rotary Type Chrome Ore/Nickel Ore Oxidative Roasting Bauxite Kiln
Product Description
Products Description
Best Price Rotary Kiln for Cement/Lime/Limestone Plant
Rotary kiln refers to rotary calcining kiln, which belongs to building materials equipment category. According to the appearance,it can be divided into variable diameter rotary kiln and diameter rotary kiln. According to the purpose, it can be divided into cement rotary kiln, ceramsite sand rotary kiln, kaolin rotary kiln, lime rotary kiln, etc. According to different energy supply effects, it can be divided into gas rotary kiln, coal-fired rotary kiln, and mixed fuel rotary kiln.

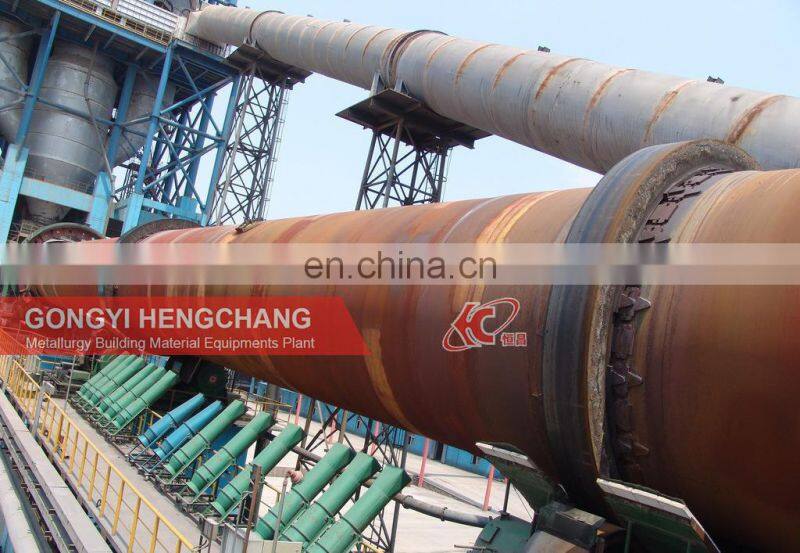

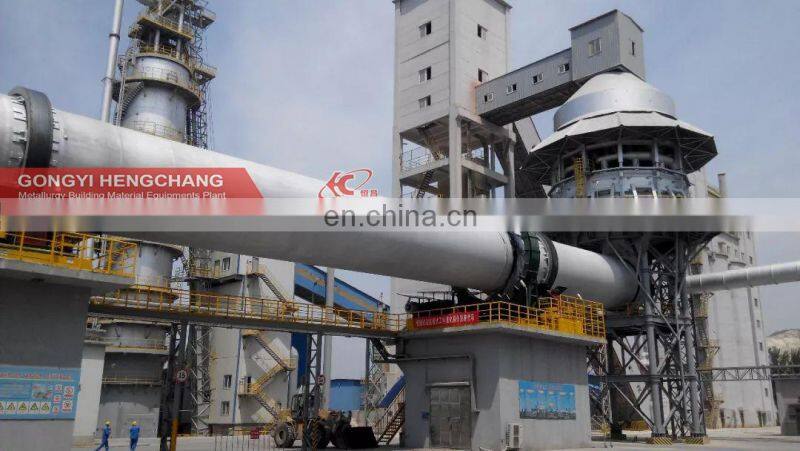

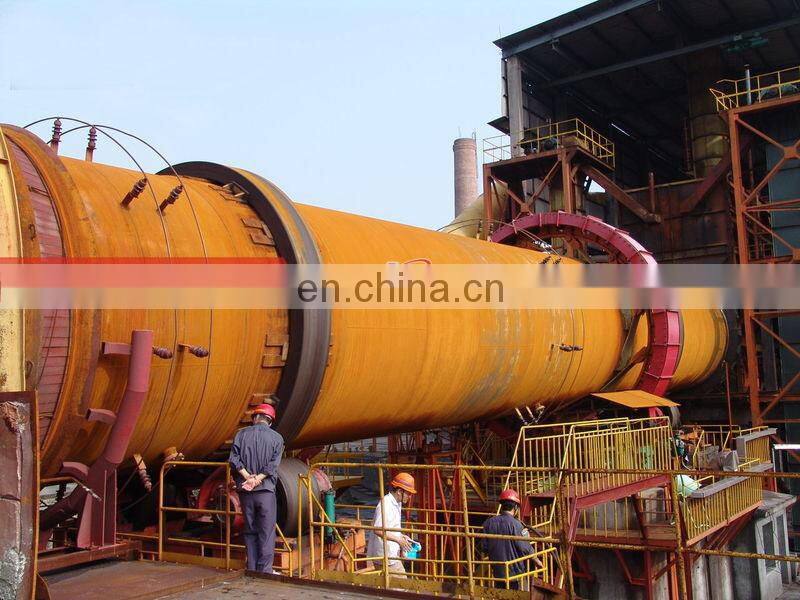

PRODUCT EXHIBITION
Performance Characteristics:
1.The rotary kiln shell design fully take into consideration of the corner at shell flexible supporting to extend the lifetime of refractory bricks and castings.
2. Adopt supporing roller bearing with big diameter and small ratio between length and diameter to improve the reliability. The bearing is automatic self-sligning bearing.
3. The better sealing effect of new type open gear hood sealing type.
4. The spring lamination overlying type lexible sealing, double layer spring lamination sealing increase the heat insulation layer to improve the reliability and lifetime..
1.The rotary kiln shell design fully take into consideration of the corner at shell flexible supporting to extend the lifetime of refractory bricks and castings.
2. Adopt supporing roller bearing with big diameter and small ratio between length and diameter to improve the reliability. The bearing is automatic self-sligning bearing.
3. The better sealing effect of new type open gear hood sealing type.
4. The spring lamination overlying type lexible sealing, double layer spring lamination sealing increase the heat insulation layer to improve the reliability and lifetime..
WORKING PRINCIPLE
The kiln is a cylindrical vessel, inclined slightly to the horizontal, which is rotated slowly around its axis. The material to be processed is fed into the upper end of the cylinder. As the kiln rotates, the materials gradually move down towards the lower end, and may undergo a certain amount of stirring and mixing. Hot gases pass along the kiln sometimes in the same direction as the process material (co-current), but usually in the opposite direction (counter-current). The hot gases may be generated in an external furnace, or may be generated by a flame inside the kiln. Such a flame is projected from a burner-pipe (or 'firing pipe') which acts like a large burner. The fuel may be gas, oil or pulverized coal.
PRODUCT PARAMETERS
Specification | Rotating Speed (r/min) | Obliquity (%) | Capacity (t/h) | Speed Ratio of Reducer | Motor power (kw) | Motor Rotating Speed (r/min) | Support Number | Weight(t) |
Φ1.9/1.6×36 | 0.53-1.59 | 4 | 2.5-3 | 48.58 | 30 | 1200/400 | 3 | 53 |
Φ2.1/1.8×36 | 0.5-1.51 | 4 | 4 | 163.36 | 30/10 | 1410/470 | 3 | 75 |
Φ1.2×25 | 0.5-1.6 | 3 | 0.5-1.2 | 40.17 | 22 | 1200/120 | 3 | 34 |
Φ1.6×32 | 0.158-0.258 | 3 | 1.5-2.5 | 48.57 | 15 | 1200/120 | 3 | 46.82 |
Φ1.8×45 | 0.66-1.98 | 4 | 3.5 | 163.36 | 30/10 | 1410/470 | 3 | 80 |
Φ2.2×50 | 0.125-1.25 | 3.5 | 4 | 157 | 30 | 1320/132 | 3 | 130.71 |
Φ2.5×50 | 0.516-1.549 | 3.5 | 5.5 | 99.96 | 55 | 1320/440 | 3 | 167.5 |
Φ3×48 | 0.3309-3.309 | 3.5 | 35 | 32.11 | 90 | 1000/100 | 3 | 237 |
Φ3.2×50 | 0.398-3.975 | 3.5 | 50 | 40.85 | 190 | 1500/150 | 3 | 263 |
Φ3.3×52 | 0.391-3.91 | 3.5 | 50 | 27.707 | 190 | 1000/100 | 3 | 280.8 |
Φ4×60 | 0.396-3.96 | 3.5 | 104 | 34.601 | 315 | 1000/100 | 3 | 487.5 |
Φ4.2×60 | 0.4165-4.165 | 3.5 | 116 | 35.526 | 420 | 1000/100 | 3 | 576.1 |
Φ4.3×62 | 0.398-3.98 | 3.5 | 125 | 35.714 | 420 | 1000/100 | 3 | 598.5 |
Φ4.8×74 | 0.35-4 | 4 | 208 | 42.226 | 630 | 1000/100 | 3 | 849 |

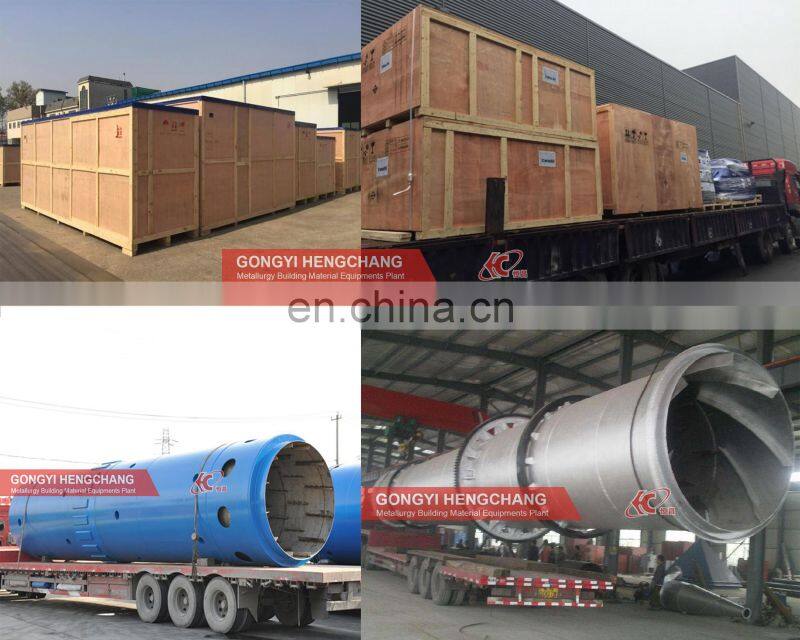

Packing and delivery
Packaging Details: Standard export packing, Spare parts in wooden case, big machines loaded in container,large machines use nude packing, cover with plastic cloth. We export through QingdaoPort, also can be nominated by customer. We have superior cargo agent to arrange thesea shipment for each client, competitive price, secure transportation.
Delivery Time:We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 10 to 20 working days.
Customer Visit & Our Service
1. Pre-sale services:
Act as a good adviser and assistant of clients, enable them to get rich and generous returns on their investments.
1. Select equipment model;
2. Design and manufacture products according to clients' special requirement;
3. Train technical personnel for
clients;
clients;
2.Services during the sale:
Respect clients, devote ourselves to improving the total value of clients: 1.Pre-check and accept products ahead of delivery;
2.Help clients to draft solving plans;
3.After-sale services:
Provide considerate services to minimize clients' worries:
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
2.Install and debug the equipment;
3. Train the first-line operators;
4. Examine the equipment;
5. Take initiative to eliminate
the troubles rapidly;
the troubles rapidly;
6. Provide perfect service;
7. Provide technical exchanges...
Our Workshop
We are a real manufacturer, not a trading company. We have the best after-sales service. The complete set of markene production is produced by ourselves, without the need to buy different machine connection product lines from different manufacturers.
Company Information
Gongyi Hengchang Metallurgy Building Material Equipments plant was built in 1992, a professional manufacturer specializing in the production of coal slurry dryer, coal slime dryer , coal dryer ,sawdust dryer , fly ash dryer , slag dryer ,vinasse dryer and so on.
We have professional engineers and experienced workers in our factory, we ensure that we supply good quality and good price to our customers.
We have professional engineers and experienced workers in our factory, we ensure that we supply good quality and good price to our customers.
FAQ
Q: Why we believe in Gongyi hengchang company?
A:1.More than 28 years’ experience.
2.Hengchang is the leading professional supplier of solution, equipment’s and service for crushing and grinding industry.
3.Products achieved ISO9001:2000 quality management certificate and EU CE certificate.
Q: Delivery time
A: The lead time is 10-20 days, Delivery time will vary depending on the type of the machine, shipping method selected and part availability.
Q: Payment terms
A: Accepted Payment Type: T/T, L/C, Western Union, Cash and so on. After sign the contract,
pay the 10%-30% deposit of total purchase price and pay the full payment before delivery.
Q: what will you do if the machine is broken down?
A: The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.
Q: What should i do if I want to get a best quotation?
A: If you want a suitable type for you, please let us know your material and capacity.
