China Manufacturers Sale Spiral Chute Mining Equipment for Coal Wash Plant

 Manufacturers Sale Spiral Chute Mining Equipments for Coal Wash Plant

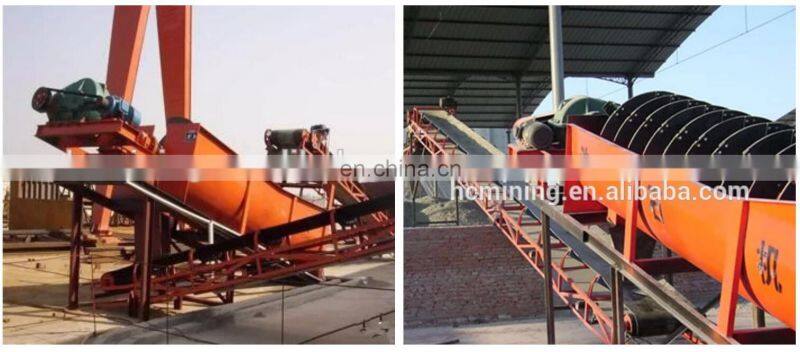

   LXS series spiral sand washing machine is applicable to the construction site, sand factory, glass factory, hydropower station, high-speed railway and highway for sand washing and sand classification and dehydration. It is also applies to ore dressing plant for the ore classification after ore grinding. XLS series have the advantages of low power consumption and high neatness.

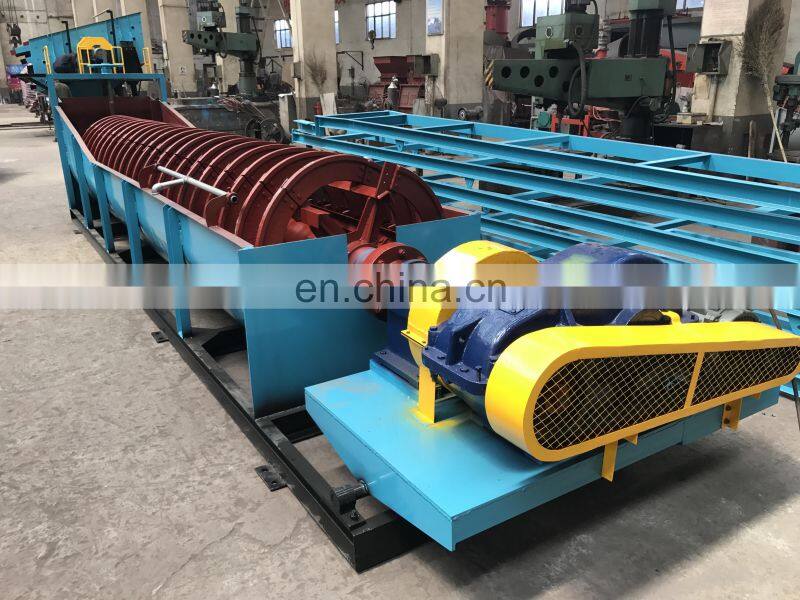

Spiral sand washer can be used to clean sand, gravel, or for grading equipment. It is widely used in cleaning the materials containing a large quantity of mud obvious. It's a good seal structure, fully enclosed gear, efficient, durable, good dehydration effect, the power consumption is small, fine products remain stable.

Its seal structure, the use of closed transmission device, has high efficiency, durable, dehydration effect is good, small power consumption, and fine particle characteristics of products remain stable.

Spiral sand washing machine advantages

1. High capacity

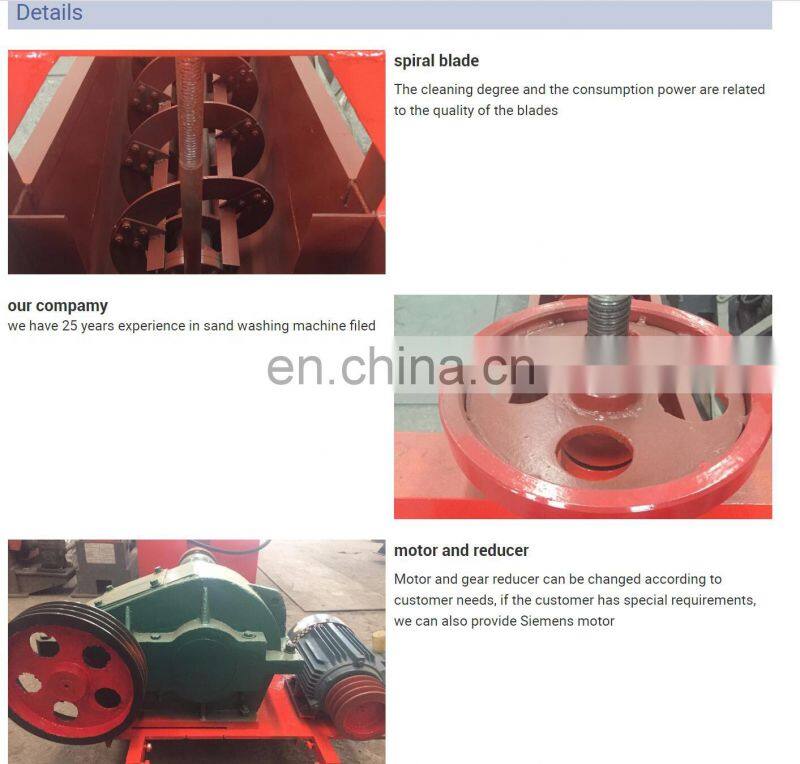

2. Heavy duty conveying paddles

3. Fabricated with heavy duty tubs

4. Oversize bearings and gears

5. Thick-walled shafts

6. Lower end bolted to fully machined stub shaft. Upper end mounted through flexible coupling to output shaft of gearbox

7. The compound drive divides the operating load over an optimal combination of oversized helical and spur gears

Continuous grinding and abrading log washer paddles

8. Adjustable water discharge gates on both sides of lower end of the tub

working principle of Spiral sand washing machine :

The material pours in the from the end of input,the spiral impeller rotates by the driven of the motor and the reducer,and then push the material inside the hopper close to the end of output.Thus,under the action of being advanced,mixed and the flushing water,the mud wrapped on the material and the impurity go separately.Finally,the separated fine sands are discharged from the discharging port under the advancing movement of the spiral.Thus,the continuous work of washing sand is finished again and again.Promptly carries off the impurity and thesmall proportion foreign matters,and discharge from the overflow port tank washer,completes the cleaning action.The clean sand and crushed stone is carried off by the leaf blade,and ids finally poured into the discharge chute from the revolving impeller,completes the cleaning action.

Application of Spiral sand washing machine:

Spiral sand washing machine is used to removing the dust in sand and grading sand for the metallurgic, construction material and hydropower industries. It is suitable for the washing work of the fine grain and coarse granularity material.

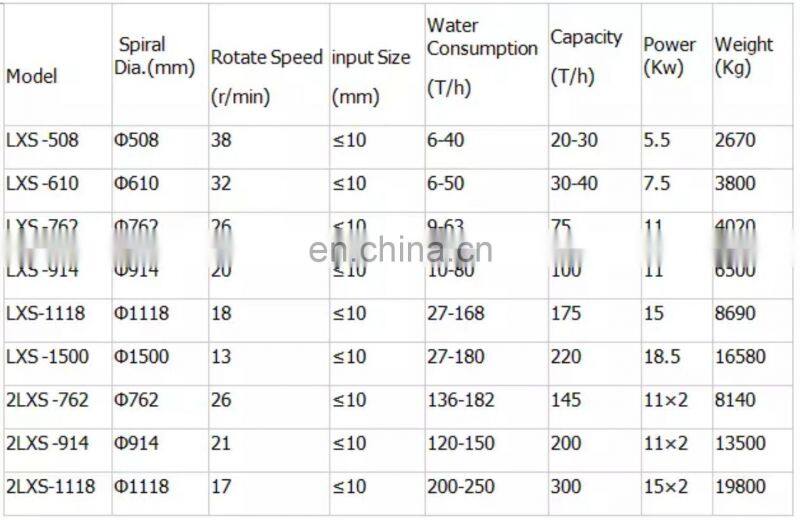

Technical Parameters of spiral sand washing machine:

Our service

1) Installation and guidance
When the machine arrives at your company, we will dispatch our technicians to your company to guide the installation and commissioning at site. User should pay for the following fees air tickets, boarding and lodging and traffic in client's factory.

(2)Technical training
We provide free technical training service to your stuff. Training content contains the main work principle of machine, operating regulations, maintenance methods and steps, safety, etc.

(3)Warranty:
Three guarantees of our product quality, warranty for one year (not include man-made damaged). We will maintain the machine for free for the quality problem. If the damage is caused by your improperly operation, the cost of the maintenance burden by you. we also provide you the  life-long follow-up service.

FAQ:

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment ?

A: 30% advanced payment by T/T, balance paid before shipment.

Why Choose Us?

1.We are true Manufacturer.

2. Assessed Gold Supplier.

3.Inspected by the Inspection Institution of ISO CE Certification.

4.100% QC inspection Before Shipmeng.

5.Best Quality & Best Service with Competitive price
