High Standard Good Hardness Vertical Compound Stone Cone Crusher Manufacturer
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
100 T/H Fine Impact Crusher Machine for Limestone Coal Crushing Plant For Sale
-
Best Seller High Quality Hammer Crusher Manufacturer Supply
-
Laboratory Stone Crushing Rock Gold Crushing Machine Gold Ore Crushing PE250X400 Diesel Primary pe 400*600 Stone Crushers Jaw
-
Customized 2pg Rock Stone Crushing Machine Double Coal Roller Crusher Roll Mill Stone Crusher Machine Price
-
Mining Machine Cast Steel Wear Jaw Cone Crusher Spare Parts
-
Copper Iron Mineral Stone Jaw Crusher
Product Description
Product Description

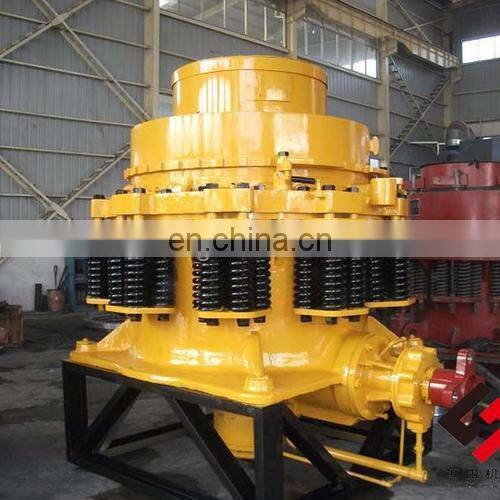

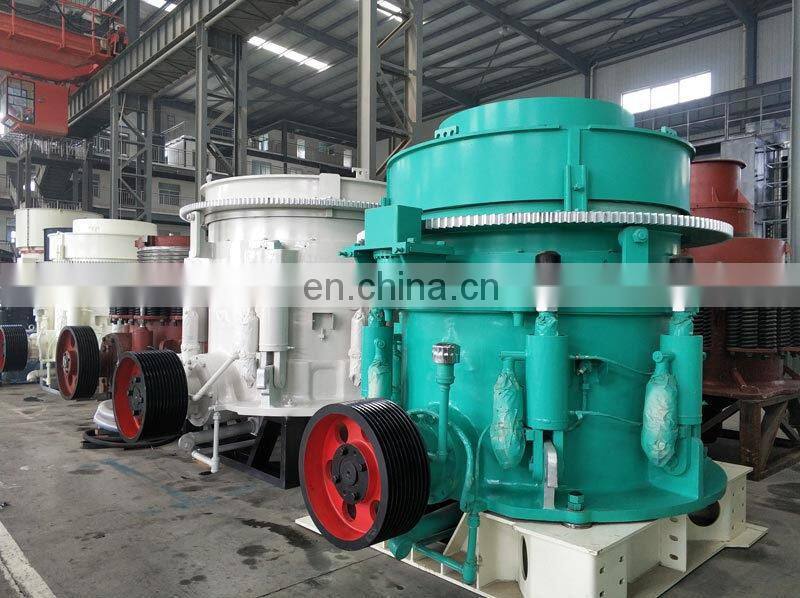

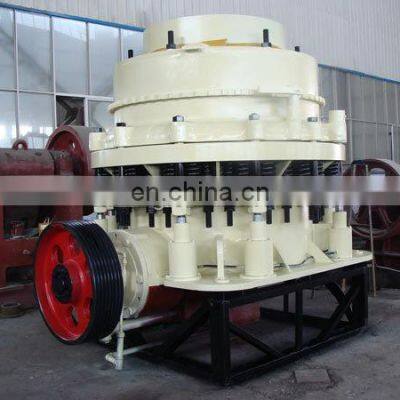

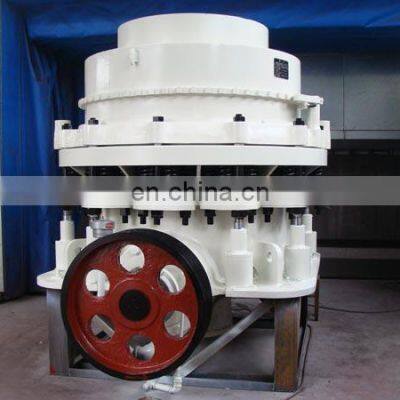

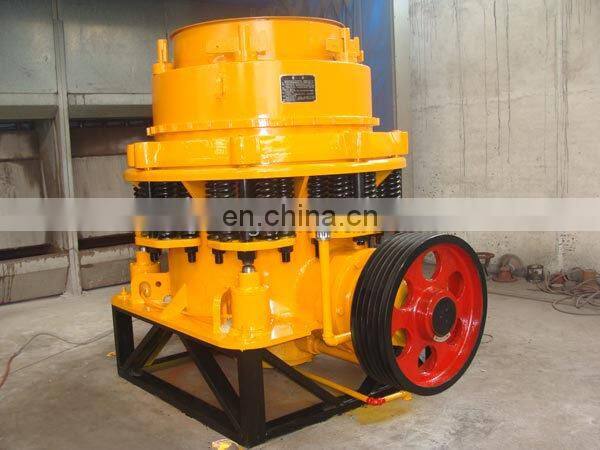

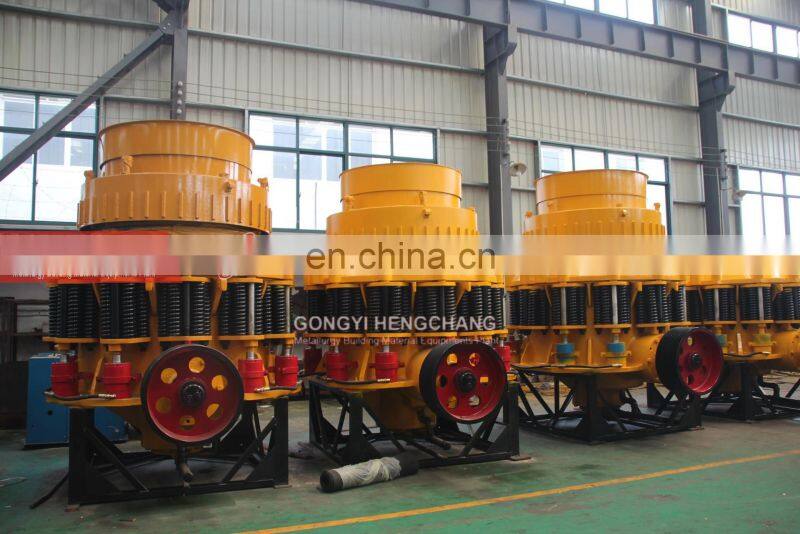

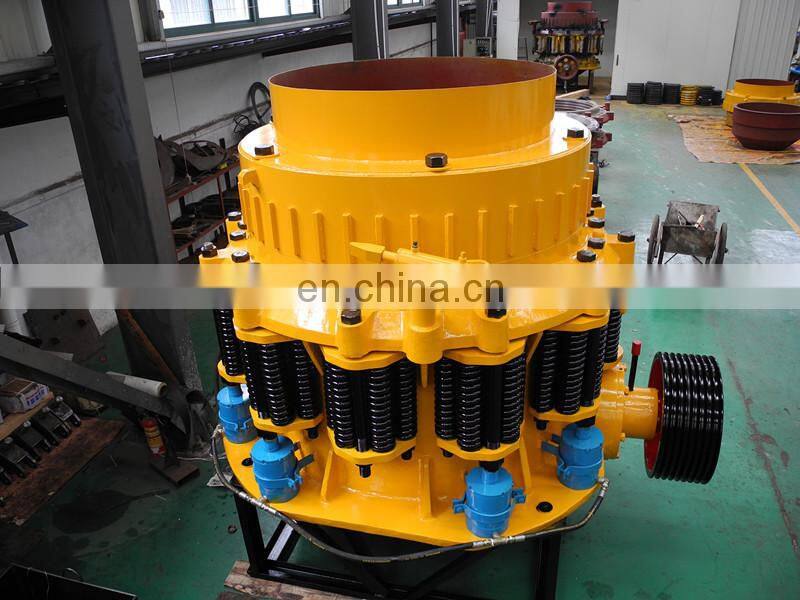

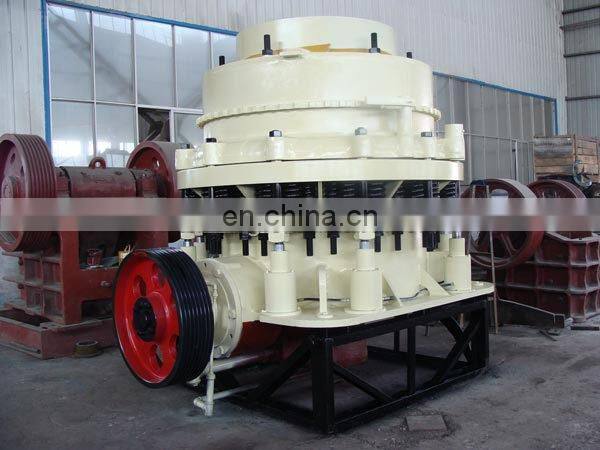

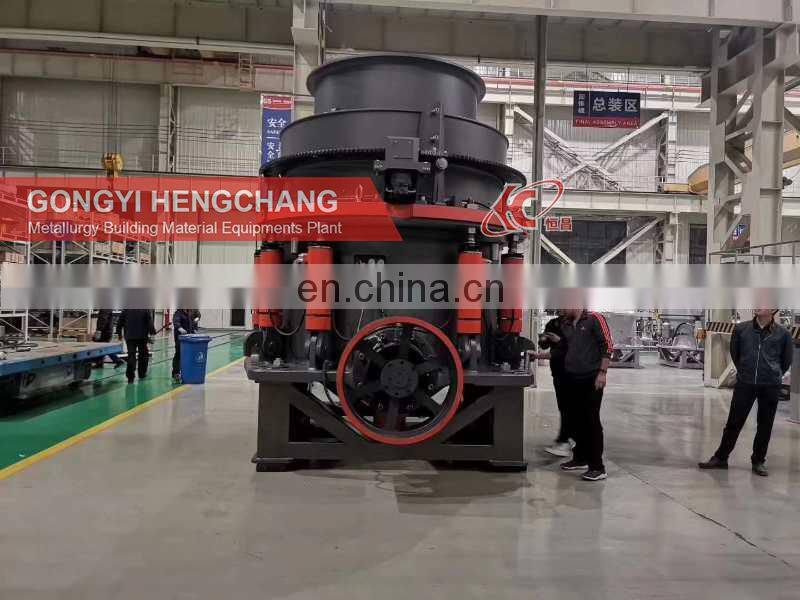

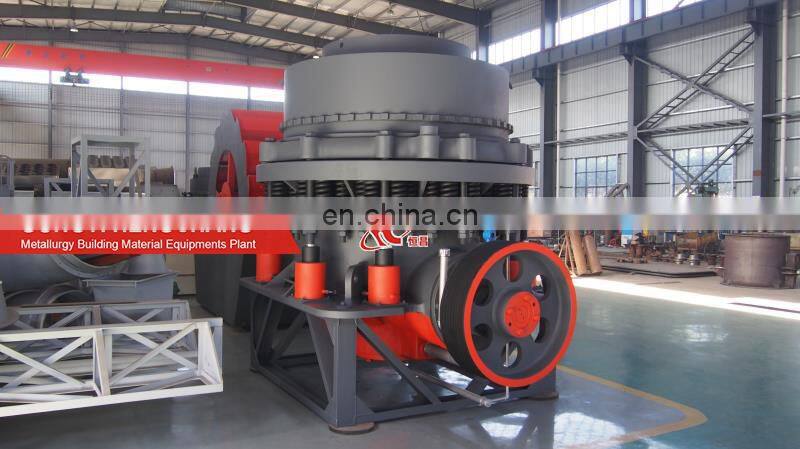

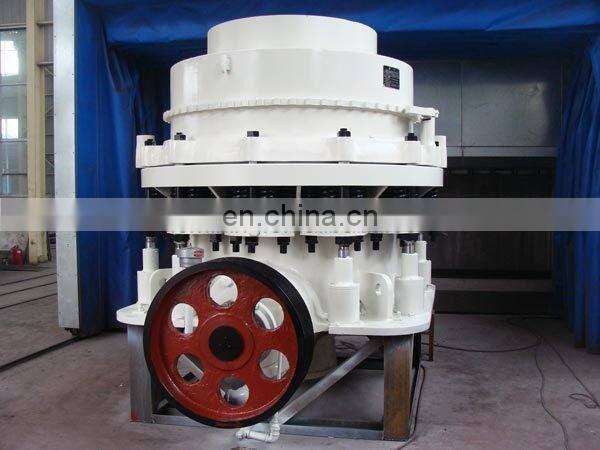

High Standard Good Hardness Vertical Compound Stone Cone Crusher Manufacturer
Cone crusher for sale is a kind of crusher machine. Because of its high crushing ratio, high efficiency, low energy consumption, uniform crushed particle size, cone crusher machine is usually used for medium crushing and fine crushing. The cone crushers can crush the hard and medium hard ores and rocks, such as, iron ore, copper ore, limestone, quartz, granite, basalt, diabase. In general, the cone stone crusher Philippines has four different types, ordinary cone crusher, Simmons spring cone crusher, single cylinder hydraulic cone crusher and multi-cylinder hydraulic cone crusher. The main difference between them is the over-iron protection device, discharge adjustment device, transmission device.

Features Of Vertical Compound Stone Cone Crusher
1. High crushing ratio and high production efficiency;
2. Less wearing cone crusher parts and lower running cone crusher cost. All parts are wear-resistant protection, maintenance cone crusher price will be reduced to the minimum, and the general service life can be increased by more than 30%;
3. Laminated crushing and excellent particle shape. The cone crusher improves the proportion of fine materials and the cube content of the product, and greatly reduces the needle-sheet materials;
4. Hydraulic protection and hydraulic cavity clearing, a high degree of automation, and short downtime;
5. Adopting thin oil lubrication is reliable and advanced and can improve its service life;
6. A variety of crushing chamber, flexible application, strong adaptability;
7. Cone crusher for sale is easy to operate and maintain.
2. Less wearing cone crusher parts and lower running cone crusher cost. All parts are wear-resistant protection, maintenance cone crusher price will be reduced to the minimum, and the general service life can be increased by more than 30%;
3. Laminated crushing and excellent particle shape. The cone crusher improves the proportion of fine materials and the cube content of the product, and greatly reduces the needle-sheet materials;
4. Hydraulic protection and hydraulic cavity clearing, a high degree of automation, and short downtime;
5. Adopting thin oil lubrication is reliable and advanced and can improve its service life;
6. A variety of crushing chamber, flexible application, strong adaptability;
7. Cone crusher for sale is easy to operate and maintain.

Model | PYB600 |
Crush Cone Diameter | Φ600 |
Size of feeder opening(mm) | 75 |
Max.Feeding size(mm) | 12~25 |
Discharge adjustment range | 65 |
Eccentric rotate speed | 356 |
Capacity(t/h) | 40 |
Power(hp) | 30 |
Weight(t) | 5 |

Model | PYB900 |
Crush Cone Diameter | Φ900 |
Size of feeder opening(mm) | 135 |
Max.Feeding size(mm) | 15-50 |
Discharge adjustment range | 115 |
Eccentric rotate speed | 333 |
Capacity(t/h) | 50-90 |
Power(hp) | 55 |
Weight(t) | 11.2 |

Model | PYB1200 |
Crush Cone Diameter | Φ1200 |
Size of feeder opening(mm) | 170 |
Max.Feeding size(mm) | 20-50 |
Discharge adjustment range | 145 |
Eccentric rotate speed | 300 |
Capacity(t/h) | 110-168 |
Power(hp) | 110 |
Weight(t) | 24.7 |

Some Useful Tips For Choosing Vertical Compound Stone Cone Crusher
Choosing a suitable model of a crusher cone machine is important for you. This can not only improve the utilization rate but also save your purchase and cone crusher maintenance cost. So when you purchase the jaw cone crusher, what factors should you think about?
If you buy the gyradisc cone crusher for a complete crusher plant, you should consider the number of cone crusher. Moreover, the mobile cone crusher for sale needs to match with the specification of jaw crusher.
Depending on feeding material sizes and crushing capacity, you can select a suitable model and broken cavity type.
If you buy the gyradisc cone crusher for a complete crusher plant, you should consider the number of cone crusher. Moreover, the mobile cone crusher for sale needs to match with the specification of jaw crusher.
Depending on feeding material sizes and crushing capacity, you can select a suitable model and broken cavity type.

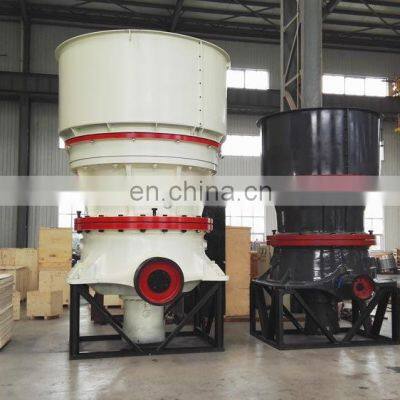

Model | HC90 | HC160 | HC250 | HC315 |
Cavity Mould | C | C | C | C |
Max.Feed size(mm) | 220 | 300 | 400 | 500 |
Outprt size (mm) | 20-35 | 30-50 | 35-55 | 45-70 |
Capacity(t/h) | 60-110 | 120-240 | 240-360 | 350-500 |
Power(kw) | 90 | 160 | 250 | 315 |
As far as the budget allows, you can buy the high automatic type cone crusher equipment. If you buy the semi automatic type cone crusher for sale philippines, maybe you can save your original cost. But if you by a high automatic type cone crusher machine, you will save the labor and maintenance cost.
If you purchase the same model of cone stone crusher, we suggest that the machine should be equipped with more powerful motor.
These just are simple tips for selecting right cone crusher china. Welcome to consult us if you want to learn more details.
If you purchase the same model of cone stone crusher, we suggest that the machine should be equipped with more powerful motor.
These just are simple tips for selecting right cone crusher china. Welcome to consult us if you want to learn more details.

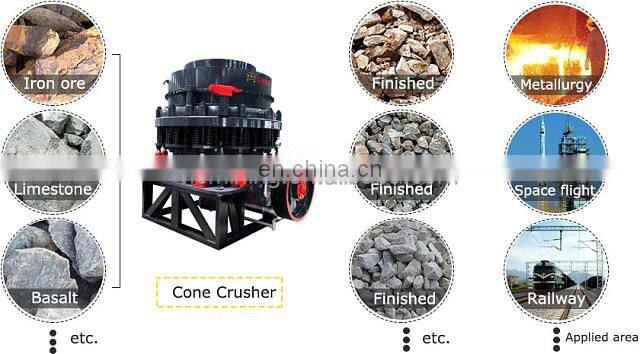

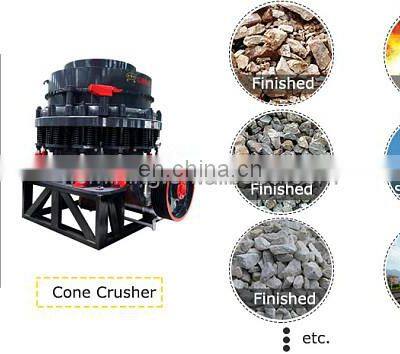

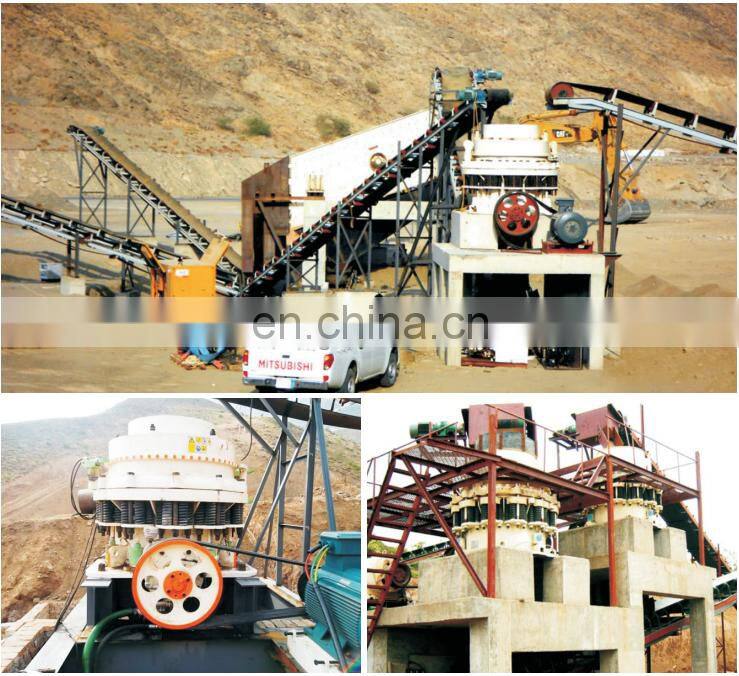

Our Vertical Compound Stone Cone Crusher Works In The Construction Site

How Does A Vertical Compound Stone Cone CrusherWork?

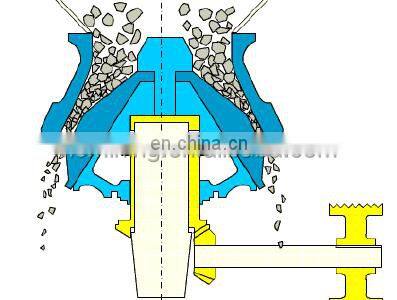

How Does A Cone Crusher Work?
The working principle of cone crusher for sale: The motor drives the eccentric sleeve to rotate through the transmission device, and the moving cone rotates and oscillates under the forced action of the eccentric shaft sleeve. The section of the moving cone close to the static cone becomes the crushing chamber, and the material is crushed by the multiple extrusion and impact of the
moving cone and the static cone. When the moving cone leaves the section, the material that has been broken to the required size falls under the action of its own gravity and is discharged from the bottom of the cone.
moving cone and the static cone. When the moving cone leaves the section, the material that has been broken to the required size falls under the action of its own gravity and is discharged from the bottom of the cone.
Company Profile

Gongyi Hengchang Metallurgy Building Material Equipments plant was built in 1992, a professional manufacturer specializing in the production of coal slurry dryer, coal slime dryer , coal dryer ,sawdust dryer , fly ash dryer , slag dryer ,vinasse dryer and so
on.
We have professional engineers and experienced workers in our factory, we ensure that we supply good quality and good price to our customers.
Our products as followings:
1. Bucket elevators: TD Belt type bucket elevator, TH round chain type bucket elevator, NE plate chain bucket elevator and Dehydrated bucket elevator.
2. Screw conveyors: Pipe type screw conveyor, U-shape screw conveyor, shaftless screw conveyor and screw feeder.
3. Belt conveyors: Fixed belt conveyor, mobile belt conveyor, sidewall belt conveyor and light type belt conveyor.
4. Other products: Pan conveyor, Vibrating screen, Trommel screen air slide conveyor, vibrating feeder, rotary feeder and double shaft mixer etc.
5. Spare parts: Elevator bucket, conveyor chain, sprocket, conveyor belt, conveyor roller, feeder pan, motor, gearbox and bearing and etc.
on.
We have professional engineers and experienced workers in our factory, we ensure that we supply good quality and good price to our customers.
Our products as followings:
1. Bucket elevators: TD Belt type bucket elevator, TH round chain type bucket elevator, NE plate chain bucket elevator and Dehydrated bucket elevator.
2. Screw conveyors: Pipe type screw conveyor, U-shape screw conveyor, shaftless screw conveyor and screw feeder.
3. Belt conveyors: Fixed belt conveyor, mobile belt conveyor, sidewall belt conveyor and light type belt conveyor.
4. Other products: Pan conveyor, Vibrating screen, Trommel screen air slide conveyor, vibrating feeder, rotary feeder and double shaft mixer etc.
5. Spare parts: Elevator bucket, conveyor chain, sprocket, conveyor belt, conveyor roller, feeder pan, motor, gearbox and bearing and etc.
Packing and delivery
Packaging Details:
Standard export packing, Spare parts in wooden case, big machines loaded in container,large machines use nude packing, cover with plastic cloth. We export through QingdaoPort, also can be nominated by customer. We have superior cargo agent to arrange thesea shipment for each client, competitive price, secure transportation.
Delivery Time:
We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 15 to 25 working days.
Delivery Time:
We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 15 to 25 working days.


Our Service/Why Choose Us

(A) Pre-sale services: Act as a good adviser and assistant of clients, enable them to get rich and generous returns on their investments.
1. Select equipment model;
2. Design and manufacture products according to clients' specialrequirement;
3. Train technical personnel for clients;
(B) Services during the sale; Provide considerate services to minimize clients' worries:
1. Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3.Train the first-line operators;
4.Examine the equipment;
5.Take initiative to eliminate the troubles rapidly;
6. Provide perfect service;
7. Provide technical exchanges...
FAQ
Q: Why we believe in Gongyi Hengchang company?
A:
1. More than 28 years’ experience.
2.Hengchang is the leading professional supplier of solution, equipment’s and service for
crushing and grinding industry.
crushing and grinding industry.
3.Products achieved ISO9001:2000 quality management certificate and EU CE certificate. Q: Delivery
time .
time .
A: The lead time is 10-20 days, Delivery time will vary depending on the type of the machine, shipping method selected and part availability.
Q: Payment terms ?
A: Accepted Payment Type: T/T, L/C, Western Union, Cash and so on. After sign the contract,
pay the 10%-30% deposit of total purchase price and pay the full payment before delivery.
Q: what will you do if the machine is broken down?
A: The Products warranty is one year. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.
Q: What should i do if I want to get a best quotation?
A: If you want a suitable type for you, please let us know your material and capacity.
