Hot Sale Mobile Rock Crushing Hammer Crusher Pc600*400 Btma Hammer Mill Crusher for Gold Mining / Stone / Grinder

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

hot sale mobile rock crushing hammer crusher pc600*400 btma hammer mill crusher for gold mining / stone / grinder

Smal Diesell Hammer Mill Crusher For Ore Suppliers


Suppliers Limestone powder btma Hammer Crusher
Limestone powder btma Hammer Crusher Machine For Gold Ming
Limestone powder btma Hammer Crusher Machine For Gold Ming

Hammer mill crusher is a machine used to shred or crush materials into smaller pieces.

The basic design of this type machines involves a rotating shaft which free-swinging hammers are attached.
This assembly is enclosed by a drum which carries the material to be pulverized. A hopper is used to feed the source material into the drum. The hammers gradually crush material until it is small enough to pass through a screen with openings inaccordance with the desired particle size.

Features of Hammer Crusher

1.Inlet large, high crushing chamber adapted material hardness, block degree, the product
powder less.
2.Materials vacant, broken power consumption.
3.New hammer, impact force.
4.Hammer shaft mounted adjustable, hammer, long life.
5.Grid size is adjustable, controllable particle size, particle shape is good.
6.Chassis can be flipped, maintenance more convenient.
7.Square shank bolts, impact resistance, wear and tear.
8.Compact, machine rigidity.
9.Fight structure, handling, easy to install.
10.The machine shocks, counter, strike (rock stone) fragmentation functions in a high production efficiency, mechanical abrasion is small, the overall efficiency significantly, widely used in artificial sand.

Application material

Hammer crusher is the most common of stone crushing equipment. It is also called hammer mill. It has high production capacity, low energy consumption, simple structure, reliable quality, easy maintenance, etc.

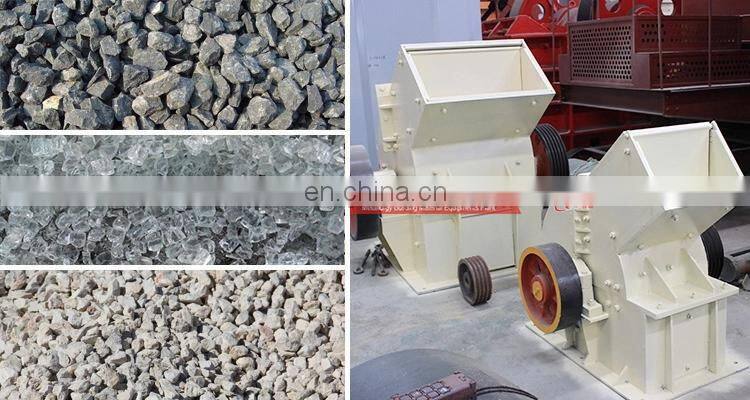

Application: Soft hard rock and middle hard stone, such as soapstone, gypsum, calcite, fluorite, limestone, shell, glass etc

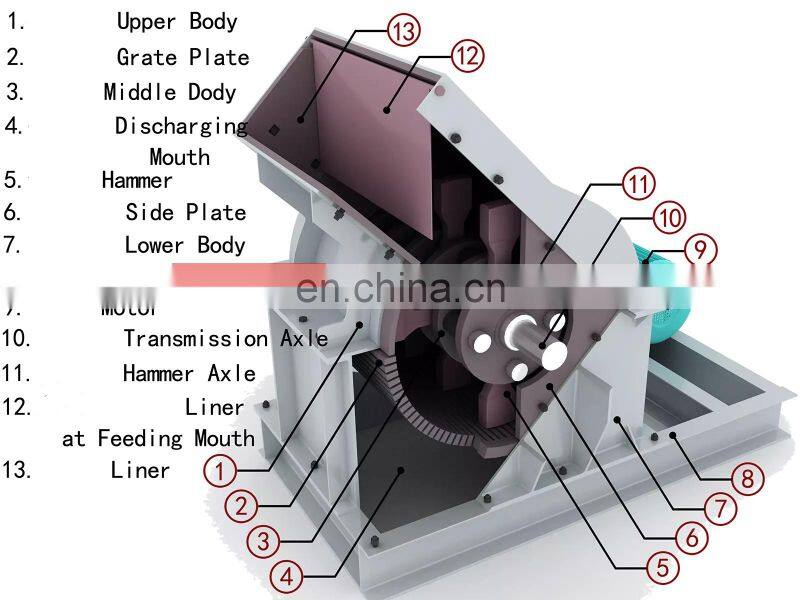

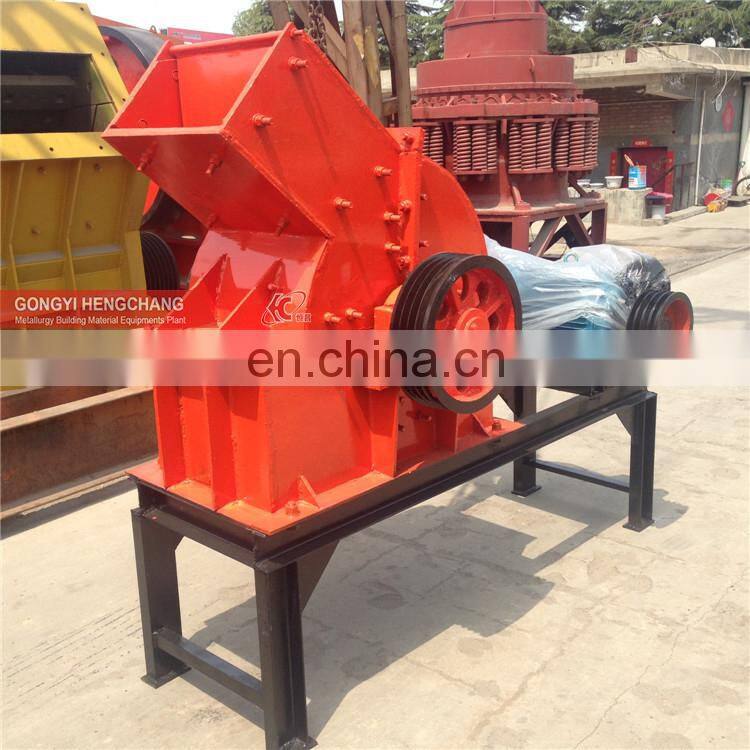

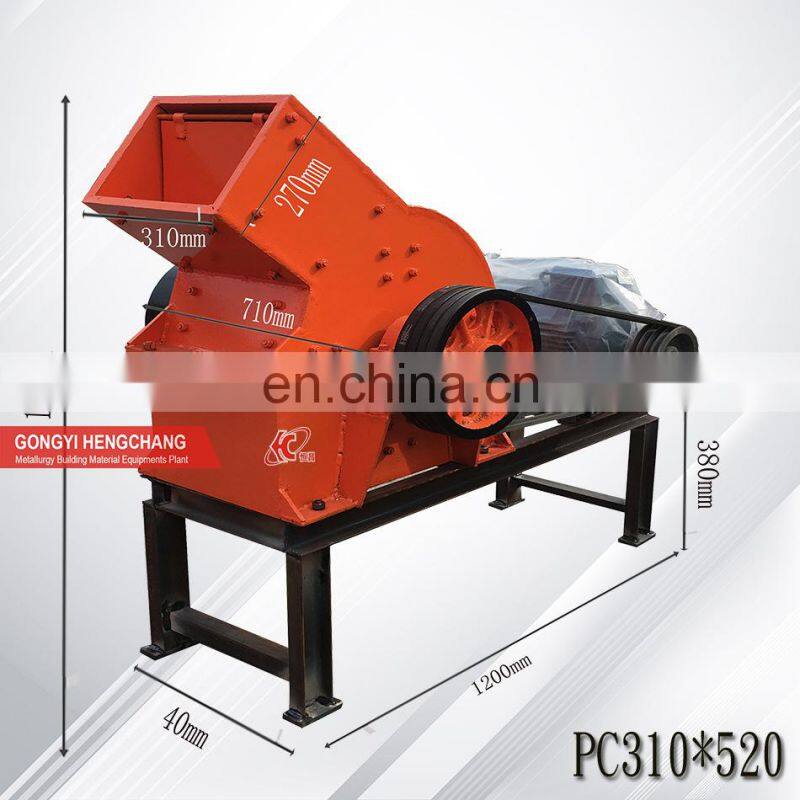

Detailed Images

Working Principle

Motor drives the rotor quickly in the crushing cavity. Raw materials enter the crusher through the feeding inlet and are impacted, cut and ground by high-speed hammer heads. There is a grate under the rotor assemblly, so that materials with size smaller than the grate mesh will be screened out and others are left to be further hammered until they reach the standard size.

The size of the final product can be adjusted by changing the grate, the gap between the rotor assemblly and the grate can also be adjusted according to different requirements.

Performance Parameters

Model	Rotor speed (r/min)	Feeding size (mm)	Discharging size(mm)	Capacity (t/h)	Power (Kw)	Weight (t)
PC400×300	1200	≤80	≤10	5-8	11	0.7
PC600×400	1000	≤110	≤15	10-15	18.5	1.5
PC800×600	980	≤120	≤15	20-25	55	3.7
PC1000×800	980	≤200	≤45	34-54	110	6.9
PC1000×1000	1000	≤200	≤15	40-60	132	8.5
PC1200×1000	745	≤200	≤25	75-150	160	12.5
PC1200×1200	745	≤200	≤20	80-160	185	14.3
PC1400×1400	750	≤250	≤20	120-170	280	17.2
PC1600×1600	500	≤350	≤20	220-290	500	32.4
PCK600×600	1250	≤80/≤40	≤3	75-15/15-30	55	2.4
PCK800×800	1250	≤80/≤40	≤3	25-30/50-70	110	3.6
PCH600×400	970	≤200	≤30	22-33	15	1.7
PCH600×600	980	≤200	≤30	30-60	30	2.4
PCH800×800	825	≤300	≤30	75-105	45	4.8
PCH1000×1000	740	≤300	≤30	90-150	90	7.5

Company Profile

Gongyi Hengchang Metallurgy Building Material Equipments plant was built in 1992, a professional manufacturer specializing in the production of coal slurry dryer, coal slime dryer , coal dryer ,sawdust dryer , fly ash dryer , slag dryer ,vinasse dryer and so on.

We have professional engineers and experienced workers in our factory, we ensure that we supply good quality and good price to our customers.

Customer Visit & Our Service

(A) Pre-sale services: Act as a good adviser and assistant of clients, enable them to get rich and generous returns on their
investments.
1.Select equipment model;
2.Design and manufacture products according to clients' special requirement;
3.Train technical personnel for clients;
4.Services during the sale;

(B)Provide considerate services to minimize clients' worries: 1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3.Train the first-line operators;
4.Examine the equipment;
5.Take initiative to eliminate
the troubles rapidly;
6.Provide perfect service;
7.Provide technical exchanges.

(C).After-sale services:Provide considerate services to minimize clients' worries:
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3.Train the first-line operators;
4.Examine the equipment;
5.Take initiative to eliminate
the troubles rapidly;
6.Provide perfect service;
7.Provide technical exchanges...

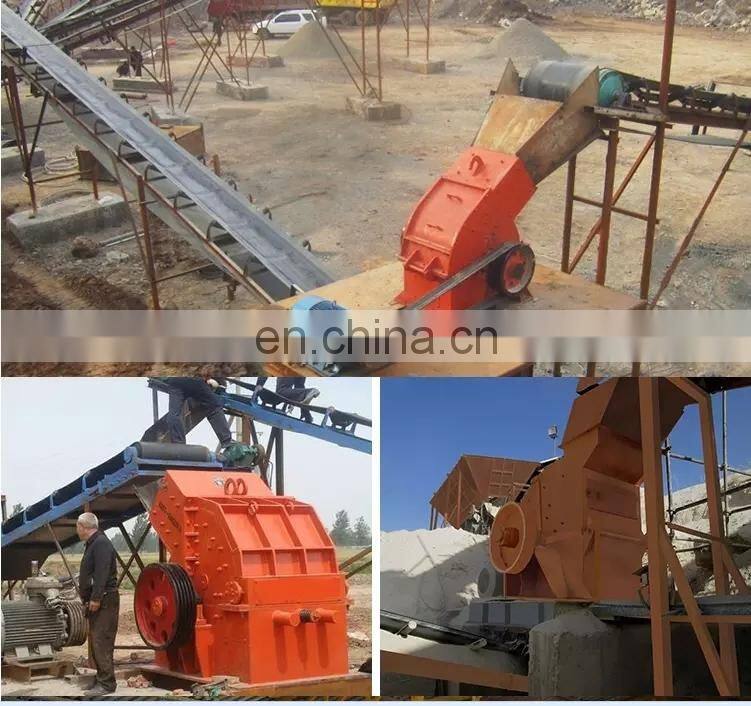

The Customer Site

Our machine has been sold to Germany, Australia, Japan, Mexico, Philippines, Indonesia, Russia, Uganda, Uzbekistan, Zimbabwe, etc. and our products are well received by customers. Welcome to inquiry!

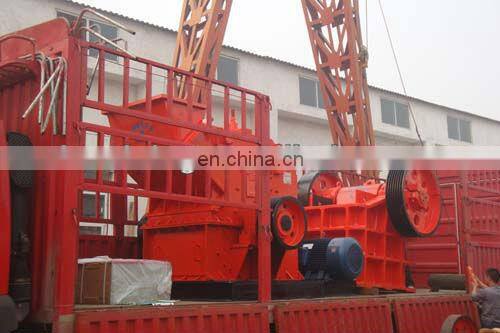

Packing &Delivery

Packaging Details:

We will make different packaging according to different machine sizes standard international export packing,container, wooden box.
Delivery Time:

We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 15 to 25working days.

FAQ

Q: For providing you the suitable quotation we need to know the following information:
A:
1. What is the raw material?
2. What is the capacity per hour you required ?
3. What is the maximum input size of the raw material ?
4. What is the final briquettes size and shape you want? Once we get your answers, I can provide you the best quotation immediately.

Remarks: The price will depend on different models.

Q: What about Warranty of the products ?
A:
Gongyi hengchang machinary grants our customers a twelve-month-period warranty from the date of delivery for machines exported from us. During the warranty period, in case any defect of material or workmanship occurred with spare parts in norma operation,we will at our discretion replace or repair the defective parts freely.
