Product Description
Introduction of rotary drum dryer:
rotary drum dryer is widely applicable to straw press block fuel, charcoal machinery, sawdust pellet fuel, sawdust press block, farming and animal husbandry engineering etc. industry. Such as corn straw drying, soybean straw drying,wheat straw drying, sorghum culm drying, wood drying, wood chips drying, sawdust drying,etc. agricultural cellulose category etc, materials.

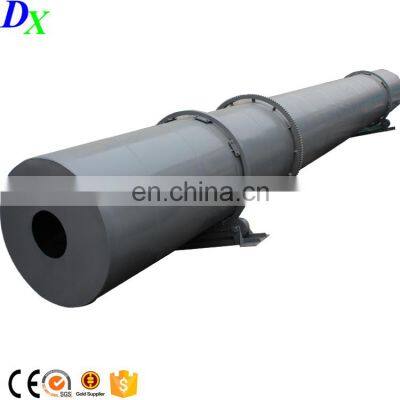

The show of rotary drum dryer
rotary drum dryer
Biomass rotary dryer machine is used to dry slag, clay, limestone, it is mainly used for cement, chemical, metallurgical, building industry materials ,it also widely used in industries like biomass fuel, charcoal making, wood pellet fuel, sawdust briquette, farming and sand etc. The applicable materials are wood powder, wood shavings, sawdust, wood chipps, straws, grass, sand, etc
rotary drum dryer
all the equipments consist of feeding system, heating system, transmission system, driving system, dust catching system, discharging system, electricity control system.
the rotary dryer is composed of heating stove, main rotary body, which can reduce moisture from 60% to 10%. the moisture evaporating capacity of our rotary drum dryer can reach to 250 kg to 8000kg per hour. different density materials, the final prodcut are not the same, also for different moisture of raw materials, which could get the different final capacity.
datas of rotary drum dryer
Model (mm) | Obliquity(%) | Rotation speed (r/min) | Feeding temperature (degree) | Power (kw) | Capacity(t/h) | Weight (t) |
600x6000 | 3-5 | 3-8 | <=700 | 3 | 0.5-1.5 | 2.9 |
800x8000 | 3-5 | 3-8 | <=700 | 4 | 0.8-2.0 | 3.5 |
800x10000 | 3-5 | 3-8 | <=700 | 4 | 0.8-2.5 | 4.5 |
1000x10000 | 3-5 | 3-8 | <=700 | 5.5 | 1.0-3.5 | 5.6 |
Product usage of rotary drum dryer:
1)This Industtrial and Agriculture Biomass Waste Powder Rotary Dryer which can continuous work has large capacity.
2)Simple structure, little malfunction, convenient operation, low maintenance cost.
3)The Industtrial Agriculture Biomass Waste Powder Rotary Dryer is widely used to dry powder, bulk and other materials. Different materials will have different capacity. But the capacity cannot influence the drying quality.
4)Our manufacturer can produce Φ600,Φ800,Φ1200,Φ1500 etc
first,we use the plastic film wrap the machine to avoid rust,then load the machine into the truck or container by sea.
clients'visit
1. 24 hours online service
2. We can design the machine and provide drawing paper depends on your facts
3. Engineer available to install machinery overseas
4. We will pick you up at airport or railway station when you come to visit our factory
Company uphold: honesty, quality first, customer first for the purpose.
Gongyi Dongxing Machinery company is specialized in the import, export and wholesale biomass charcoal machinery production line, like: wood crusher, sawdust dryer, briquette machine, and carbonization stove,etc. The final briquette or charcoal are best fuel for barbecue or boiler. We have the belief that chance favors the minds who are prepared, so in our company, every worker keeps studying.
Our aim is to supply the market with top quality charcoal equipment, and provide best service and best price for our customer.
Welcome to visit us or free consultancy, networking, and knowledge sharing.
Your trust will give us great help.
2. What is the capacity per hour you required?
3. What is the maximum input size of the raw material?
4. What is the output size for the final product? Once we get your answers,we can provide you the best quotation immediately.
Remarks: The price will depend on different models.
rotary drum dryer
