Product Description
General description
FISCO reactor system of lab scale includes working capacities of 0.5L, 1L, 2L, 5L and 10L. It can complete material dispersing, emulsifying, homogenizing and mixing processes under vacuum or pressurized conditions. It can intimate industrial production in laboratory by selecting high efficiency macro agitators, high shear homogenizing emulsifiers, vacuum seal system, and different sensor systems.
Unit pictures

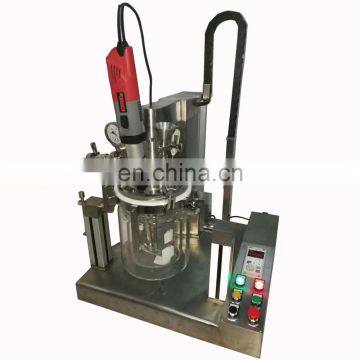

FISCO Reactor System (Lab Scale)
Technical Parameter
| Power supply | 220V, 50/60Hz |
| Min. agitating capacity | 1,000ml |
| Min. emulsifying capacity | 2,500ml |
| Max. emulsifying capacity | 5,000ml |
| Max. working temperature | 120°C |
| Accessible vacuum condition | 0.08Mpa |
| Max. handling viscosity | 100,000CP |
| Agitator motor power | 110W |
| Agitator rotation speed | 10-200rpm |
| Agitator type | Anchor agitator with scrappers |
| Scrapper materials | Silicon rubber |
| Homogenizer motor power | 500W |
| Homogenizer rotation speed | 10,000rpm-28,000rpm |
| Homogenizer generator type | 25DG |
| Openings on vessel cover | Homogenizer opening, hopper opening, temperature gauge opening, vacuum opening, 3 spare openings |
| Lifting height | 270 |
| Main medium-contact materials | SS316L, borosilicate glass, FKM |
| Outer diameter of vacuum opening | 10 |
| Jacket inlet/outlet size | 16 |
| Ambient temperature | 5-40°C |
| Permissible relative humidity | 80% |
| Overall dimension | 480×420×850 |
| Standard gross weight | ~42kg |
| Package | Wooden case |
