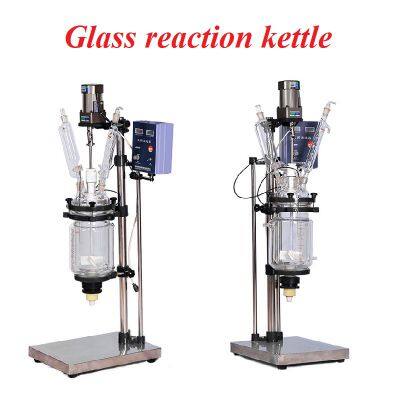

Double layer glass reactor series products

1

Double layer glass reactor series products

working principle:

Under constant temperature conditions, the stirring reaction can be carried out in a closed glass reaction vessel under normal or negative pressure conditions as required, and the reaction solution can be distilled and refluxed.

Product features:

GG17 high borosilicate glass, strong acid resistant material, experimental temperature -80 ℃ -250 ℃;

2. Glass/PTFE discharge valve, no dead corner mixing, fast emptying, no residue,

3. Variable frequency speed regulation gear motor, smooth operation, high torque, automatic boosting, no sparks, no noise, long service life,

4. The mechanical seal of the mixer maintains a high degree of vacuum,

5. The lid is easy to disassemble, clean, and install,

6. Material: high borosilicate glass, 304 stainless steel.

7. Measurement range: mixing and stirring of materials, reflux and distillation of reaction solutions.

Application: The double-layer glass reaction kettle is an ideal experimental and production equipment for modern fine chemical plants, biopharmaceuticals, and new material synthesis; Equipped with a high and low temperature integrated machine, it can meet the needs of multi-purpose high and low temperature reaction experiments.

Common specifications: 1L/2L/3L/5L/10L/20L/30/50L/100L.

Here, 2L is the main product introduction. If you need other specifications, please contact us via email.

Reminder about supporting equipment:

1. Circulating water oil bath,

2. Circulating water vacuum pump.

Buyers can use their existing equipment to connect with the glass reaction kettle, or purchase these two supporting devices from our company.

Laboratory equipment: glass reaction kettle series, high-pressure reaction kettle series, stainless steel reaction kettle series, evaporator, enamel reaction kettle, constant temperature water oil bath series, freeze-drying machine series, hydrothermal synthesis reaction kettle series, solvent recovery machine series, microwave chemical reactor series, vacuum pump series, drying oven series products supply.
