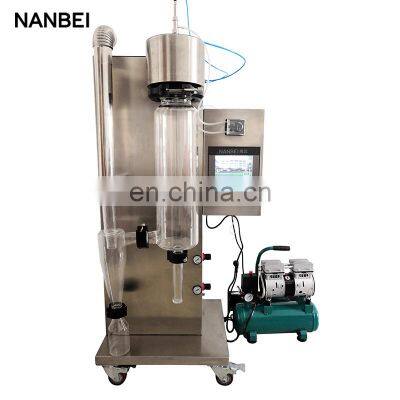

Lab 2L/h mini coffee spray dryer machine with CE

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

2L/h mini spray dryer

Application: 1. Various fields where the production of a free powder sample is required 2. NSP-1500 has successfully processed samples in the following areas: beverage, flavorous and colorings, milk and egg products, plant and vegetable extracts. pharmaceuticals, synthetics heat sensitive materials, plastics polymers and resins, perfumes, blood, ceramics and superconductors biochemicals, dyestuffs, soaps and detergents, foodstuffs, adhesives, oxides, textiles, bones, teeth and tooth amalgam and many others. Features: 1 Special for lab research, min 20-30ml liquid to finish one test 2 All borosilicate glass for easy visual monitoring of process status 3 Spray chamber, cyclone separator, receiving talk are all made of borosilicate glass which can resist strong acid/alkali, high temperature, it can work in a no-pollution and stable environment 4 Easy to clean and very simple to assemble and break down 5 The air compressor is no oil and don't pollute compress air, the sound is low than 50db and following the GMP understands. 6 Inlet/outlet temperature is accurate controlled by PID. 7 The unit is self contained and supplied complete and ready for immediate operation 8 Using screed touchable face display operation, control temperature, airflow volume, air pressure, pump speed and de-blocker frequency 9 Product feeding with RS2559605 rotary pump, capacity is adjustable 10 Automatic de-blocking device prevents the nozzle from becoming blocked and variably controlled

More Details Photos

High quality borosilicate glass collection bottle,easy to clean

Standard external air compressor, good for heat dissipation,Oil free,No noise, good stability, no oil protection reject secondary pollution of products

Specification

Model	NSP-1500
Max capacity	1500-2000ml/h
Temperature range of Inlet air	30℃ -280℃
Temperature range of outlet air	40℃ -120℃
Precision of temperature	± 1 ℃
Dryer time	1.0-1.5 S
Speed of squirmy pump	30-2000ml/h,
Consume of dryer air	0-330m3 /h, max pressure: 686Pa
Consume of spray air	0-4.2m3 /h, spray pressure: 2-5bar
Spray system	2 liquid nozzles with standard 0.7mm jet options of 0.5/1.0/1.5/2.0/2.5mm
Spray direction	downwards co-current
Power	3.5KW 220V
Voltage	220/240V-50/60HZ-13amps
Dimensions	650×500×1550 ( mm ) L x W x H
Weight	120kg

Recommend Products

Packing & Delivery

Company Profile

Customer Concerns

FAQ: Q1: Why Choose NANBEI ? (1).Professional manufacturer with more than 13 years experience (2).Exported to more than 97% Countries (3).Turnkey Solution is no problem Q2:OEM,ODM acceptable or not? Absolutely Yes Q3:What's kind of Payment terms for customer choosing? T/T ,Western Union, Money Gram , Credit Card, Paypal , L/C ... Q4:Can you visit your factory online? Absolutely no problem Q5:Can online video inspection before shipment? Absolutely no problem Q6: what's the MOQ ? Sample order is OK? MOQ:1 set, sample order is no problem Q7:What's kind of shipment for customer choosing? Usually ship by sea, by air, by international express . We can also provide reasonable solutions according to your transportation requirements Q8:How to ensure product quality and after-sales service? We have CE, ISO quality certificate, and SGS authentication. After-sale service: 1.Warranty : 1 year 2.We supply free part for quality problem in warranty 3.Long life technical support and service
