1- 5l rotary vacuum evaporator in lab
- 1000 per Month
- T/T Credit Card
You May Like
-
High efficiency laboratory distiller rotary evaporator machine
-
China Supplier Lab use rotary evaporators economic 1-100L
-
Laboratory chemical glass distiller mini distillation equipment rotary evaporator
-
Economical high evaporation rate distillation laboratory vacuum rotary evaporator with good stability
-
Best price for vacuum evaporation crystallization equipment
-
Lab 2l rotary evaporator with circulating vacuum pump & chiller
Product Description

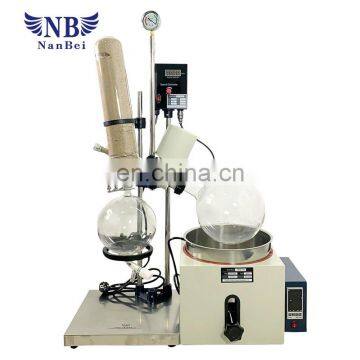

1-5l rotary vacuum evaporator basic type
•Usage and Application
Rotary evaporator is the necessary basic instrument for chemical industry, medicine industry, institutions of higher learning and scientific research laboratory and other units, it is the main means for manufacturing and analyzing experiments when they do extraction and concentration .
We offer turnkey solution including supporting chiller and supporting vacuum pump, we also could offer customized service, if you have special requirements, please just contact us.
Related supporting
One-stop solution
Motor has the function of 10-120 RPM stepless speed regulation and automatic lifting , revolving consists of a set of stable and reliable micro motor, speed motor and integrated circuit control device. In the role of electronic speed, it can rotating steadily in 10-120 RPM range, it has reached the advanced level at home and abroad.
1 Quick and easy lifting mechanism
2 Evaporator along the horizontal direction can lean in 0-45 ℃ arbitrarily.
3 Vertical condensation system of high rate of evaporation
4 Vacuum sealing way
5 Automatic control temperature digital display
•Details pictures
•Technical data
Model |
NBRE-201D |
NBRE-301 |
NBRE-501 |
Glass meterial |
GG-17 |
||
Holder material |
Stainless steel |
||
Pot shell Material |
aluminium alloy 270*270*195mm |
aluminium alloy 270*296*240mm |
aluminium alloy 310*320*240mm |
Pot bravery |
Stainless steel 250*140mm |
Stainless steel 255*170mm |
Stainless steel 280*170mm |
Plate size |
280*330 |
350*330 |
350*330 |
Evaporator flask |
2L 24# |
3L flange mouth:Φ50mm |
5L flange mouth:Φ50mm |
Collect flask |
1L 24# |
2L 35# |
3L 35# |
Vacuum degree |
0.098Mpa |
||
Rotary speed |
0-120RPM |
||
Rotary power |
30W |
40W |
40W |
Heating power |
1.5KW |
2KW |
2KW |
Heating temp. |
0-400℃ |
||
Temp. accuracy |
-1℃ |
||
Lifting stroke |
120mm |
||
Voltage |
220/110V 50/60HZ |
||
Dimension |
700*440*885mm |
660*330*970 |
700*335*1009 |
Packing size |
590*460*460mm |
1000*460*450 |
1040*620*410mm |
Packing weight |
21kg |
38kg |
38kg |
•Packing and Shipping
|
•Related Product
Chiller | Glass reactor |
FAQ
1.How can I choose the suitable one?
Dear customer, please tell us your detailed requirements by mail or online, we will recommend the suitable one as your request.
2.Does your price is competitive?
Dear customer, we make sure to offer you the best quality with competitive price.
3.How can I pay?
Dear customer, we accept many payment term, such as T/T, Western Union…
4.When I receive it after pay?
Dear customer, normal models can be delivered with 5-7days, please contact us to check transport time to your address.
5.How to deliver?
Dear customer, we can send by Express, by Sea and by Air.
6.Is will be broken during transport?
Dear customer, please do not worry, we do standard export package.
7.What should I do if I do not know how to use?
Dear customer, please do not worry, manual user will be sent together, you can also contact us with more technological support.
8.What should I do if some parts broken?
Dear customer, please do not worry, we have 12months warranty except wear parts. You can also buy parts from us after 12months
1.Company Show
2.Factory Show
1.Certification
2.Warranty And After-sale Service
♥♥We Supply 1 Year Warranty , And Lifelong Free Technical Guiding And Training♥♥
