Four-effect Falling Film Evaporator for Coffee Extract Concentration

FOB Price

Negotiable / Set

1 Set(Min.Order)

Port Shanghai
Payment TermsT/T L/C
Delivery Detail1 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	China	Model Number	ECMVR-XXXX
Certification	CE	After-sales Service Provided	Engineers available to service machinery overseas
Warranty	12months from the date of completion of installation or 15months from date of delivery, whichever comes earlier	Weight	Accordingly based on customized specification
Dimension(LWH)	Accordingly based on customized specification	Condition	New
Voltage	380V OR Customized	Application	Desalinization
Power(W)	Accordingly based on customized specification	Power Source	Electric
Process	Thermal

Product Description

Four-effect Falling Film Evaporator for Coffee Extract Concentration

Equipment: Four-effect falling film evaporator;

Application: coffee extract concentration;

Working medium: coffee extract;

Treatment capacity: 12,000kg/hr;

Inlet concentration: ≤10%;

Outlet concentration: 60%;

Steam consumption: 300kg/hr.

Project Introduction:

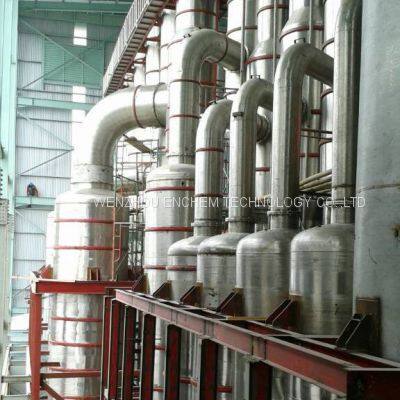

A four-effect falling film evaporator was adopted for concentration of coffee extract. The coffee extract was concentrated from around 10% to 60~65% in the evaporator system, and then was processed into powder by a spray dryer.

The falling film evaporator was equipped with a TVR (thermal vapor recompresser), a part of secondary steam from effect I evaporator can be extracted by the TVR, and is mixed with fresh steam and acts as heat source, in this way, the steam consumption is reduced.

Full automatic control mode, one-button start and stop, one-button cleaning, easy operation, stable running, and labor saving.
