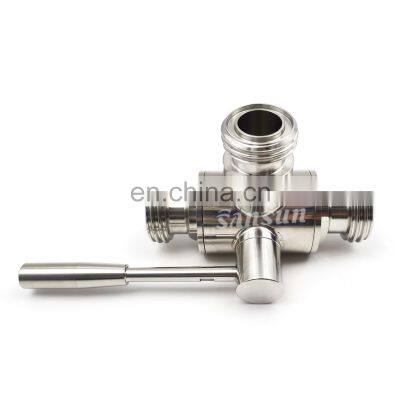

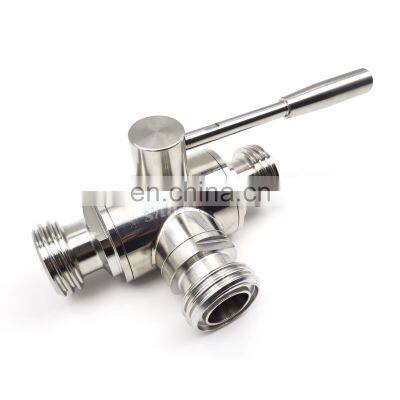

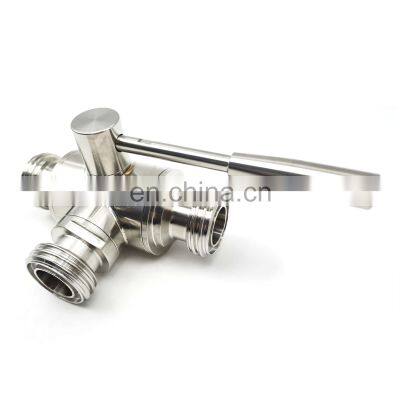

1.5" sanitary stainless steel 3 way male threaded Tport ball valve
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
sanitary stainless steel Food Grade Weld Pneumatic Actuated Butterfly Valve
-
Sanitary Stainless Steel Mini Diaphragm Valves price With Plastic Wheel
-
Sanitary Stainless steel food grade Tri-lobe rotary lobe pump for syrup shampoo chocolate high viscosity Honey
-
SS304 SS316L food grade liquid beverage dairy transfer sanitary self priming centrifugal pump for milk
-
China manufacturers Price Stainless Steel Food transfer sanitary centrifugal Water pumps open Impeller
-
China Factory Stainless Steel Food transfer Vertical sanitary centrifugal Dairy pumps with Motor
Product Description
Product Description
Product Name: | 1.5" sanitary stainless steel 3 way male threaded Tport ball valve | |||||||||||||||||
Valve Body Material: | 1.4404/1.4301, SS304/SS316L(Forged) | |||||||||||||||||
Gasket Material: | EPDM (standard) | |||||||||||||||||
Surface Finishing | RA<0.8 um | |||||||||||||||||
Seal: | PTFE | |||||||||||||||||
Max Working Pressure: | 10 Bar | |||||||||||||||||
Max. Working Tem.: | 120 degree C | |||||||||||||||||
Availably Size: | DN25-DN100,1"-4" | |||||||||||||||||
Features | Compact and robust design | |||||||||||||||||
PED 2014/68/EU | ||||||||||||||||||
The valve body can be changeable with any kind of connection | ||||||||||||||||||
Availably standard: | DIN/SMS/RJT/ISO/IDF | |||||||||||||||||
Operated: | Manual | |||||||||||||||||
Options | Gasket: EPDM, silicone or Viton | |||||||||||||||||
Connection:weld,clamp,thread,weld thread,flange | ||||||||||||||||||
Control: | Sensor, Pneuamtic actuator(single acting, double acting), electric actuato, C-TOP, C-top controller(AS-I) | |||||||||||||||||
Certificate: | PED 2014/68/EU | |||||||||||||||||
Application scope: | Dairy,food, beverage, pharmacy, cosmetic, Chemical, etc | |||||||||||||||||
