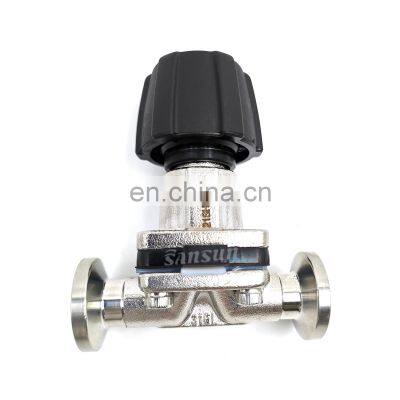

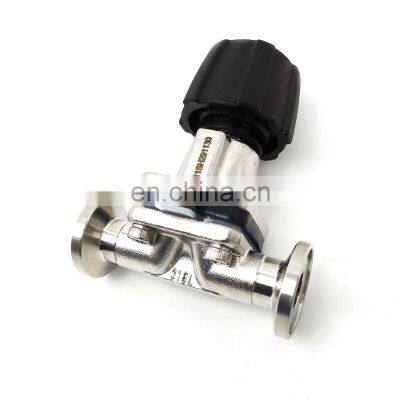

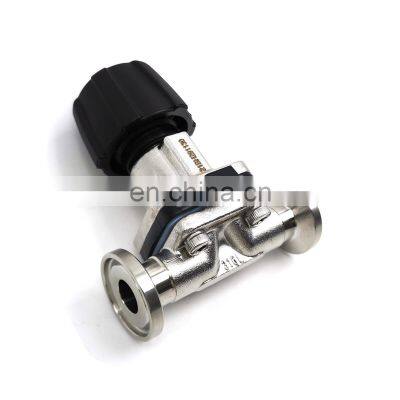

Sanitary Stainless Steel Mini Diaphragm Valve With Plastic Wheel
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Industrial Stainless Steel 1 PC Floating Type Ball Valve for Tank
-
Stainless Steel Sanitary Weld Diaphragm Valve With Plastic Pneumatic Actuator
-
1.5\" Sanitary Stainless Steel 3 Way Male Threaded Tport Ball Valve
-
Sanitary Stainless Steel Food Grade Weld Pneumatic Actuated Butterfly Valve
-
Sanitary Stainless Steel Mini Diaphragm Valves Price With Plastic Wheel
-
Sanitary Stainless Steel Food Grade Tri-lobe Rotary Lobe Pump for Syrup Shampoo Chocolate High Viscosity Honey
Product Description
Product Description

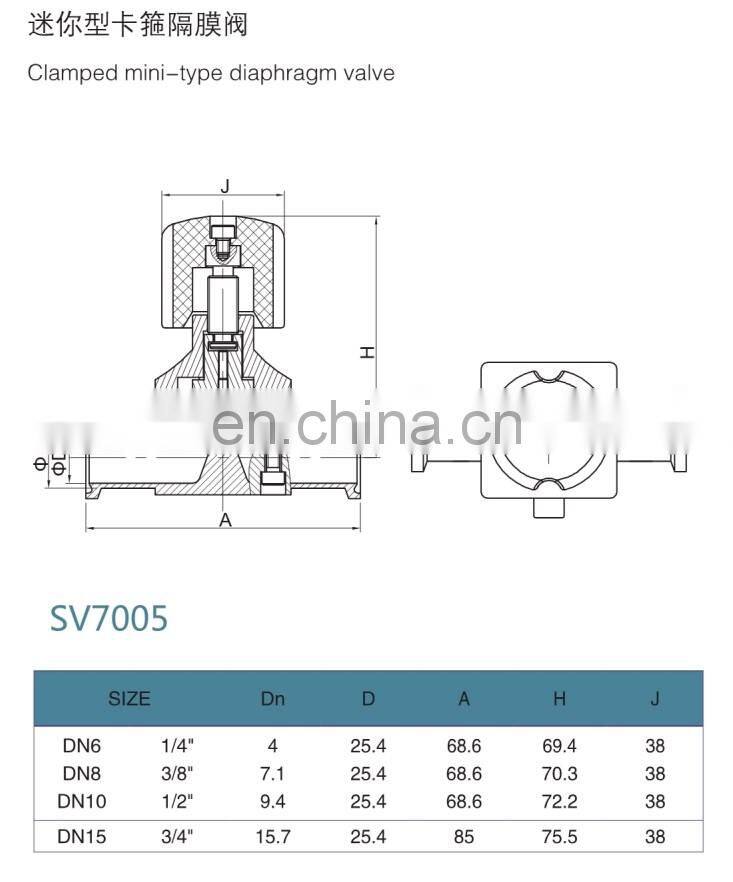

Product Name: | Sanitary Stainless Steel Mini Diaphragm Valve With Plastic Wheel | |||||||||||||||||
Valve Body Material: | 1.4435/1.4301, SS304/SS316L(Forged) | |||||||||||||||||
Seal Material: | EPDM (standard) | |||||||||||||||||
Surface Finishing | Mechanically polishing(SF1-SF2-SF3), Electropolished(SF4-SF5-SF6) | |||||||||||||||||

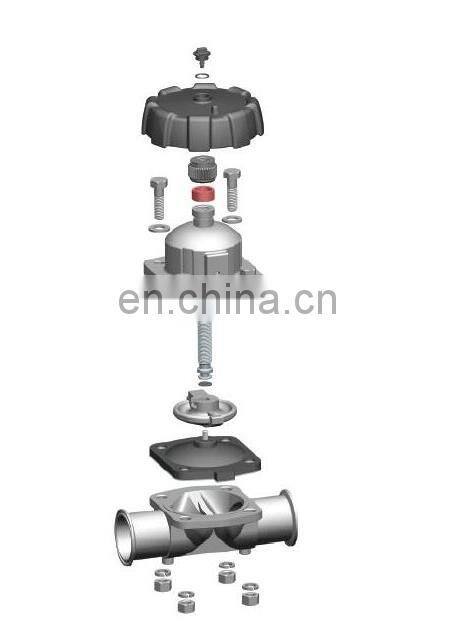

Operating Principles: | The diaphragm seal the body and seat, can't touch the outside environment, so diaphragm valve is suitbale for aseptic process.When Valve closed, the pressure press the valve to seal, then the pressure board moves down to the centre of the body. | |||||||||||||||||
Max Working Pressure: | 10Bar/145 PSI | |||||||||||||||||
Max. Working Tem.: | 150 degree C | |||||||||||||||||
Availably Size: | 1/4"-3/4" | |||||||||||||||||
Features | EN10204-3.1 B Mill cert is offered | |||||||||||||||||
PED 2014/68/EU | ||||||||||||||||||
The valve body can be changeable with any kind of connection | ||||||||||||||||||
Availably standard: | DIN/SMS/RJT/ISO/IDF | |||||||||||||||||
Operated: | Manual | |||||||||||||||||
Options | Gasket: EPDM, silicone or Viton, PTFE+EPDM | |||||||||||||||||
Connection:weld,clamp,thread, | ||||||||||||||||||
Control: | Sensor, Pneuamtic actuator(single acting, double acting), electric actuato, C-TOP, C-top controller(AS-I) | |||||||||||||||||
Certificate: | PED 2014/68/EU | |||||||||||||||||
Application scope: | Dairy,food, beverage, pharmacy, cosmetic, Chemical, etc | |||||||||||||||||

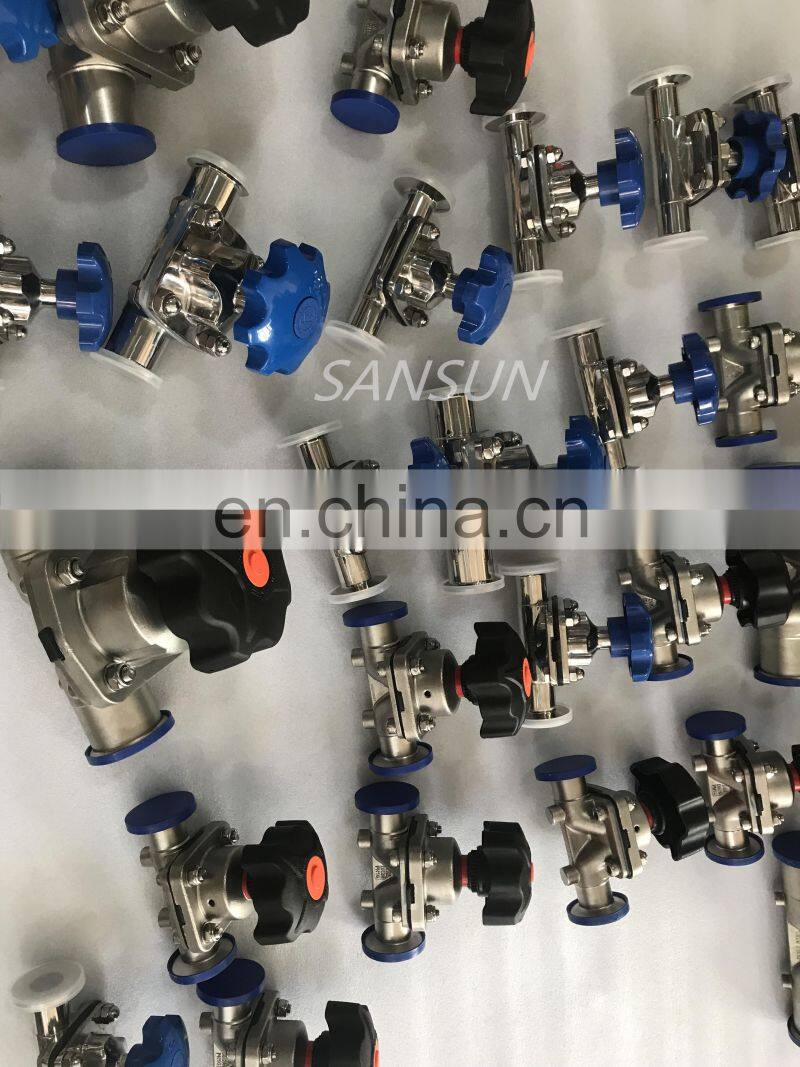

Product Show
Sanitary valve
Butterfly Valves
Check Valves
Ball Valvess
Single Seat Valve/Mixproof valve
DiaphragmValves
Sample Valves
Pressure Relief Safety Valves
Three Way Plug Valve
Angle Seat Valve
Ball Valvess
Single Seat Valve/Mixproof valve
DiaphragmValves
Sample Valves
Pressure Relief Safety Valves
Three Way Plug Valve
Angle Seat Valve
BrewHardware
Brewing Fittings
Vaccume Air Released Valve
Pressure Relief Valve
Sampling Valve
Foam Eliminator
Carbonation Stone
Tank & Accessories
Manhole Cover/Manway
Tank Cleaning Ball
Sight glass
Filter Strainer
Stainless steel Tank
Stainless Steel Carbonation Stone
Bunging Device
Sampling Valve with Coil for Beer
Beer Foam Eliminator
Sight glass
Filter Strainer
Stainless steel Tank
Stainless Steel Carbonation Stone
Bunging Device
Sampling Valve with Coil for Beer
Beer Foam Eliminator
Sanitary Pumps
Centrifugal Pump
Food Transfer Pump
Rotary Lobe Pump
Self Priming CIP Pump
Single Screw Pump
Emulsifying pump
Rotary Lobe Pump
Self Priming CIP Pump
Single Screw Pump
Emulsifying pump
Tube & Pipe fittings
Elbow/Tee/Reducer/Cross
Clamp & Ferrule
DIN/SMS/RJT/IDF Unions
Flanges
Weld Pipe & Square Tube
Vacuum Fittings
DIN/SMS/RJT/IDF Unions
Flanges
Weld Pipe & Square Tube
Vacuum Fittings
Gasket & Spare Seals
Silicone/EPDM Gasket For Triclamp Silicone/EPDM Gasket For Union
Silicone/EPDM/Viton seal For Valve
Teflon seat For Ball valve
Mechanical Seal for Pump
Membrane for aseptic Valve
Silicone/EPDM/Viton seal For Valve
Teflon seat For Ball valve
Mechanical Seal for Pump
Membrane for aseptic Valve
FAQ
Q: DO YOU HAVE MILL TEST CERTIFICATE? | ||||||||||||
Yes, Each order is traceable by Material certificate EN10204 3.1, and we also can offer pressure testing report, roughness test report if Client need. | ||||||||||||
Q: DO YOU HAVE PRODUCT WARRANTY | ||||||||||||
Yes,12 months warranty. 100% inspection on finished products before dispatch. Inferior products can be returned or replaced. Repair parts is supplied for replacement. | ||||||||||||
Q: WHAT'S THE MOQ? | ||||||||||||
No MOQ for standard products. Customized products can be discussed. | ||||||||||||
Q: MAY I HAVE FREE SAMPLES? | ||||||||||||
Free samples can be provided for starting cooperation, Freight is collected by Client. | ||||||||||||
Q: HOW LONG IS THE DELIVERY TIME? | ||||||||||||
Standard item are in stocked--Normally 3-5 days. Bulk order usually takes about 20-25 days. | ||||||||||||
Q: WHY WOULD I CHOOSE YOU? | ||||||||||||
1.Hard-working labor worker and advanced machine ensure large production capacity. It will give our clients fast delivery time. | ||||||||||||
2. Professional engineer and designer ensure the product parameter is well manufatcured and every month, we will have new products to help our client's enlarge market. | ||||||||||||
3. 100% inspection on finished products before dispatch, give our clients good quality products | ||||||||||||
4. High effective sales team quick response to any quote and complaint. | ||||||||||||
Inspection & Packing
Our Company
Wenzhou Sansun stainless Co., Ltd. Was founded in 2013, Located in Wenzhou, China, is a professional manufacturer integrating design, production, sales and service.
Our products includes: Sanitary valve,Sanitary pipe fittings, Sanitary pump,Tank accessories, Closed Loop Extractor, etc.
All kinds of non-standard products are customized according to the requirements of customers. Products can be traced back to the manufacturing and time of each process to ensure the quality of products.
All kinds of non-standard products are customized according to the requirements of customers. Products can be traced back to the manufacturing and time of each process to ensure the quality of products.
We have skillful production people and strong R&D technicians who have over 15 years experience in manufacturing, developing and
designing various sanitary Valves & fittings.
designing various sanitary Valves & fittings.
Under the strict control system - ISO 9001 quality assurance, we have made our OEM products widely extend to international well-known manufacturers.
Factory Square Meter | 3000 m3 | Workshop Equipment | 10--Mazak CNC Machine |
6--HEADMAN CNC Machine | |||
1--of automatic CNC center | |||
Number of employees | 105 Workers + 10 officers | 4--plain lathe | |
Number of Engineers | 3 designers +2 CAD drawers | 4--Press Machine | |
Number of Inspectors | Raw Material (3) | 3--bending Machine | |
Finish Product (5) | 2--Cutting Machine | ||
Testing Equipment | 2--Pressure Testing Machine | 2-- Chamfering Machine | |
1--Surface roughness device | 10--Polishing Machine | ||
2--Spectro Instrument Gun | 2--Laser marking Machine |
Certifications
Exhibition
Factory Workshop
