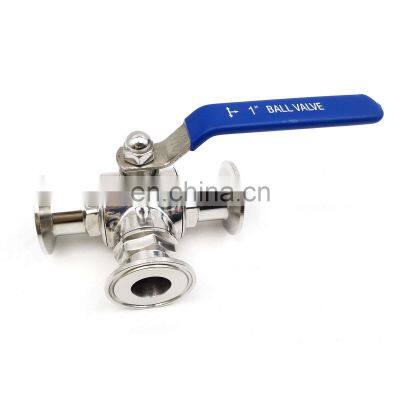

Sanitary Stainless Steel 316 Tri Clamp 3 Way Economical Ball Valve

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Product Name:

sanitary stainless steel 316 tri clamp 3 way economical ball valve

Valve Body Material:

1.4404/1.4301, SS304/SS316L(Forged)

Gasket Material:

EPDM (standard)

Surface Finishing

RA<0.8 um

Seal:

PTFE

Max Working Pressure:

10 Bar

Max. Working Tem.:

120 degree C

Availably Size:

DN25-DN100,1-4"

Features

Compact and robust design

PED 2014/68/EU

Availably standard:

DIN/SMS/RJT/ISO/IDF

Operated:

Manual

Options

Gasket: EPDM, silicone or Viton

Connection:weld,clamp,thread,weld thread,flange

Control:

Sensor, Pneuamtic actuator(single acting, double acting), electric actuato, C-TOP, C-top controller(AS-I)

Certificate:

PED 2014/68/EU

Application scope:

Dairy,food, beverage, pharmacy, cosmetic, Chemical, etc
