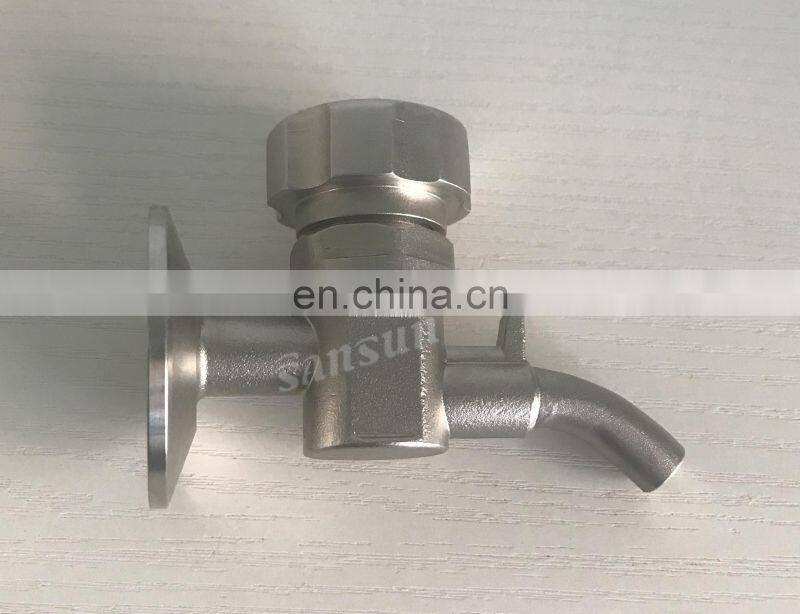

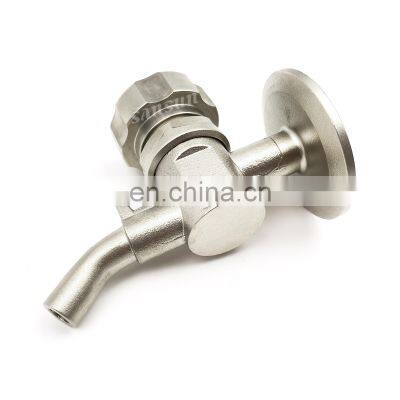

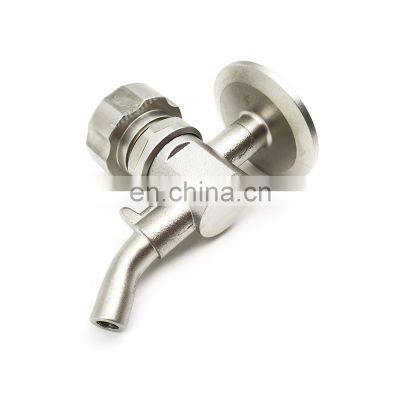

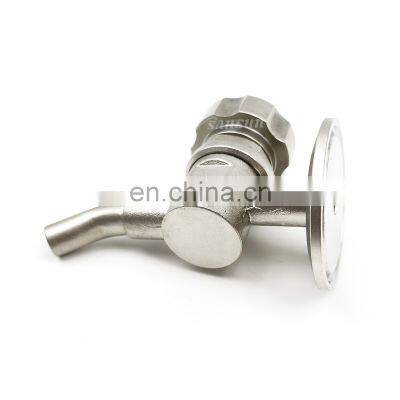

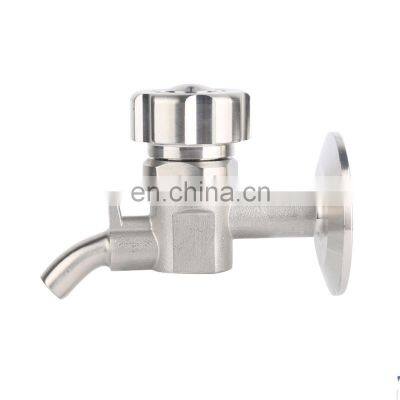

Sanitary Stainless Steel Aseptic Spiral Type Sample Valve for Beer

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Product Name:

Sanitary Stainless Steel Aseptic Spiral Type Sample Valve for Beer

Valve Body Material:

1.4435/1.4301, SS304/SS316L(Forged)

Seal Material:

EPDM (standard)

Surface Finishing

CNC Ra,0.8 um

Operating Principles:

When turn the hand wheel clocwise, the valve is opening for sampling, when turn oposite way, the valve shaft move down and closed.

Max Working Pressure:

10Bar/145 PSI

Max. Working Tem.:

120 degree C

Features

EN10204-3.1 B Mill cert is offered

PED97/23EC

The valve body can be changeable with any kind of connection

Availably standard:

DIN/SMS/RJT/ISO/IDF

Options

Gasket: EPDM, silicone or Viton

Connection:weld,clamp,thread,

Certificate:

PED/97/23/EC

Application scope:

Dairy,food, beverage, pharmacy, cosmetic, Chemical, etc
