10kg 20kg 50kg 100kg chain tilting induction precious metal melting machine
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Speedy smelting 10-100kg Automatic Chain Tilting Gold Melting furnace for metallurgy industry
-
Laboratories and research jewelry stores commonly used melting equipment
-
50g 100g 500g 1kg 2kg gold silver copper bar making machine for metal smelting
-
CDOCAST hot sale mini 1kg 2kg gold furnace
-
Small portable induction gold/silver smelter for 1kg 2kg 3kg 4kg 5kg 6kg
-
Small Centrifugal Vacuum Metal Jewelry Casting Machine
Product Description
Products Description

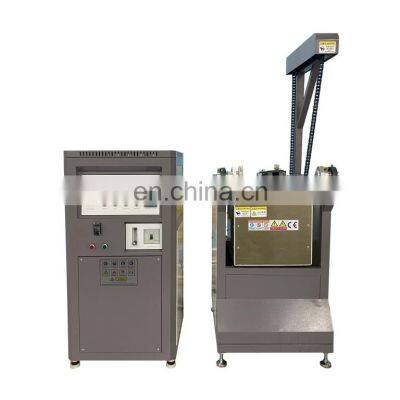

10kg 20kg 50kg 100kg chain tilting induction precious metal melting machine
CDOCAST Chain tilting induction metal melting furnace with motor tilting system is designed for 10-100kg. which is suitable for melting and making the precious metal ingot like gold,silver,copper etc. With speedy melting peroid in 3-5min per batch gained popular in market. When melting process is done, you just press the tilting button, the furnace body will turn over by the motor running.
Details Images
Product Paramenters
Model number | CDO-GMF1 | CDO-FL series | CDO-FM series | CDO-MT series |
Voltage | Single P,220V± 10% | 3P, 380 V, 50/60Hz | 3P, 380 V, 50/60Hz | 3P, 220V, 50/60Hz |
Power | 5 kw | 15-30kw | 15-30kw | 15-30kw |
Capacity | Gold/Silver: 1-2kg | Gold: 4-15 kg Silver:2-8kg （customized） | 1-8 kg (platinum） | Gold: 4-15 kg Silver:2-8kg （customized） |
Max temperature | 1650℃ | 1600℃/1800℃ | 2000℃ | 1600℃/1800℃ |
Melting time | 3-5 min | 2-8min | 2-6min | 2-8min |
Weight | 28 kg | 50 kg | 50kg | 78 kg |
Dimension（LWH） | 300*300*400mm | 500*500*860 mm | 500*500*860 mm | 620*500*1050mm |
Crucible size | Ø34*89mm/Ø44*110mm | Customized | Customized | Customized |
Model number | CDO-CT series | CDO-MTF series | CDO-HT series |
Voltage | 3P, 380 V, 50/60Hz | 3P, 380 V, 50/60Hz | 3P, 380 V, 50/60Hz |
Power | 25-70 kw | 15-160kw | 45-160kw |
Capacity | Gold/Silver: 20-100kg（customized） | Fe, ss，Al, Al-alloy：3-100kg Cu, Au, Ag：10-250kg（customized） | Fe, ss，Al, Al-alloy：18-100kg Cu, Au, Ag：50-250kg（customized） |
Max temperature | 1500℃ | 1600℃ | 1600℃ |
Melting time | 8-40 min | 20-50 min | 20-50 min |
Weight | Customized | Customized | Customized |
Dimension（LWH） | Customized | Customized | Customized |
Crucible size | Customized | Customized | Customized |
Application
Chain driven by the motor, can be operated remotely,achieves work efficiency and ensures the safety of the workers
The unique chain drive design allows the pouring point to be fixed at a single point, which is very helpful for spot pouring
Mould can be designed attached to the furnace body,or on the mould holding car that comes with the furnace
Feature
1: Graphite crucibles and quartz crucibles are available, thus enabling the melting of almost all non-ferrous and non-ferrous metals, and are particularly suitable for small foundries.
2:This small silver melting machine adopt advanced IGBT induction heating technology, power from 15kw-110Kw available, compared to KGPS induction heating, comes with energy saving effect of 20% .
3: PLC touch screen design is optional design, all the over-current, over-voltage, water shortage security alarm functions and temperature control can be set and display in the PLC, the operation is convenient and intuitive, the overall structure of the machine is aesthetically pleasing due to the reduced number of buttons in the control cabinet.
4: The crucible can be easily replaced without the need to dismantle the furnace to replace a broken crucible, just take it out. The whole process takes only 20 minutes
5: The silver melting furnace is equipped with a mobile trolley for loading the molds, and at the end of the melting process, the worker only needs to push the trolley to the furnace nozzle for pouring, which greatly increases the safety of the operation.
6: Customized graphite moulds are available to support the entire pouring process according to customer requirements.
2:This small silver melting machine adopt advanced IGBT induction heating technology, power from 15kw-110Kw available, compared to KGPS induction heating, comes with energy saving effect of 20% .
3: PLC touch screen design is optional design, all the over-current, over-voltage, water shortage security alarm functions and temperature control can be set and display in the PLC, the operation is convenient and intuitive, the overall structure of the machine is aesthetically pleasing due to the reduced number of buttons in the control cabinet.
4: The crucible can be easily replaced without the need to dismantle the furnace to replace a broken crucible, just take it out. The whole process takes only 20 minutes
5: The silver melting furnace is equipped with a mobile trolley for loading the molds, and at the end of the melting process, the worker only needs to push the trolley to the furnace nozzle for pouring, which greatly increases the safety of the operation.
6: Customized graphite moulds are available to support the entire pouring process according to customer requirements.
Packaging & Shipping
Our services
I.Commissioned from the furnace after delivery, into the warranty period, the warranty period of 12 months.Regardless of the warranty period or warranty period, the furnace, such as failure, received a notice, we are committed to 36 hours to send to the scene to deal with.
II.In the warranty period by our cause failure, we carried out unconditional maintenance and replacement.Due to other causes ofthe failure, we only charge the cost of paid maintenance
III.After the warranty period, we will, as always, do a good job after-sales service, so that users no worries.
I.Commissioned from the furnace after delivery, into the warranty period, the warranty period of 12 months.Regardless of the warranty period or warranty period, the furnace, such as failure, received a notice, we are committed to 36 hours to send to the scene to deal with.
II.In the warranty period by our cause failure, we carried out unconditional maintenance and replacement.Due to other causes ofthe failure, we only charge the cost of paid maintenance
III.After the warranty period, we will, as always, do a good job after-sales service, so that users no worries.
Customer Photos
FAQ
1. What is your advantage compared to others?
First, we provided turnkey solution, Cost-effective, highly efficient, durable, and easy-to-operate machine is what we deliver.Second, we have a Strict Quality Control System, Before Being dispatched from our factory all of our equipment will undergo a series of strict test, including the appearance quality test, voltage electrical test, aging test also the package strength checking.
2. If our machine meets fault, how could you help us to solve it?
For failures caused by using process, we will send our aftersales engineer to discuss with you, and you should provide the video of how the machine is broken, we will find out which part of the machine is broken, and then we will send you the broken part By DHL.
3. what is your warranty?
Our warranty period comes from the machine begin to run normally and we will provide the whole life technology support to you for free.
All products sold by COOLDO In the warranty period, we will provide you the spare parts for free. Our engineer will help you do the aftersales through our remote control system. When out of one year warranty time, we will provide the spare parts with the cost price for the whole machine lifetime.
First, we provided turnkey solution, Cost-effective, highly efficient, durable, and easy-to-operate machine is what we deliver.Second, we have a Strict Quality Control System, Before Being dispatched from our factory all of our equipment will undergo a series of strict test, including the appearance quality test, voltage electrical test, aging test also the package strength checking.
2. If our machine meets fault, how could you help us to solve it?
For failures caused by using process, we will send our aftersales engineer to discuss with you, and you should provide the video of how the machine is broken, we will find out which part of the machine is broken, and then we will send you the broken part By DHL.
3. what is your warranty?
Our warranty period comes from the machine begin to run normally and we will provide the whole life technology support to you for free.
All products sold by COOLDO In the warranty period, we will provide you the spare parts for free. Our engineer will help you do the aftersales through our remote control system. When out of one year warranty time, we will provide the spare parts with the cost price for the whole machine lifetime.
