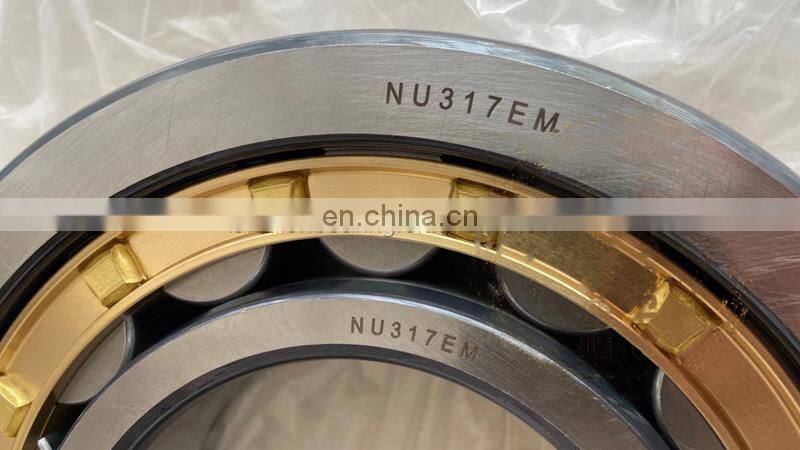

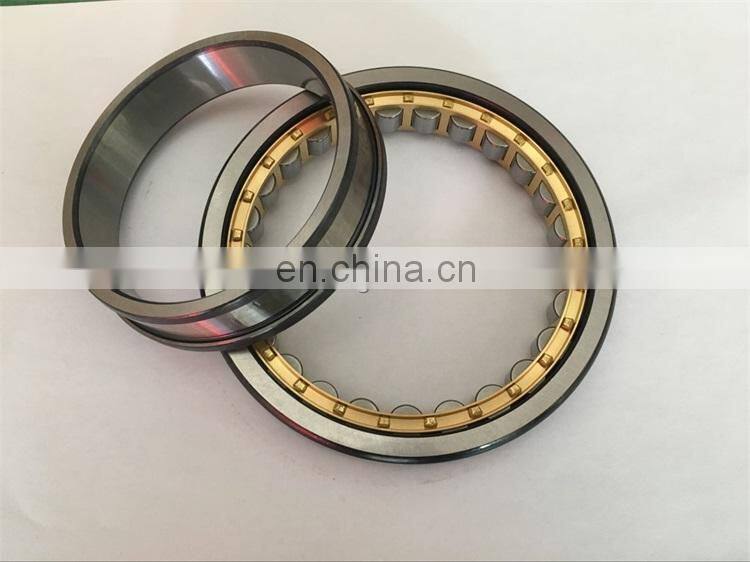

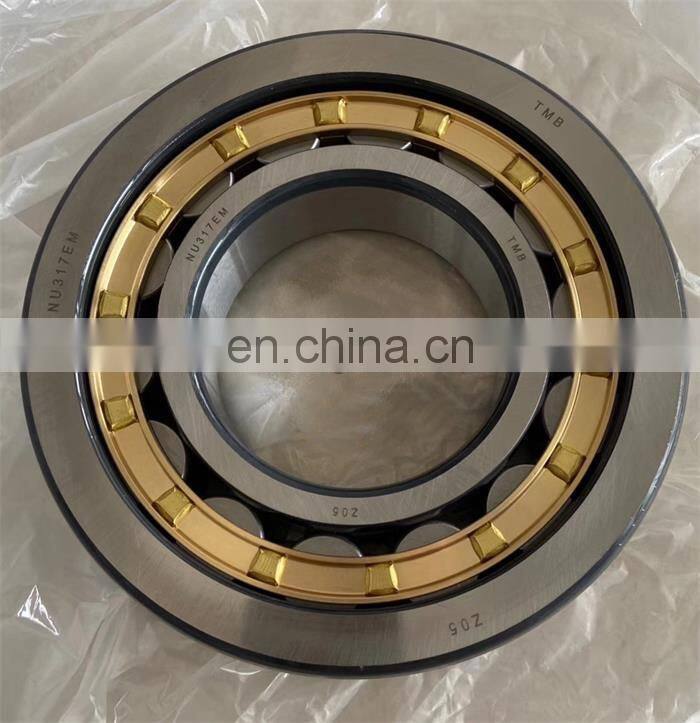

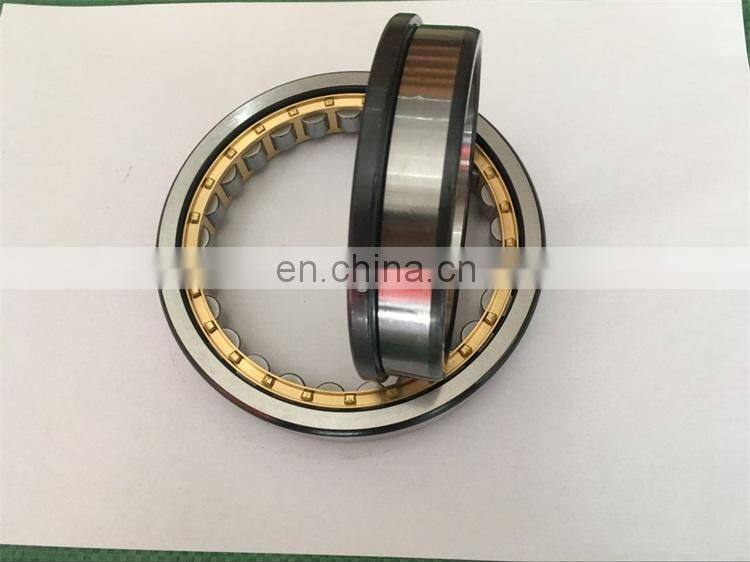

NU317EM TWB Cylindrical Roller Bearing NU317ECM
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
TJ-600-100 KOYO Cylindrical Roller Bearing TJ600-100 for Gear Reducer
-
TJ-602-747 KOYO I-N-A Cylindrical Roller Bearing TJ602747 for Gear Reducer
-
TJ-600-099 KOYO Cylindrical Roller Bearing TJ600-099 for Gear Reducer
-
Gear Box Bearing F-217411.01.RNN Full Complement Cylindrical Roller Bearing F-217411 Size 65x93.1x55mm
-
High Quality F-208101 Double Row Cylindrical Roller Bearing F-208101.RNN
-
232726 Cylindrical Roller Bearing 30-42726 30-232726 42726 Rail Way Bearing
Product Description
Product Description
cylindrical roller bearing NJ317 NU317 N317 RN317 NUP317 85*180*41 E EM M C3 ECP C4 MA
Cylindrical roller bearing are of high load capacity and can operate at high speeds because they use rollers as their rollingelements. They can therefore be used in applications involving heavy radial and impact loading.
The rollers are cylindrical in shape and crowned at the end in order to reduce the stress concentrations. They are also suitablefor applications that require high speed because the rollers are guided by ribs which are either on the outer or inner ring.
The rollers are cylindrical in shape and crowned at the end in order to reduce the stress concentrations. They are also suitablefor applications that require high speed because the rollers are guided by ribs which are either on the outer or inner ring.
structure:NU,N,NJ,NF,NUP,NH,NCL...V,NB,NU...V,NNU,NNCF,NNCL,NNCS,FC,FCD,FCDP...
10 Physical Characteristics:
1) Cylindrical roller bearing can be separated by single row,double rows and four rows.
2) This kind of bearing can be submitted to high radial load and some axial load.
3) The rolling element of cylindrical roller bearing is cylinder,the two ends of the external lines have the corrective slope
which can eliminate the contact stress.
4) NN and NNU design cylindrical roller bearing have high rigid and apply to machines such as millings.
10 Physical Characteristics:
1) Cylindrical roller bearing can be separated by single row,double rows and four rows.
2) This kind of bearing can be submitted to high radial load and some axial load.
3) The rolling element of cylindrical roller bearing is cylinder,the two ends of the external lines have the corrective slope
which can eliminate the contact stress.
4) NN and NNU design cylindrical roller bearing have high rigid and apply to machines such as millings.
Name | cylindrical roller bearings NU317M |
ID | 85 mm |
OD | 180 mm |
B | 41 mm |
bearing weight | 5.26 kg |
Application | industry machinery |
skype | tradingbearing |
email: | lbc001@landlionbearing.com |
whatsApp | +8618753110215 |
cylindrical roller bearing NU317EM
BEARING SIZE AS FOLLOWING:
Bearing No. | Boundary dimensions (mm) | Basic load ratings (KN) | Weight KG | ||||||
d | D | B | Cr | C0r | |||||
NU212EM | 60 | 110 | 22 | 97500 | 107000 | 0.93 | |||
NU2212EM | 60 | 110 | 28 | 131000 | 157000 | 1.19 | |||
NU312EM | 60 | 130 | 31 | 150000 | 157000 | 2.06 | |||
NU2312EM | 60 | 130 | 46 | 222000 | 262000 | 3.08 | |||
NU213EM | 65 | 120 | 23 | 108000 | 119000 | 1.17 | |||
NU2213EM | 65 | 120 | 31 | 149000 | 181000 | 1.58 | |||
NU313EM | 65 | 140 | 33 | 181000 | 191000 | 2.56 | |||
NU2313EM | 65 | 140 | 48 | 233000 | 265000 | 3.67 | |||
NU214EM | 70 | 125 | 24 | 119000 | 137000 | 1.29 | |||
NU2214EM | 70 | 125 | 31 | 156000 | 194000 | 1.67 | |||
NU314EM | 70 | 150 | 35 | 205000 | 222000 | 3.09 | |||
NU2314EM | 70 | 150 | 51 | 274000 | 325000 | 4.51 | |||
NU215EM | 75 | 130 | 25 | 130000 | 156000 | 1.44 | |||
NU2215EM | 75 | 130 | 31 | 162000 | 207000 | 1.76 | |||
NU315EM | 75 | 160 | 37 | 240000 | 263000 | 3.73 | |||
NU2315EM | 75 | 160 | 55 | 330000 | 395000 | 5.57 | |||
NU216EM | 80 | 140 | 26 | 139000 | 167000 | 1.7 | |||
NU2216EM | 80 | 140 | 33 | 186000 | 243000 | 2.18 | |||
NU316EM | 80 | 170 | 39 | 256000 | 282000 | 4.45 | |||
NU2316EM | 80 | 170 | 58 | 355000 | 430000 | 6.57 | |||
NU217EM | 85 | 150 | 28 | 167000 | 199000 | 2.11 | |||
NU2217EM | 85 | 150 | 36 | 217000 | 279000 | 2.75 | |||
NU317EM | 85 | 180 | 41 | 291000 | 330000 | 5.26 | |||
NU2317EM | 85 | 180 | 60 | 395000 | 485000 | 7.69 | |||
NU218EM | 90 | 160 | 30 | 182000 | 217000 | 2.6 | |||
NU2218EM | 90 | 160 | 40 | 242000 | 315000 | 3.5 | |||
NU318EM | 90 | 190 | 43 | 315000 | 355000 | 6.1 | |||
NU2318EM | 90 | 190 | 64 | 435000 | 535000 | 9.08 | |||
NU219EM | 95 | 170 | 32 | 220000 | 265000 | 3.17 | |||
NU2219EM | 95 | 170 | 43 | 286000 | 370000 | 4.29 | |||
NU319EM | 95 | 200 | 45 | 335000 | 385000 | 7.13 | |||
NU2319EM | 95 | 200 | 67 | 460000 | 585000 | 10.6 | |||
NU220EM | 100 | 180 | 34 | 249000 | 305000 | 3.81 | |||
NU2220EM | 100 | 180 | 46 | 335000 | 445000 | 5.23 | |||
NU320EM | 100 | 215 | 47 | 380000 | 425000 | 8.63 | |||
NU2320EM | 100 | 215 | 73 | 570000 | 715000 | 13.4 | |||
NU221EM | 105 | 190 | 36 | 262000 | 310000 | 4.58 | |||
NU2221EM | 105 | 190 | 50 | 350000 | 455000 | 6.32 | |||
NU321EM | 105 | 225 | 49 | 425000 | 480000 | 9.84 | |||
NU2321EM | 105 | 225 | 77 | 635000 | 805000 | 15.5 | |||
NU222EM | 110 | 200 | 38 | 293000 | 365000 | 5.37 | |||
NU2222EM | 110 | 200 | 53 | 385000 | 515000 | 7.65 | |||
NU322EM | 110 | 240 | 50 | 450000 | 525000 | 11.8 | |||
NU2322EM | 110 | 240 | 80 | 675000 | 880000 | 18.8 | |||
