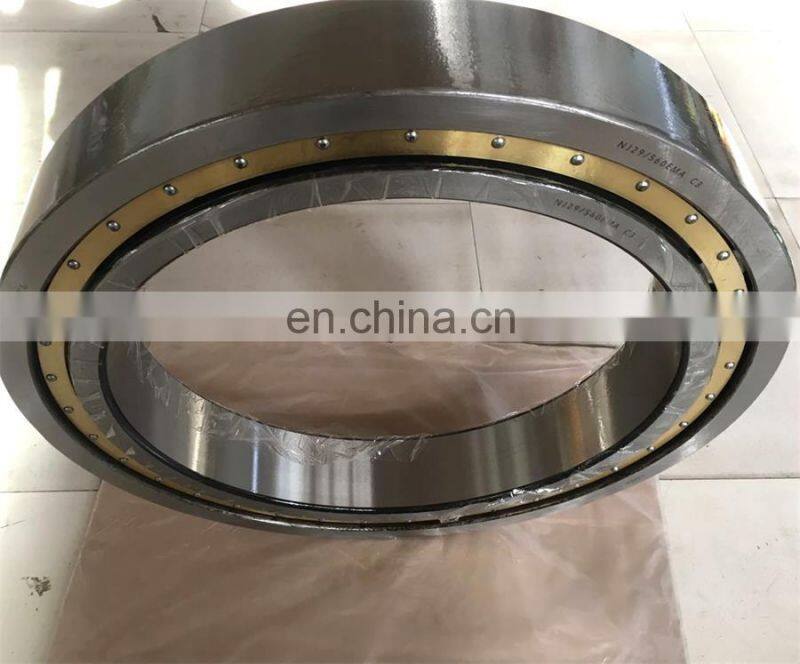

NJ29/560EM ZKL Cylindrical Roller Bearing NJ29/560EMA.C3 NJ29/560M NJ29/560EMA/C3

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

cylindrical roller bearing NJ29/560M NJ29/560EMA NJ29/560MA NJ29/560 N29/560 ECJ ECM M C3 ECP C4 MA

Cylindrical roller bearing are of high load capacity and can operate at high speeds because they use rollers as their rollingelements. They can therefore be used in applications involving heavy radial and impact loading.

The rollers are cylindrical in shape and crowned at the end in order to reduce the stress concentrations. They are also suitablefor applications that require high speed because the rollers are guided by ribs which are either on the outer or inner ring.

structure:NU,N,NJ,NF,NUP,NH,NCL...V,NB,NU...V,NNU,NNCF,NNCL,NNCS,FC,FCD,FCDP...
10 Physical Characteristics:
1) Cylindrical roller bearing can be separated by single row,double rows and four rows.
2) This kind of bearing can be submitted to high radial load and some axial load.
3) The rolling element of cylindrical roller bearing is cylinder,the two ends of the external lines have the corrective slope
which can eliminate the contact stress.
4) NN and NNU design cylindrical roller bearing have high rigid and apply to machines such as millings.

Name	cylindrical roller bearings NJ29/560EMA
ID	560 mm
OD	750 mm
B	112 mm
bearing weight	153 kg
Application	industry machinery Large motors, machine tool spindles, axle shafts, gearboxes, rolling mills, etc.
cage	brass cage
email:	lbc001 at
whats App	+8618753110215

Recommend Products

BEARING SIZE AS FOLLOWING:

Dimensions					Basic load ratings		Bearing Number	Mass
d	D	B	Cr	C0r		kg
400	500	46	565	1150	NU1880M	21.2
	540	65	900	1750	NU1980M	42
	540	82	1350	2850	NU2980EM	57.8
	540	82	1250	2510	NU2980M	55.2
	540	82	1250	2510	NF2980M	52.6
	600	90	1330	2210	NUP1080M	93.6
	600	90	1330	2210	NU1080M	92.5
	600	90	1440	2470	NJ1080	90.6
	600	118	2150	4800	NU2080EM	122
	600	148	2330	4550	NU3080M	153
	650	145	2920	5190	NU2180M	197
	650	200	3760	7170	NU3180M	274

420	520	46	605	1270	NU1884	20.7
	520	75	900	2250	NJ3884M	33.3
	560	65	1080	1950	NJ1984MA	46
	560	82	1180	2600	NU2984M	59.5
	620	90	1440	2490	NU1084M/C3	98
	620	118	2400	4750	NU2084EM	127
	620	150	2850	5450	NF3084EM	162
	700	224	4950	8950	NU3184EM	368

440	540	60	790	1900	NU2888EM	34.5
	600	74	1010	1980	NU1988M	65
	600	95	1670	3550	NJ2988EM	83.5
	600	118	1940	4250	NUP3988EM	106
	650	94	1570	2430	NU1088M	102
	650	122	2450	5000	NU2088EM	146
	720	122	2850	4300	N1188	207
	720	226	5230	9800	NU3188	374

460	580	56	795	1720	N1892M	37.2
	580	72	1030	2350	NJ2892EM	48.7
	620	95	1640	3500	NJ2992	83.4
	620	95	1670	1600	NUP2992	85
	620	95	1670	1600	NU2992	98.3
	680	100	1690	2630	NU1092M	111
	680	128	2700	5450	NU2092EM	166
	680	163	2970	6150	NU3092M	211
	680	163	3300	6340	NU3092EM	211
	760	240	5450	10400	NU3192	467
	760	240	5450	10400	NU3192MA	481
	830	165	4200	6800	NU1292	405
	830	212	4850	8000	NU2292M	515

480	600	56	750	1620	NU1896M	37.5
	600	72	1050	2400	NJ2896EM	46.5
	700	100	1600	2970	NU1096M	128
	700	128	2600	5250	NU2096MA	176
	790	248	5650	10700	NU3196EM	495

500	620	56	795	1700	NF18/500EM	38.5
	620	72	1130	2670	NU28/500EM	48.5
	670	78	1160	2350	NU19/500EM	80
	670	100	1940	4300	NU29/500	101
	670	100	1940	4300	NU29/500F3	102
	670	128	2250	5150	N39/500EM	128
	720	100	1680	3050	NJ10/500	136
	720	128	2850	5900	NU20/500EM	175
	720	167	3210	6970	NU30/500	232
	830	264	6250	12200	NU31/500	602
	920	185	5050	8450	NU12/500M	585
530	650	72	1170	2890	NF28/530	52.2
	710	82	1500	2980	NJ19/530EM	94.5
	710	106	1990	4550	NUP29/530	125
	780	112	2200	4050	NU10/530M	187
	780	145	3650	7360	NU20/530EM	252
	870	272	7250	14500	NU31/530EM	663

560	680	56	810	1830	NJ18/560M	42.5
	680	56	810	1830	NJ18/560MA	44.2
	750	85	1630	3200	NU19/560EM	108
	750	112	2420	5450	NJ29/560	153
	750	112	2490	5600	N29/560	138
	820	115	2250	4200	NU10/560M	215
	820	150	3650	7600	NU20/560EM	289
	1030	206	6850	11000	NU12/560MA	809

600	730	60	860	2000	NU18/600EM	49.3
	730	78	1250	3350	NU28/600EM	68.5
	800	90	1900	3800	NU19/600EM	128
	800	90	1900	3800	NUP19/600EM	135
	800	90	1900	3800	NF19/600EM	130
	800	118	2900	6550	NU29/600E	163
	830	150	3410	7450	NU6/600	237
	870	118	2840	5250	NU10/600	234
	870	155	4180	8000	NU20/600EM	320
	870	200	5390	11000	NU30/600E	412

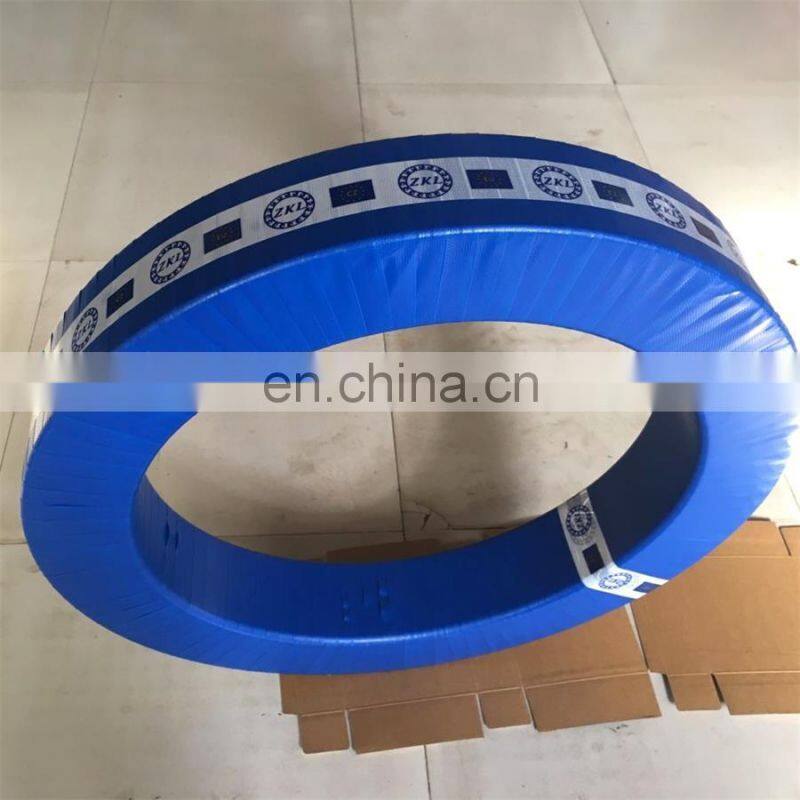

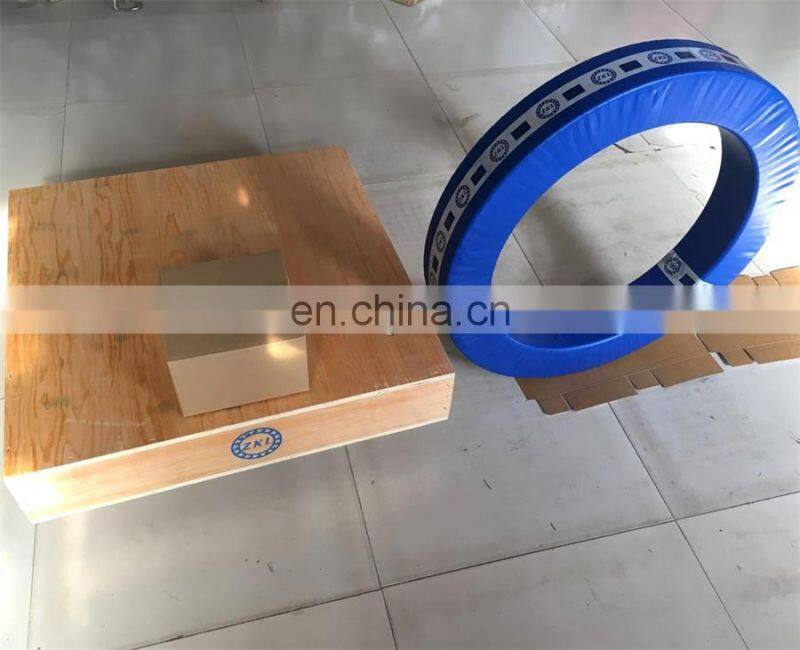

Product packaging

Packing ： 1. Industrial packing 2. Single box +carton +pallets /case 3. According to customers demand Delivery time : 1. Generally after payment: within 3 days . 2. If need produce , about 30 days Payment A less USD1000 , 100% T/T in advance . 1. More USD1000 , 30% T/T in advance , 70%T/T before shipment

Shipping : by sea/by air/by express like EMS FEDEX TNT DHL...

Application

Factory

Company introduction

LANDLION BEARING CO.,LTD is an export-oriented enterprise, specializing in manufacturing and marketing several types of bearings for more than 10 years. We can produce the bearings accordingly to the customers' samples or drawings.LANDLION has a large top brand bearing NSK NTN UBC ASAHI IKO NACHI KOYO in stock.

FAQ

Q: Are you trading company or manufacturer ? A: We are factory and trader . Q: How long is your delivery time? A: Generally it is 1-3 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: What is your terms of payment ? A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment. If you have another question, pls feel free to contact us .
