Home > Products > Angular Contact Ball Bearing > 5212 NTN Angular Contact Ball Bearing 5212W 5212J
5212 NTN Angular Contact Ball Bearing 5212W 5212J
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
7011 CD/P4A Precision Angular Contact Ball Bearing 55x90x18 mm
-
QJ304MA QJ304-MPA Four Point Contact Bearings 20x52x15mm
-
5205 Angular Contact Ball Bearing 5205-2RS 5205-ZZ
-
BDZ38-1J Wheel Hub Bearing BDZ38-1 Double Row Ball Bearing 38x68x26mm
-
VEB40 /NS 7CE Spindle Precision Machine Tool Bearing 71908CE/HP4 71908
-
VEX45 7CE1 Angular Contact Ball Bearings HS7009C.T.P4S. Spindle Bearing 7009 P4
Product Description
Product Description

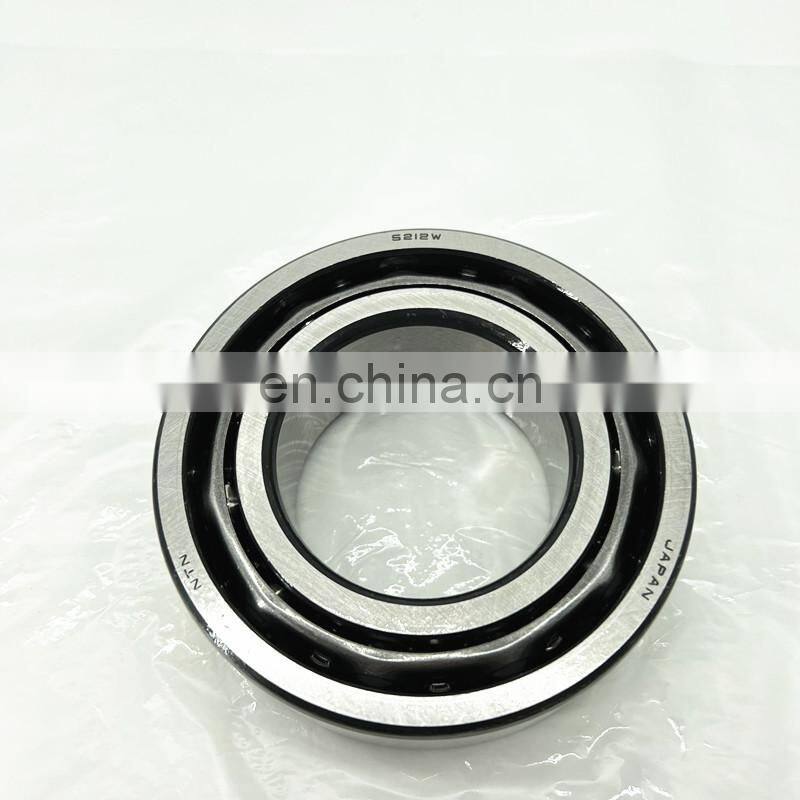

5212W angular contact ball bearing 5212J 5212A
The double-row angular contact ball bearing Features
* angular ball bearing with two rows of balls
* suitable for high radial loads and axial loads in both directions
* suitable for high running accuracy, quiet running and high speeds
* cage material: plastic; the low weight and the elasticity of the plastic have a positive effect on the sliding and emergency
running properties as well as the shock resistance; suitable for quiet running
* seal: open (without seal); for higher speeds than with sealed ball bearings and easy relubrication
* good fixed bearing property, but can also be used as a floating bearing, each in both directions
* manufacturers of bearings, such as , KOYO, NSK, , SNR, etc. assign different suffixes for their characteristics, for
better orientation take note of the comparison table of bearings
* suitable for high radial loads and axial loads in both directions
* suitable for high running accuracy, quiet running and high speeds
* cage material: plastic; the low weight and the elasticity of the plastic have a positive effect on the sliding and emergency
running properties as well as the shock resistance; suitable for quiet running
* seal: open (without seal); for higher speeds than with sealed ball bearings and easy relubrication
* good fixed bearing property, but can also be used as a floating bearing, each in both directions
* manufacturers of bearings, such as , KOYO, NSK, , SNR, etc. assign different suffixes for their characteristics, for
better orientation take note of the comparison table of bearings
Double row design for higher load capacity. The double-row angular contact ball bearing 5210-TN is ideal for high combined loads
from the radial and axial directions. Main dimensions according to DIN 628-3.
from the radial and axial directions. Main dimensions according to DIN 628-3.
Common Applications:
* Machine tools* Gearboxes* Pumps* Printing machinery* Motors* CNC machinery
* Machine tools* Gearboxes* Pumps* Printing machinery* Motors* CNC machinery
Type | angular contact ball bearing 5212W 5212J |
nside Diameter (mm): | 60 |
Outside Diameter (mm): | 110 |
Width (mm): | 36.5 |
Rows Of Balls: | double row |
Seal: | open |
Ring Material: | Chrome Steel |
Rolling Element Material: | Chrome Steel |
Cage Material: | Plastic, steel ,brass |
Magnetic: | yes |
Product weight: | 1.4Kg |
angular contact ball bearing 5212W 5212J
Related Products
New Model | Old Model | ID(mm) | OD(mm) | Width(mm) | Weight(KG) |
5200 | 3200 | 10 | 30 | 14.3 | 0.049 |
5201 | 3201 | 12 | 32 | 15.9 | 0.057 |
5202 | 3202 | 15 | 35 | 15.9 | 0.064 |
5203 | 3203 | 17 | 40 | 17.5 | 0.096 |
5204 | 3204 | 20 | 47 | 20.6 | 0.153 |
5205 | 3205 | 25 | 52 | 20.6 | 0.175 |
5206 | 3206 | 30 | 60 | 23.8 | 0.286 |
5207 | 3207 | 35 | 72 | 27 | 0.436 |
5208 | 3208 | 40 | 80 | 30.2 | 0.59 |
5209 | 3209 | 45 | 85 | 30.2 | 0.64 |
5210 | 3210 | 50 | 90 | 30.2 | 0.689 |
5211 | 3211 | 55 | 100 | 33.3 | 0.986 |
5212 | 3212 | 60 | 110 | 38.1 | 1.27 |
5213 | 3213 | 65 | 120 | 39.7 | 1.57 |
5214 | 3214 | 70 | 125 | 41.3 | 1.8 |
5215 | 3215 | 75 | 130 | 44.4 | 1.9 |
5216 | 3216 | 80 | 140 | 49.2 | 2.39 |
5217 | 3217 | 85 | 150 | 44.4 | 3.06 |
5218 | 3218 | 90 | 160 | 52.4 | 3.73 |
5219 | 3219 | 95 | 170 | 55.6 | 5.1 |
5220 | 3220 | 100 | 180 | 60.3 | 6.14 |
5221 | 3221 | 105 | 190 | 65.1 | 7.4 |
5222 | 3222 | 110 | 200 | 69.8 | 9.2 |
Main Products
Certifications
Product packaging
Packing ：
1. Industrial packing
2. Single box +carton +pallets /case
3. According to customers demand
Delivery time :
1. Generally after payment: within 3 days .
2. If need produce , about 30 days
Payment
A less USD1000 , 100% T/T in advance .
1. More USD1000 , 30% T/T in advance , 70%T/T before shipment
Shipping : by sea/by air/by express like EMS FEDEX TNT DHL...
Application
Factory
Company introduction
LANDLION BEARING CO.,LTD is an export-oriented enterprise, specializing in manufacturing and marketing several types of bearings for more than 10 years. We can produce the bearings accordingly to the customers' samples or drawings.LANDLION has a large top brand bearing NSK NTN UBC ASAHI IKO NACHI KOYO in stock.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory and trader .
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us .
