KD065XP0 Kaydon Section Thin Ball Bearing KD065XPO RBC Bearing
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
5200-2RS Double Row 5200 Angular Contact Ball Bearing 52002rs
-
KD040AR0 Kaydon Section Thin Ball Bearing KD040AR0 RBC Bearing
-
Kaydon Bearings KAA10XL0 KAA Series Four-Point Contact Bearing - 1.0000 in Bore, 1.3750 in OD, 0.1875 in Width, Open
-
5212 NTN Angular Contact Ball Bearing 5212W 5212J
-
7011 CD/P4A Precision Angular Contact Ball Bearing 55x90x18 mm
-
QJ304MA QJ304-MPA Four Point Contact Bearings 20x52x15mm
Product Description
Related Products
Product Description
precision equal section thin ball bearing KD065XP0 KD065CP0 KD065AR0

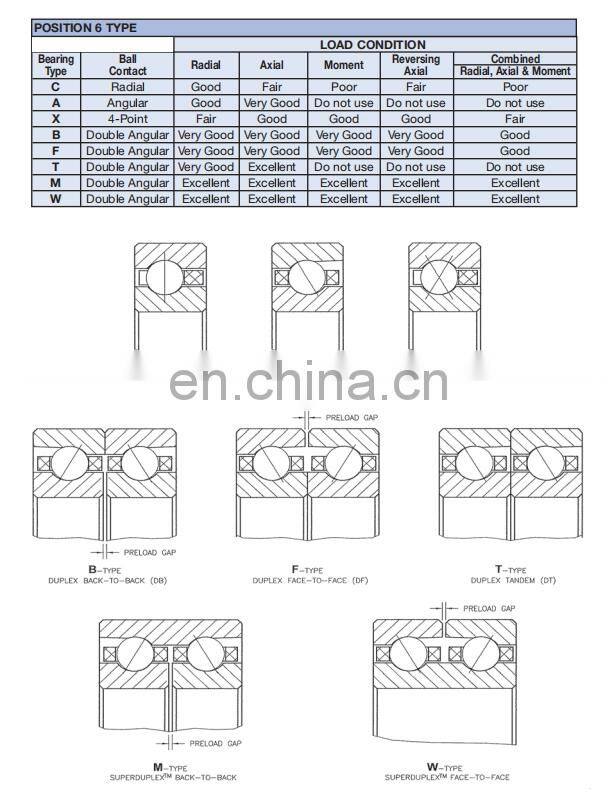

A deep groove bearing with reduced shoulder on one side of inner or outer race ball path. Snapover assembly permits use of a one-piece circular pocket ring separator and greater ball complement. These bearings will accept radial load and single direction thrust load and are normally used in conjunction with another bearing of similar construction. Type A bearings require the application of thrust to establish contact angle.
Type | precision equal section thin section ball bearing |
inside Diameter (mm): | 165.1 |
Outside Diameter (mm): | 190.5 |
Width (mm): | 12.7 |
Rows Of Balls: | single row |
Seal: | open |
Ring Material: | Chrome Steel /GCr15SiMn |
Rolling Element Material: | Chrome Steel/GCr15SiMn |

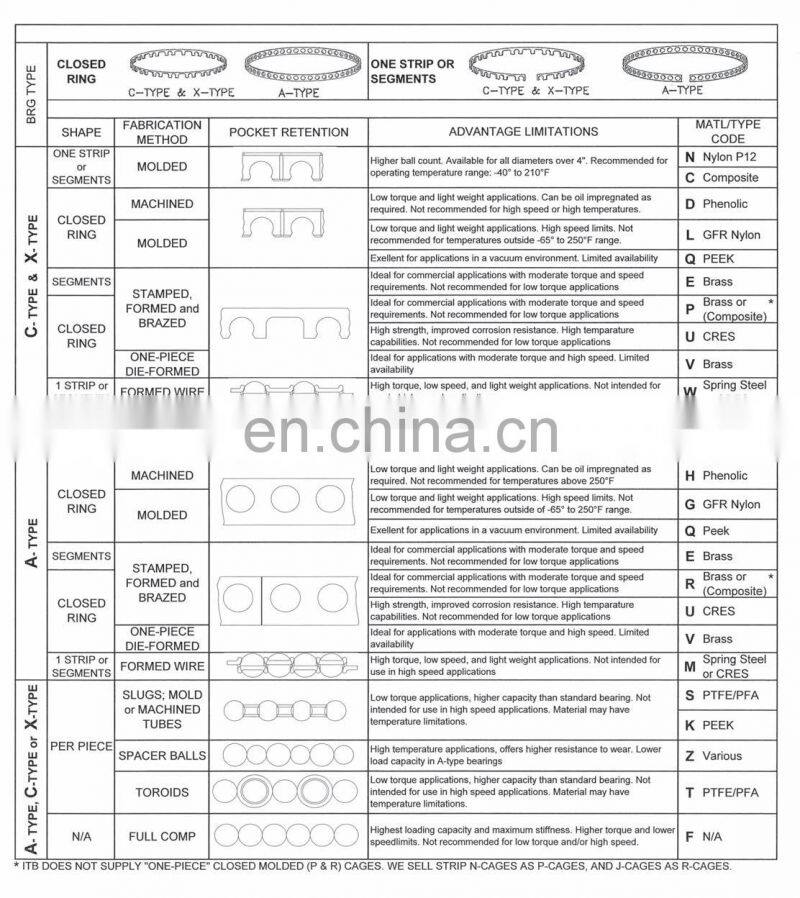

Cage Material: | Plastic, steel ,brass |
Magnetic: | yes |
Product weight: | 0.55 |

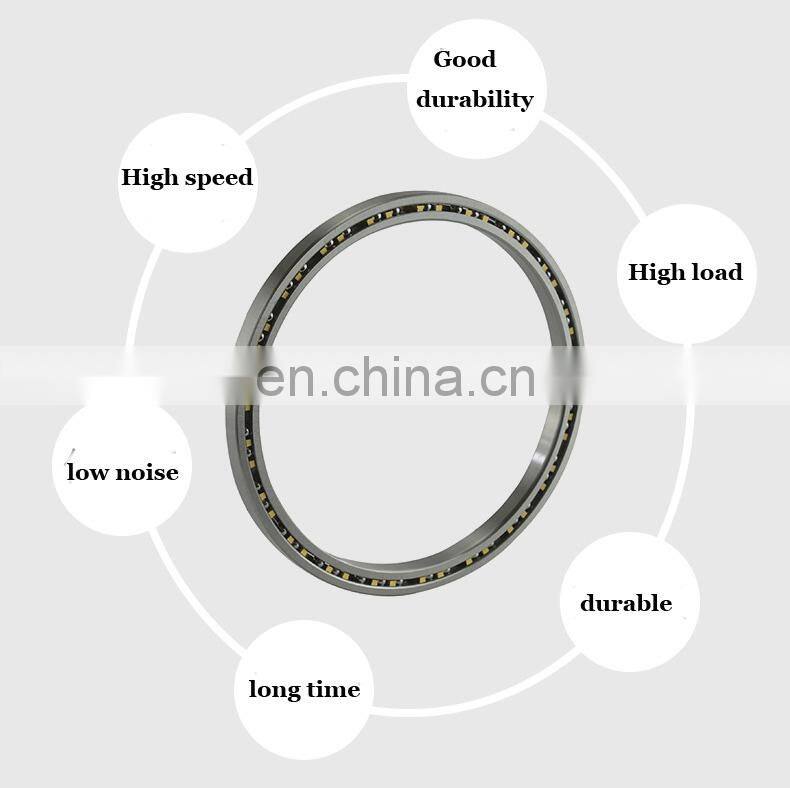

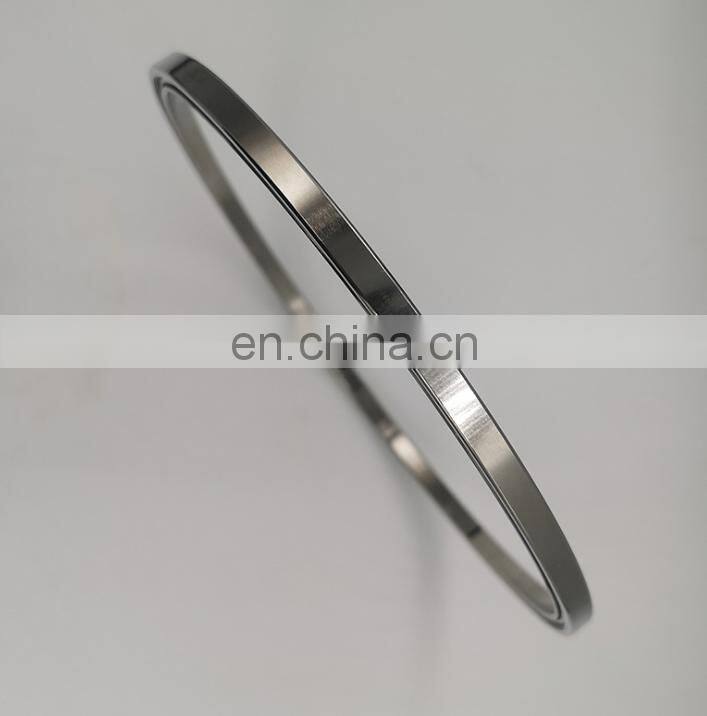

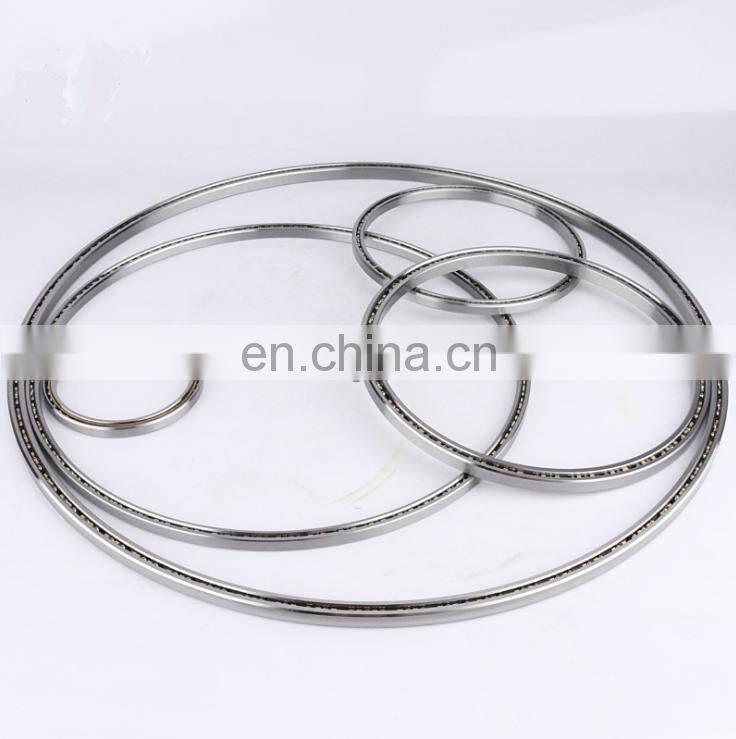

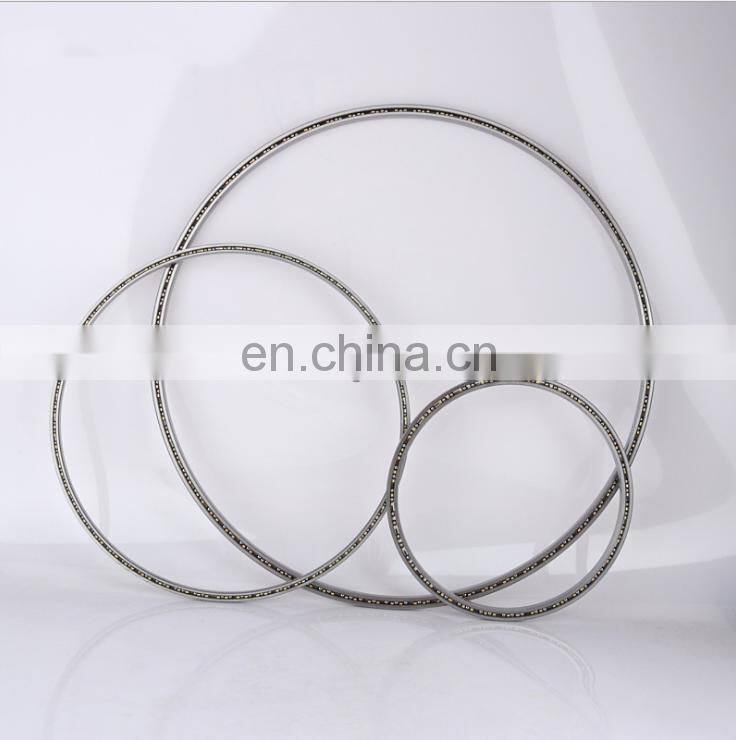

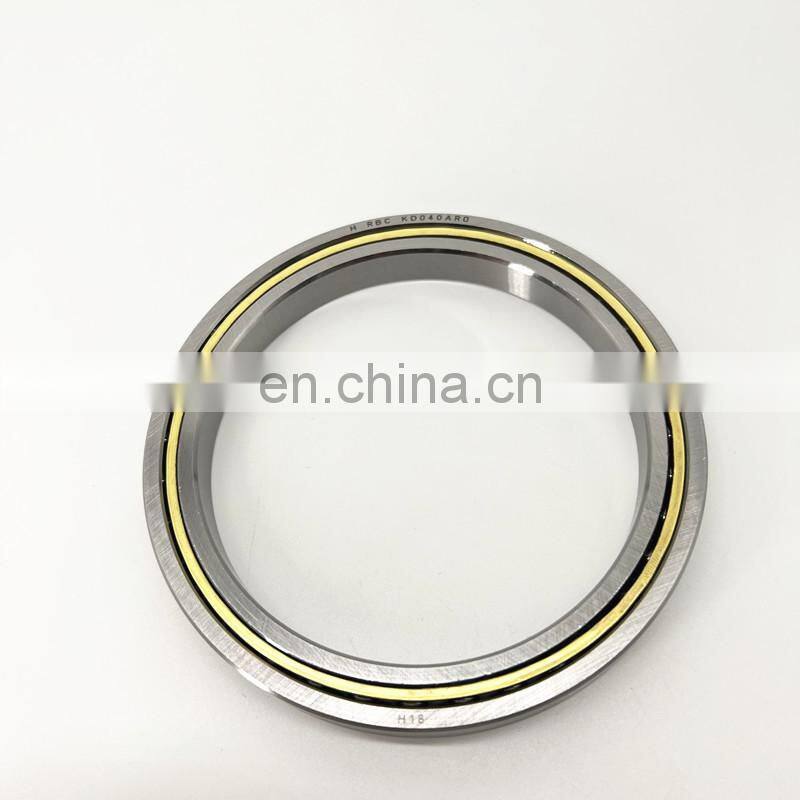

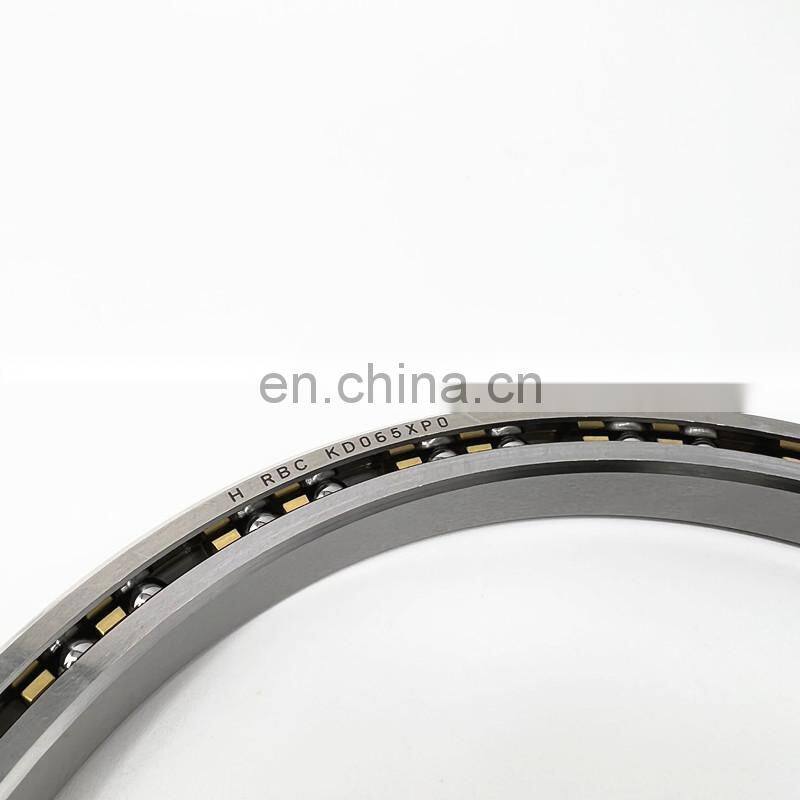

precision equal section thin section ball bearing KD065XP0 picture show
BEARING | DIMENSION | BALLS | WEIGHT | EXCHANGE NUMBER | ||||||
d | D | B | KAYDON | SILVERTHIN | ||||||
Kg | ||||||||||
PAAA10 | 25.4 | 34.925 | 4.763 | 28 | 0.014 | KAA10AG0 | SAA10AG0 | |||
PAAA15 | 38.1 | 47.625 | 4.763 | 40 | 0.018 | KAA15AG0 | SAA15AG0 | |||
PAA020 | 50.8 | 63.5 | 6.35 | 36 | 0.045 | KA020AR0 | SA020AR0 | |||
PAB020 | 50.8 | 66.675 | 7.938 | 31 | 0.073 | KB020AR0 | SB020AR0 | |||
PAA025 | 63.5 | 76.2 | 6.35 | 44 | 0.059 | KA025AR0 | SA025AR0 | |||
PAB025 | 63.5 | 79.375 | 7.938 | 38 | 0.091 | KB025AR0 | SB025AR0 | |||
PAA030 | 76.2 | 88.9 | 6.35 | 52 | 0.068 | KA030AR0 | SA030AR0 | |||
PAB030 | 76.2 | 92.075 | 7.938 | 44 | 0.109 | KB030AR0 | SB030AR0 | |||
PAA035 | 88.9 | 101.6 | 6.35 | 60 | 0.082 | KA035AR0 | SA035AR0 | |||
PAB035 | 88.9 | 104.775 | 7.938 | 51 | 0.122 | KB035AR0 | SB035AR0 | |||
PAA040 | 101.6 | 114.3 | 6.35 | 68 | 0.086 | KA040AR0 | SA040AR0 | |||
PAB040 | 101.6 | 117.475 | 7.938 | 58 | 0.136 | KB040AR0 | SB040AR0 | |||
PAC040 | 101.6 | 120.65 | 9.525 | 49 | 0.204 | KC040AR0 | SC040AR0 | |||
PAD040 | 101.6 | 127 | 12.7 | 36 | 0.354 | KD040AR0 | SD040AR0 | |||
PAF040 | 101.6 | 139.7 | 19.05 | 26 | 0.862 | KF040AR0 | SF040AR0 | |||
PAG040 | 101.6 | 152.4 | 25.4 | 20 | 1.633 | KG040AR0 | SG040AR0 | |||
PAA042 | 107.95 | 120.65 | 6.35 | 72 | 0.091 | KA042AR0 | SA042AR0 | |||
PAB042 | 107.95 | 123.825 | 7.938 | 61 | 0.141 | KB042AR0 | SB042AR0 | |||
PAC042 | 107.95 | 127 | 9.525 | 52 | 0.213 | KC042AR0 | SC042AR0 | |||
PAD042 | 107.95 | 133.35 | 12.7 | 38 | 0.376 | KD042AR0 | SD042AR0 | |||
PAF042 | 107.95 | 146.05 | 19.05 | 27 | 0.907 | KF042AR0 | SF042AR0 | |||
PAG042 | 107.95 | 158.75 | 25.4 | 21 | 1.724 | KG042AR0 | SG042AR0 | |||
PAA045 | 114.3 | 127 | 6.35 | 76 | 0.1 | KA045AR0 | SA045AR0 | |||
PAB045 | 114.3 | 130.175 | 7.938 | 64 | 0.15 | KB045AR0 | SB045AR0 | |||
PAC045 | 114.3 | 133.35 | 9.525 | 55 | 0.218 | KC045AR0 | SC045AR0 | |||
PAD045 | 114.3 | 139.7 | 12.7 | 40 | 0.399 | KD045AR0 | SD045AR0 | |||
PAF045 | 114.3 | 152.4 | 19.05 | 29 | 0.953 | KF045AR0 | SF045AR0 | |||
PAG045 | 114.3 | 165.1 | 25.4 | 22 | 1.814 | KG045AR0 | SG045AR0 | |||
PAA047 | 120.65 | 133.35 | 6.35 | 80 | 0.104 | KA047AR0 | SA047AR0 | |||
PAB047 | 120.65 | 136.525 | 7.938 | 68 | 0.154 | KB047AR0 | SB047AR0 | |||
PAC047 | 120.65 | 139.7 | 9.525 | 58 | 0.227 | KC047AR0 | SC047AR0 | |||
PAD047 | 120.65 | 146.05 | 12.7 | 42 | 0.426 | KD047AR0 | SD047AR0 | |||
PAF047 | 120.65 | 158.75 | 19.05 | 30 | 0.998 | KF047ARO | SF047AR0 | |||
PAG047 | 120.65 | 171.45 | 25.4 | 23 | 1.86 | KG047AR0 | SG047AR0 | |||
PAA050 | 127 | 139.7 | 6.35 | 84 | 0.109 | KA050AR0 | SA050AR0 | |||
PAB050 | 127 | 142.875 | 7.938 | 71 | 0.172 | KB050AR0 | SB050AR0 | |||
PAC050 | 127 | 146.05 | 9.525 | 61 | 0.263 | KC050AR0 | SC050AR0 | |||
PAD050 | 127 | 152.4 | 12.7 | 44 | 0.454 | KD050AR0 | SD050AR0 | |||
PAF050 | 127 | 165.1 | 19.05 | 31 | 1.043 | KF050AR0 | SF050AR0 | |||
PAG050 | 127 | 177.8 | 25.4 | 24 | 1.95 | KG050AR0 | SG050AR0 | |||
PAA055 | 139.7 | 152.4 | 6.35 | 92 | 0.113 | KA055AR0 | SA055AR0 | |||
PAB055 | 139.7 | 155.575 | 7.938 | 78 | 0.186 | KB055AR0 | SB055AR0 | |||
PAC055 | 139.7 | 158.75 | 9.525 | 66 | 0.268 | KC055AR0 | SC055AR0 | |||
PAD055 | 139.7 | 165.1 | 12.7 | 48 | 0.481 | KD055AR0 | SD055AR0 | |||
PAF055 | 139.7 | 177.8 | 19.05 | 34 | 1.134 | KF055AR0 | SF055AR0 | |||
PAG055 | 139.7 | 190.5 | 25.4 | 26 | 2.132 | KG055AR0 | SG055AR0 | |||
PAA060 | 152.4 | 165.1 | 6.35 | 100 | 0.127 | KA060AR0 | SA060AR0 | |||
PAB060 | 152.4 | 168.275 | 7.938 | 85 | 0.2 | KB060AR0 | SB060AR0 | |||
PAC060 | 152.4 | 171.45 | 9.525 | 72 | 0.286 | KC060AR0 | SC060AR0 | |||
PAD060 | 152.4 | 177.8 | 12.7 | 52 | 0.526 | KD060AR0 | SD060AR0 | |||
PAF060 | 152.4 | 190.5 | 19.05 | 37 | 1.225 | KF060AR0 | SF060AR0 | |||
PAG060 | 152.4 | 203.2 | 25.4 | 28 | 2.313 | KG060AR0 | SG060AR0 | |||
No | number | dimension | Type |
1 | BA08711012 | 87x110x12 | Robot bearings |
2 | BA09011513 | 90x115x13 | Robot bearings |
3 | BA09712013 | 97x120x13 | Robot bearings |
4 | BA11514515 | 115x145x15 | Robot bearings |
5 | BA11514516 | 115x145x16 | Robot bearings |
6 | BA136-1 | 136x170x19.5 | Robot bearings |
7 | BA140-1 | 140x180x22 | Robot bearings |
8 | BA14417415 | 144x174x15.5 | Robot bearings |
9 | BA14517516 | 145x175x16 | Robot bearings |
10 | BA14518522 | 145x185x22 | Robot bearings |
11 | BA151 -1 | 151x179x19.5 | Robot bearings |
12 | BA15518516 | 155x185x16 | Robot bearings |
13 | BA15520020 | 155x200x20 | Robot bearings |
14 | BA15919116 | 159x191x16.3 | Robot bearings |
15 | BA16520020 | 165x200x20 | Robot bearings |
16 | BA16820520 | 168x205x20 | Robot bearings |
17 | BA18221417.5 | 182x214x17.5 | Robot bearings |
18 | BA18221417.8 | 182x214x17.8 | Robot bearings |
19 | BAHB311443B | xx | Robot bearings |
20 | BD130-2 | 130x166x38 | Robot bearings |
21 | CRB 40040 | 400x510x40 | Robot bearings |
22 | CRBC 11020/P5 | 110x160x20 | Robot bearings |
23 | KA020ARO | 50.80x63.500x6.35 | Robot bearings |
24 | KA025ARO | 63.50x76.200x6.35 | Robot bearings |
25 | KA030ARO | 76.20x22.900x6.35 | Robot bearings |
26 | KA035ARO | 88.90x101.600x6.35 | Robot bearings |
27 | KA040ARO | 101.60x114.300x6.35 | Robot bearings |
28 | KA042ARO | 107.95x120.650x6.35 | Robot bearings |
29 | KA045ARO | 114.30x127.000x6.35 | Robot bearings |
30 | KA047ARO | 120.65x133.350x6.35 | Robot bearings |
31 | KA050ARO | 127.00x139.700x6.35 | Robot bearings |
32 | KA055ARO | 139.70x152.400x6.35 | Robot bearings |
33 | KA060ARO | 152.40x165.100x6.35 | Robot bearings |
34 | KA065ARO | 165.10x177.800x6.35 | Robot bearings |
35 | KA070ARO | 177.80x190.500x6.35 | Robot bearings |
36 | KA075ARO | 190.50x203.200x6.35 | Robot bearings |
37 | KA080ARO | 203.20x215.900x6.35 | Robot bearings |
38 | KA090ARO | 228.60x241.300x6.35 | Robot bearings |
39 | KA100ARO | 254.00x266.700x6.35 | Robot bearings |
40 | KA110ARO | 279.40x292.100x6.35 | Robot bearings |
41 | KA120ARO | 304.80x317.500x6.35 | Robot bearings |
42 | KAA10AGO | 25.40x34.925x4.673 | Robot bearings |
43 | KAA15AGO | 31.80x47.625x4.673 | Robot bearings |
44 | KAA17AGO | 44.45x53.975x4.673 | Robot bearings |
45 | KB020ARO | 50.80x66.675x7.938 | Robot bearings |
46 | KB025ARO | 63.50x79.375x7.938 | Robot bearings |
47 | KB030ARO | 76.20x92.075x7.938 | Robot bearings |
48 | KB035ARO | 88.90x104.775x7.938 | Robot bearings |
49 | KB040ARO | 101.60x117.475x7.938 | Robot bearings |
50 | KB042ARO | 107.95x123.825x7.938 | Robot bearings |
Certifications

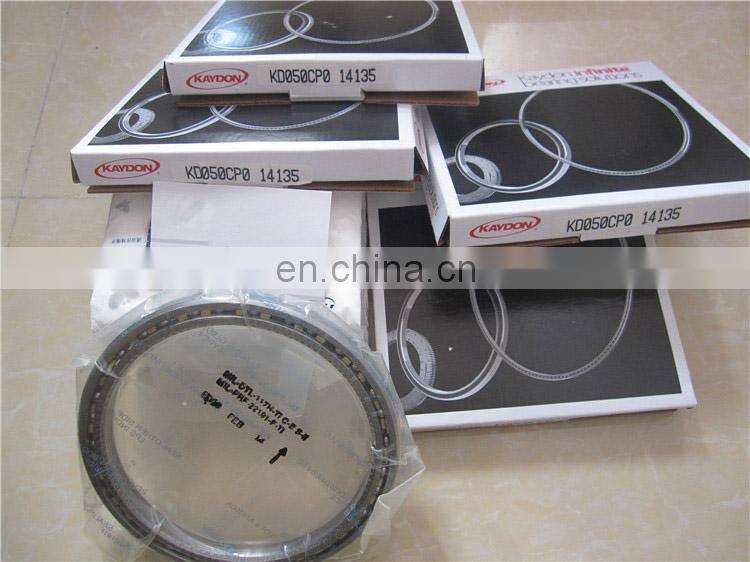

Product packaging
Packing ：
1. Industrial packing
2. Single box +carton +pallets /case
3. According to customers demand
Delivery time :
1. Generally after payment: within 3 days .
2. If need produce , about 30 days
Payment
A less USD1000 , 100% T/T in advance .
1. More USD1000 , 30% T/T in advance , 70%T/T before shipment
Shipping : by sea/by air/by express like EMS FEDEX TNT DHL...
Application
Factory
Company introduction
LANDLION BEARING CO.,LTD is an export-oriented enterprise, specializing in manufacturing and marketing several types of bearings for more than 10 years. We can produce the bearings accordingly to the customers' samples or drawings.LANDLION has a large top brand bearing NSK NTN UBC ASAHI IKO NACHI KOYO in stock.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory and trader .
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us .
