High Precision Acrylic Cutting Machine Highlight Mini Words Cutting for LED Sign 15mm Thick Aluminum Cnc Cutting Machine

High precision Acrylic Cutting Machine highlight mini words cutting for LED sign 15mm thick aluminum cnc cutting machine

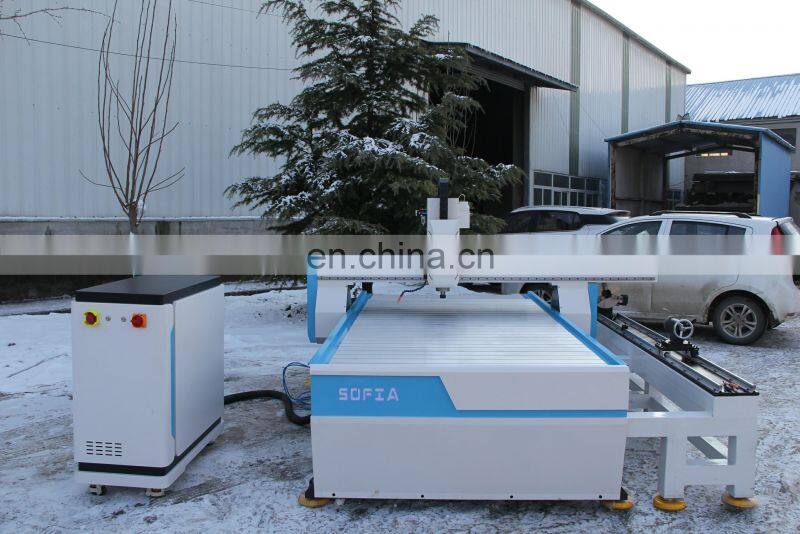

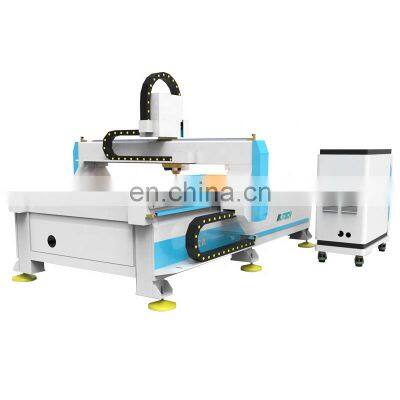

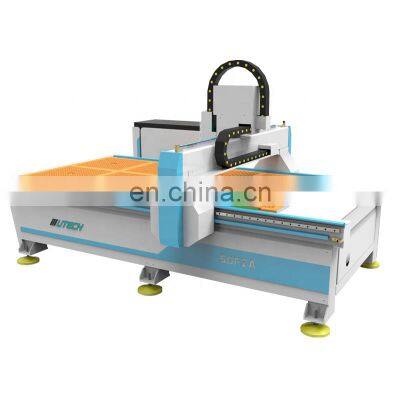

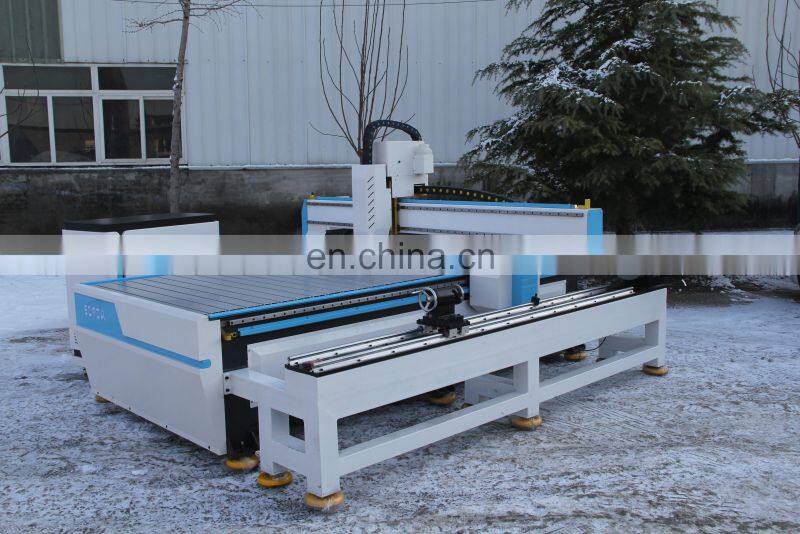

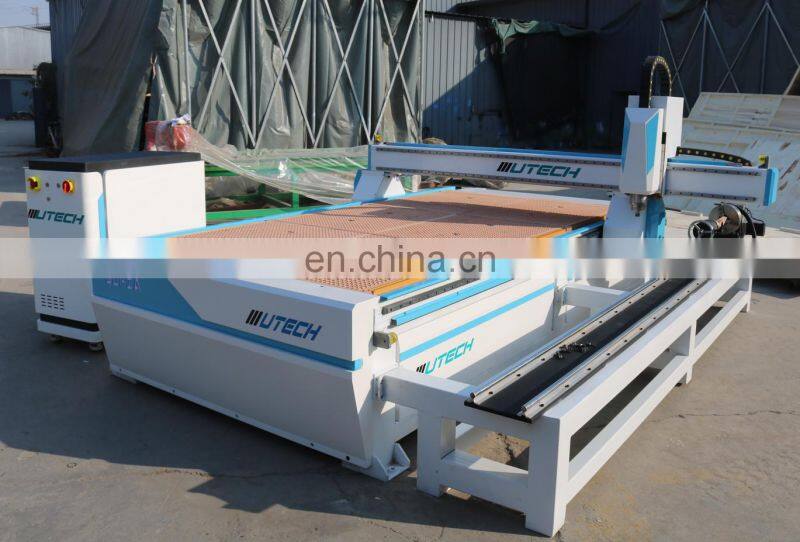

This kind of machine belong to UTECH SOFIA Series, standard machine with 1325 working size, T-slot table, side rotary attachment, dont need adjust Z axis. When delivery, need dismantle rotary axis. We sold many machine to overseas similar as this, we'll adjust machine structure and circuit, for helping you easy install and using.

Standard machine details:

(1) Working area: 1300*2500*200mm

(2) Spindle: 5.5kw water cooled spindle

(3) Control system: Mach3 4axis controller (could support rotary axis)

(4) Drive system: Whole machine with five sets stepper motor&driver+stepper reducer structure

(5) Rotary: 250*2500mm

(6) Transmission: Gear rack transmission+TBI ball screw

(7) Whole machine with PMI linear guide rail+Flange slider

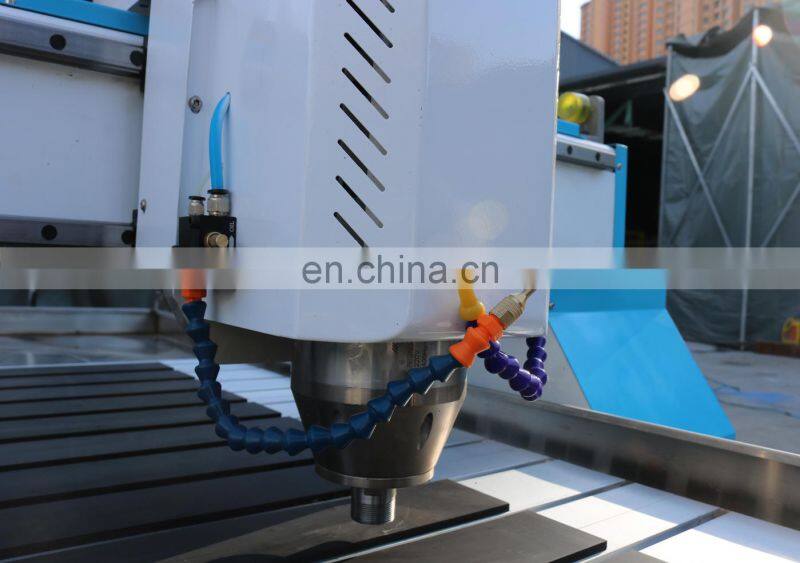

(8) Oil mist cooling system for helping you processing metal materials
(9) French Schneider original electronic components.

(10) Table: T-slot table+PVC

According to your material and thickness, we'll share proper sugestions with you, machine design and configurations all could be customized, such as DSP A18S controller, vacuum table+vacuum pump, roller, other size rotary diameter and length, etc.

If you dont know how to choose a proper machine for yourself or your customer, just tell me your main industry, material and thickness. UTECH team will provide all things with you.

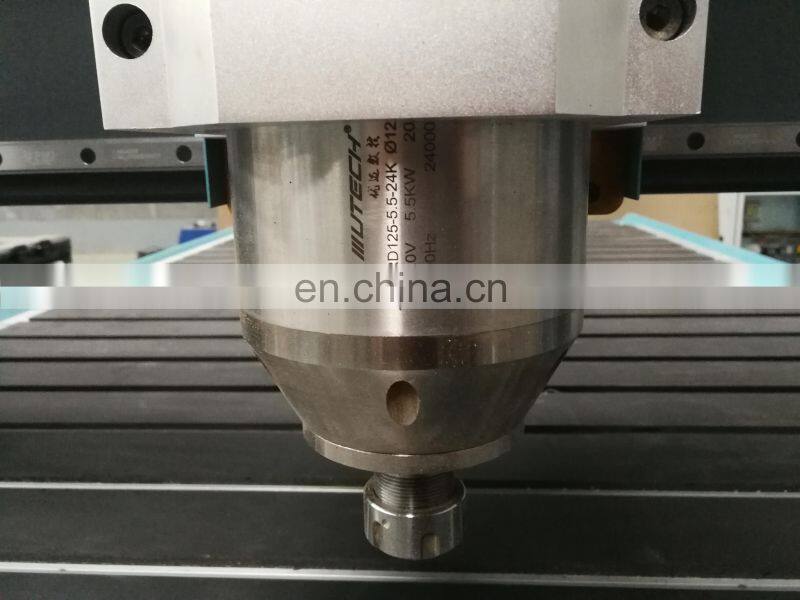

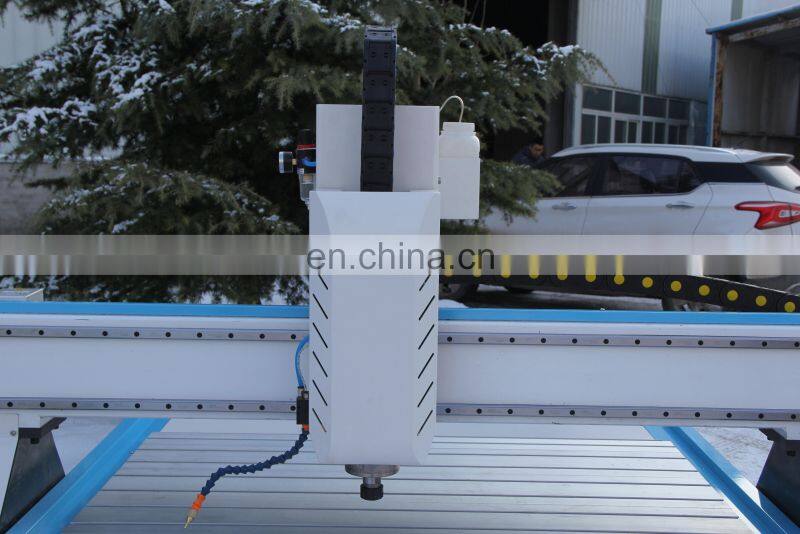

This machine is equipped with 5.5kw water cooled spindle and ER25 cutter, diameter of 125mm, much suitable for cutting thick wood/MDF/aluminum and other hard and thick materials. Bullet design is stronger and no noise. This precision spindle requires no maintenance, uses industry standard ER collects. Fully programmable speeds from 18000 to 24000RPM, and comes complete with pneumatically retractable vacuum hood.

First, For the choice of hand piece, we choose T6061/6063 aviation aluminum alloy as the base material. Through the precision processing of CNC Processing Center, we finished our finished parts. Second, the high requirement assembly process ensures the precision of the product.

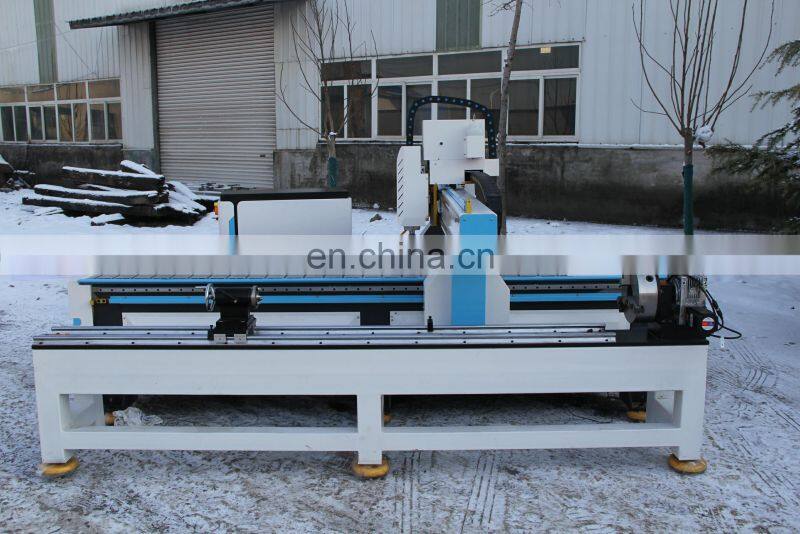

Standard machine with side attachment type, this type dont need highten Z axis, also could choose the other type which be put on machine table or connect with table via a USB line.

Rotary's length and diameter could be customized, this one with 250*2500mm.

Much suitable for processing round and square materials.

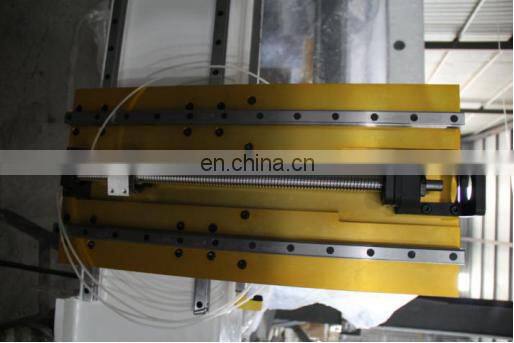

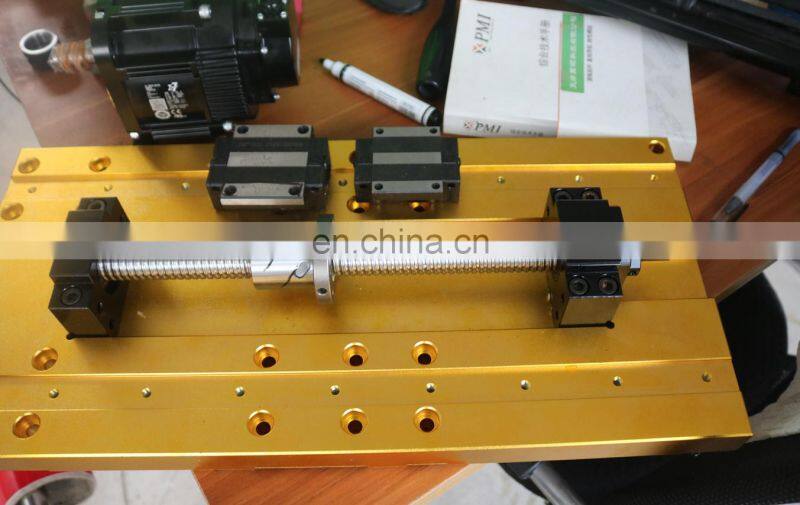

TBI High-Precision Ball-screw Transmission (Taiwan)

XY axis by precision 1.25 module helical rack gear.

Helical teeth gears provide continuous engagement along the tooth length and are often quieter and more efficient than straight tooth gears and also offer higher loading for same rack width. Helical tooth gears resemble spur gears in the plane of rotation but include teeth that are twisted along a helical path in the axial direction.

Whole machine with PMI Linear guide+high assembly Flange slider.
(1) High positioning accuracy, high repeatability.
(2) Low frictional resistance, high precision maintained for the long period.
(3) High rigidity with four-way load design.
(4) Suitable for high-speed operation.
(5) Easy installation with interchangeability.

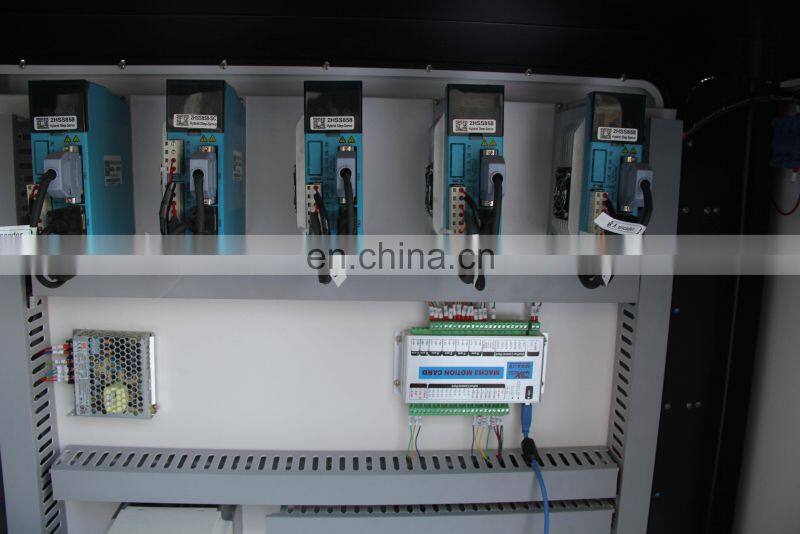

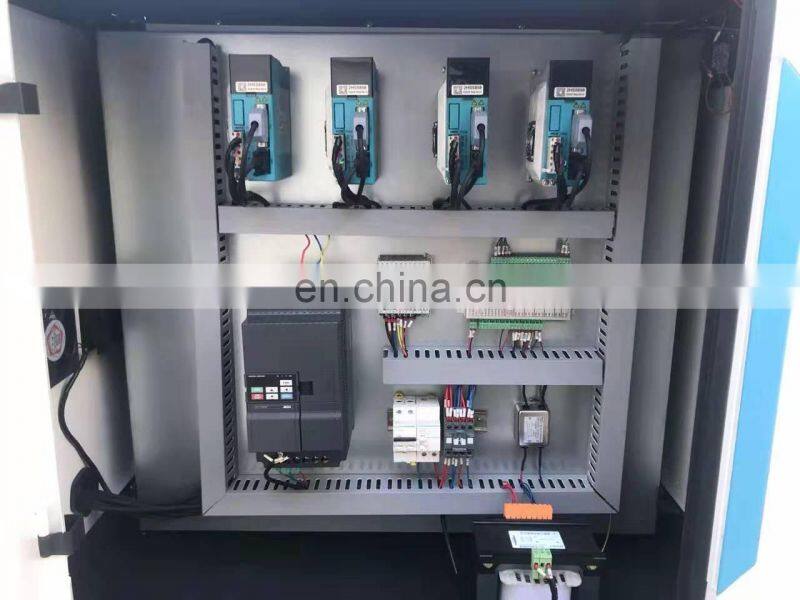

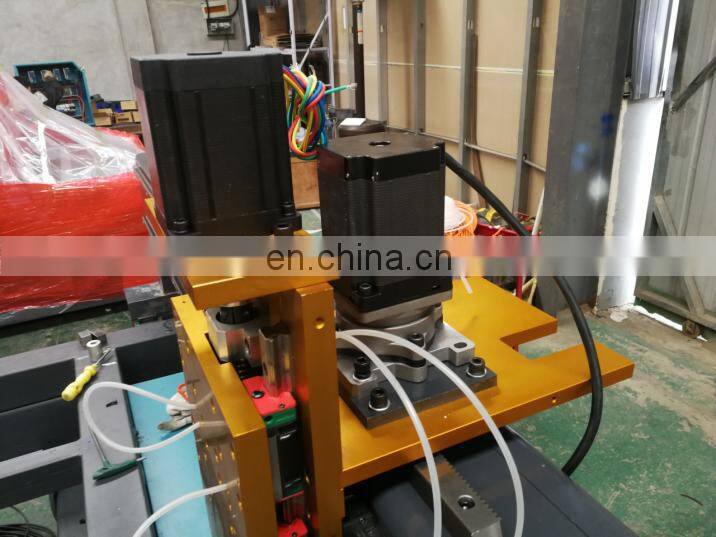

Standard machine with five sets stepper motor&driver, hybrid servo and AC servo are optional, accoring to your work and request of speed, we'll share proper suggestions with you. (photo is hybrid servo.)

The stepper motors are installed on all axes to ensure precise positioning of the gantry and the spindle in accordance with a predetermined program at high speed. Stepper motors are well proven high degree of reliability.

Patent design 1:4 gear reducer install on the driving motor, makes the motor is more powerful, and having a long time service life.

Stepper motor is match with stepper reducer 1:4, hybrid servo and AC servo are match with QZ/SHIMPO reducer 1:5/1:10.

It is composed of aluminum profiles, and the workpiece to be engraved is fixed on the table using some clamp device, so that it can be arbitrarily fixed according to the size and thickness of the workpiece. Such a countertop saves costs, but it takes time to fix, it costs more people, and the production efficiency is low. For materials that cannot be adsorbed, such as copper and aluminum, you must choose an aluminum profile table.

Mach3 turns a typical computer into a CNC machine controller. It is very rich in features and provides a great value to those needing a CNC control package. Mach3 works on most Windows PC's to control the motion of motors (stepper & servo) by processing G-Code. While comprising many advanced features, it is the most intuitive CNC control software available. Mach3 is customizable and has been used for many applications with numerous types of hardware.

Low noise, high efficiency and simple operation.Suitable for lubrication of machine tools, engraving machines, gear, rack, guide rail, etc., no manual operation, timed and quantitative automatic lubrication.

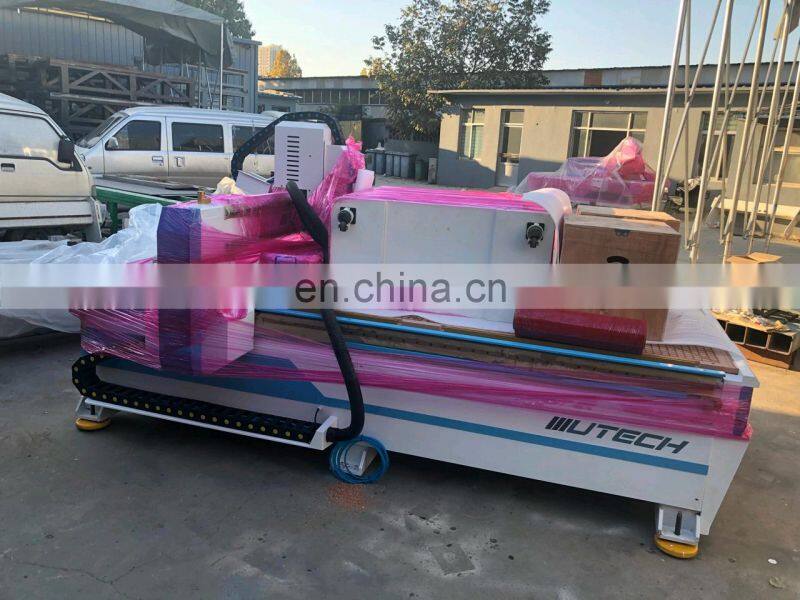

Packing:

1/ If machine delivery via LCL, then would packed with wrapping film, EPE foam, and standard export plywood box.
2/ If machine delivery via FCL, then dont need wood box, would packed with warpping film and EPE foam.

Shipping:

We support machine delivery via express, air transportation, land transportation and sea transportation.
1/ Such as some small machine, Mini CNC Router or Small CO2 Laser Machine and Fiber Laser Marking Machine, usually delivery via
express and air transportation.
2/ If you wanna us help you delivery to domestic warehouse or Russia, Kazakhstan etc, usually delivery via land transportation.
3/ Large machine or some countries where shipping is more convenient, usually suggest choose sea transportation.
You can choose any way you'd prefer, we also will give you some proper suggestions.
